NAM30V1TA453 ROOM AIR CONDITIONER

Products

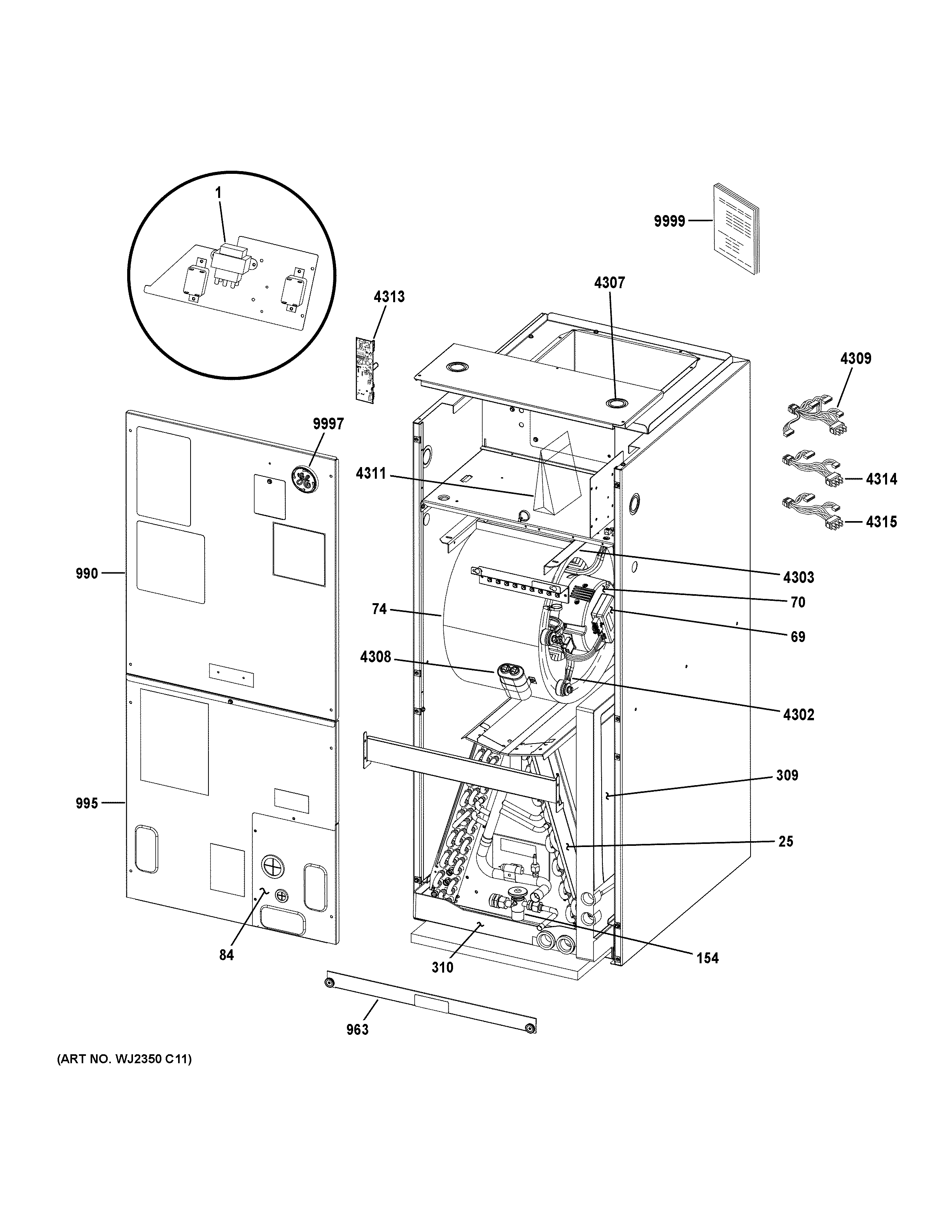

PositionProduct
1TRANSFORMER 208/240V PRI, 24V-(CTO)
25ASSY-REP COIL CBA25UH/V-030-(CTO)
69620605-17 CONTROL CBA25UHV030
70107598-01 MOTOR-BLOWER 1/2 HP VS 16PIN
74BLWR HSG ASSY 10X8R 4 HOLE MOUNT-(CTO)
84ASSY-REP PART PATCH PL (BCE5M)-(CTO)
154104110-01 VALVE-TXV (1.5-2.5) (R410A)
309REPL DRAIN PAN UPFLOW (21 X 17)-(CTO)
310DRAIN PAN SIDE(1.5ton-2.5ton)HORIZ-(CTO)
963ASSY-REP PART FILTER ACS PNL-(CTO)
990ASSY-REP PART BLWR ACS PNL-(CTO)
995ASSY-REP PART PLUMB ACS PNL-(CTO)
4302ARM-MOTOR MTG-(CTO)
4303BAND-MOTOR MTG (4 LEG)-(CTO)
4307KIT – CABINET PLUG-(CTO)
430822W79 GE 100600-02 Run Capacitor 7.5 Mfd @ 37
4309HARNESS-WIRING AH-(CTO)
4311LABEL WIRING DIAGRAM-(CTO)
431340K8201 CTL BDC3-1
4314W/H BC ENHANCED-(CTO)
4315620606-01 KIT 4 PIN HARNESS
9997SIDE GEA BADGE
9999PM SERVICE INSTRUCTIONS
