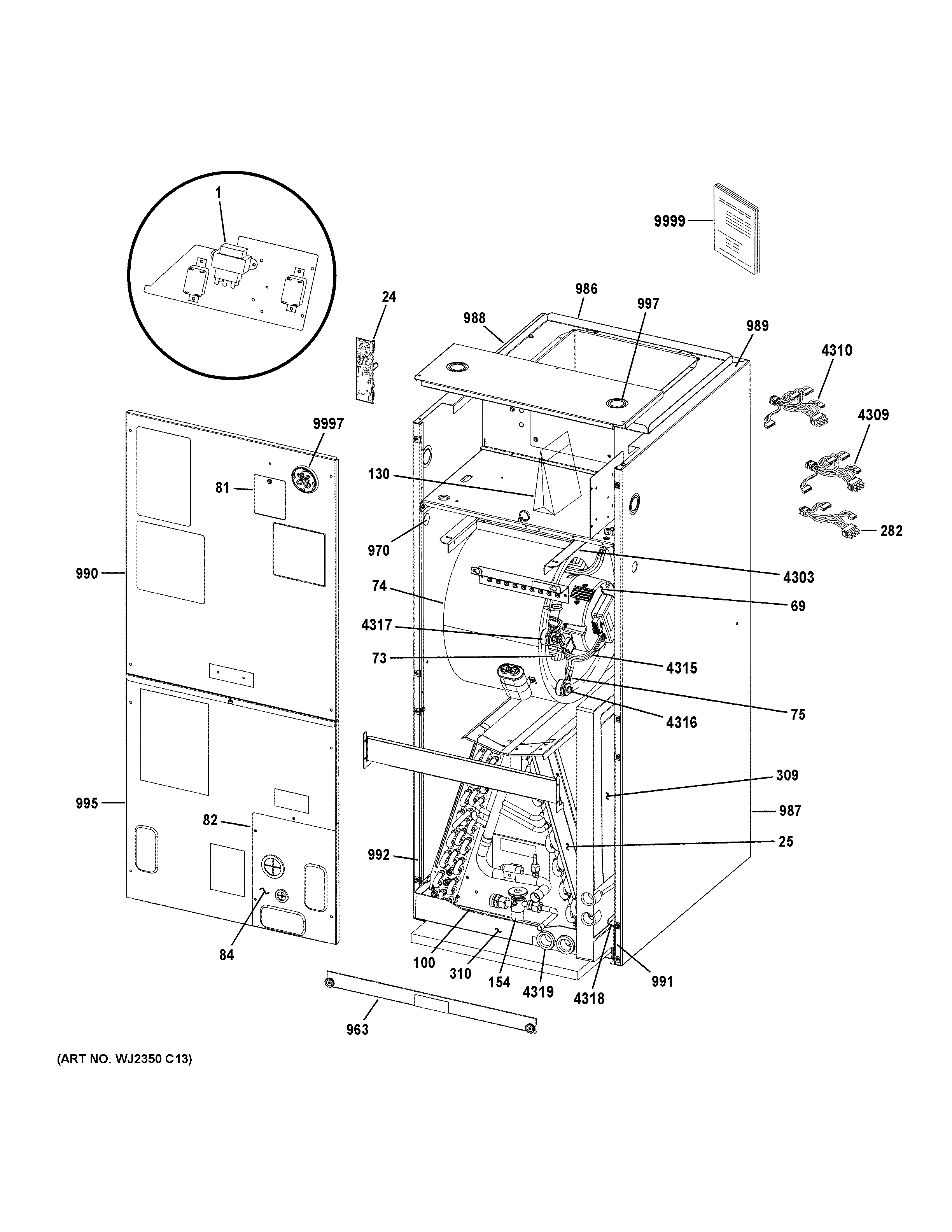

NAM30V2TA5S71 ROOM AIR CONDITIONERadmin2025-04-26T11:58:49+00:00NAM30V2TA5S71 ROOM AIR CONDITIONER ProductsPositionProduct146W11 GE 101192-01 Transformer 208/230V24ASSY-P.C.BOARD ALLIED AHC25CBA27UHE-018/024 REP COIL-(CTO)69MTR-BLWER 1/2HP CT 208-230V (CTO)73WHEEL-(CTO)74HOUSING-BLOWER 11 X 8-(CTO)75ARM-MOTOR MTG-(CTO)81PLATE-COVER LB-88627E-(CTO)82PLATE-CUTOFF-(CTO)84PLATE-PATCH LB-106604E-(CTO)100CHANNEL BOTTOM -(CTO)130WIRING DIAGRAM-(CTO)154TXV (SMALL) CTO282HARNESS-ADAPTOR WIRING AH-(CTO)309DRAIN PAN-(CTO)310107196-02 PAN-HORIZONTAL DRAIN(CTO)963DOOR FILTER LB-110417E-(CTO)970POST-CORNER-(CTO)986PNL TOP BACK WRAPPER -(CTO)987PNL BOTTOM BACK WRAPPER -(CTO)988PNL TOP LEFT -(CTO)989PNL TOP RIGHT WRAPPER -(CTO)990PNL UPPER-(CTO)991PNL BOTTOM RIGHT WRAPPER-(CTO)992PNL BOTTOM LEFT WRAPPER-(CTO)995PANEL-LOWER-(CTO)997PANEL TOP CAP -(CTO)4303MOTOR MOUNT BAND KIT-(CTO)4309KIT, HARNESS REPAIR PART(CTO)4310627971-02 HARNESS WIRING AIR HANDLER(CTO4315HARNESS-MOTOR 3.0 ECM-(CTO)4316SLEEVE-(CTO)4317GROMMET-(CTO)4318CHANNEL-CONDENSATE-(CTO)4319CHANNEL-CND-(CTO)9997SIDE GEA BADGE9999PM SERVICE INSTRUCTIONS
