NAM36E1TA451 ROOM AIR CONDITIONER

Products

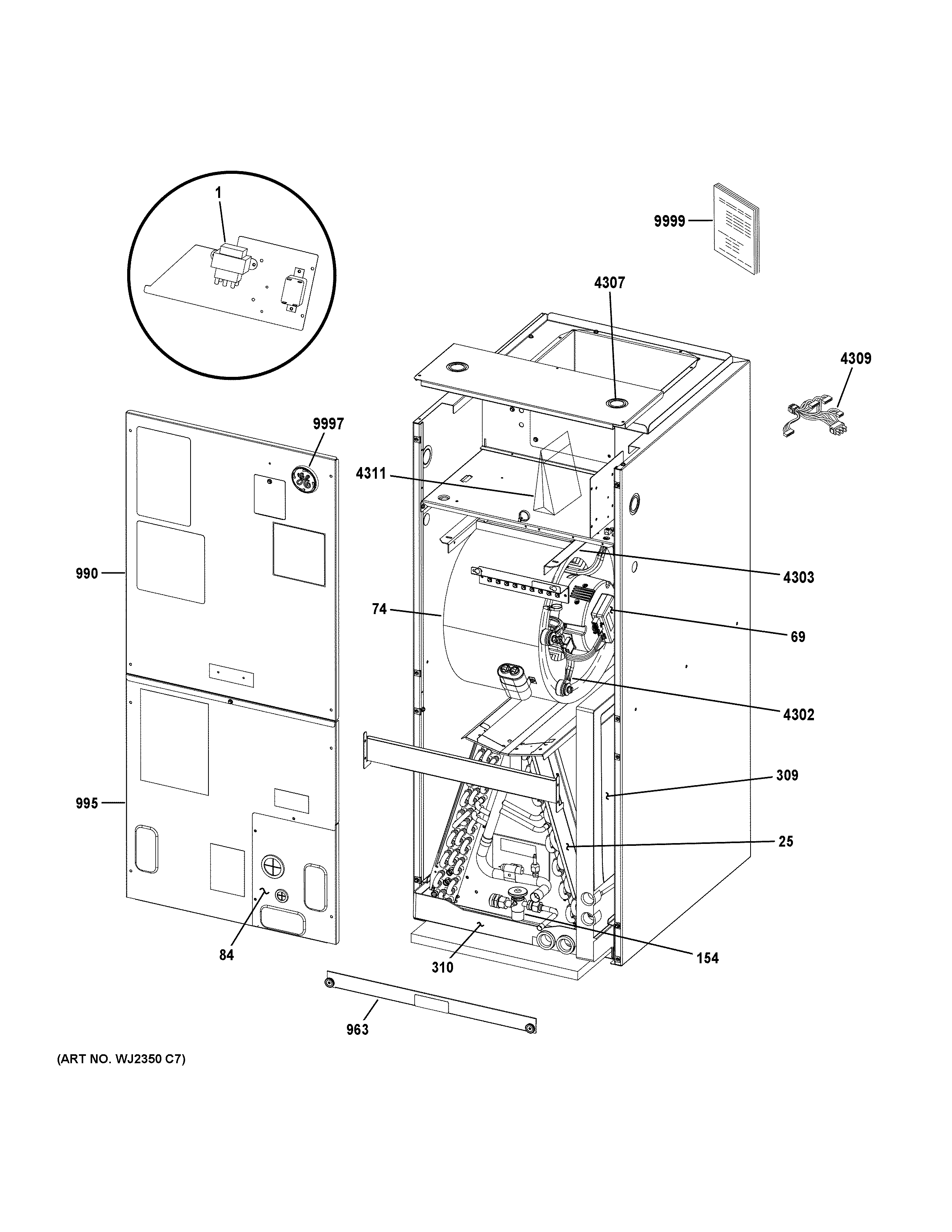

Position	Product
1	TRANSFORMER 208/240V PRI, 24V-(CTO)
25	ASSY-REP COIL CBA25UH/V-036-(CTO)
69	607421-55 MTR-MOD 1/2HP CT 230V 60hz 1PH
74	BLWR HSG ASSY 10X8R NEW LH SCROLL-(CTO)
84	ASSY-REP PART PATCH PL (BCE5M)-(CTO)
154	104110-02 VALVE-TXV 3 Ton (R410A)
309	REPL DRAIN PAN UPFLOW (21 X 19.5)-(CTO)
310	DRAIN PAN SIDE (3ton-4ton) HORIZ-(CTO)
963	ASSY-REP PART FILTER ACS PNL-(CTO)
990	ASSY-REP PART BLWR ACS PNL-(CTO)
995	ASSY-REP PART PLUMB ACS PNL-(CTO)
4302	ARM-MOTOR MTG-(CTO)
4303	BAND-MOTOR MTG (4 LEG)-(CTO)
4307	KIT - CABINET PLUG-(CTO)
4309	107310-01 HARNESS-WIRING AH
4311	LABEL WIRING DIAGRAM-(CTO)
9997	SIDE GEA BADGE
9999	PM SERVICE INSTRUCTIONS
