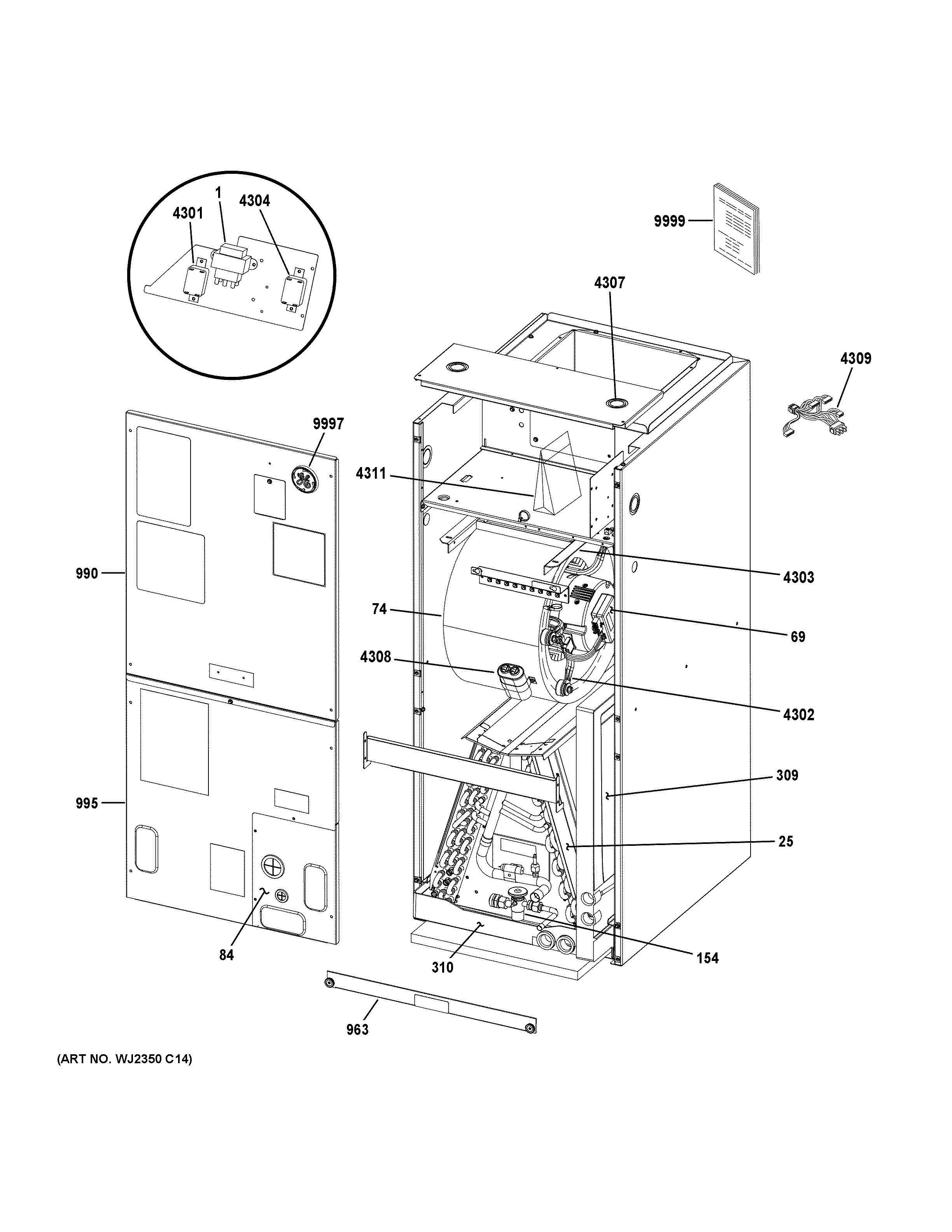

NAM36P1TA5S71 ROOM AIR CONDITIONER

Products

Position	Product
1	TRANS 208/240VPRI, 24VSEC, 70VA (CTO)
25	627707-04 REPAIR PART COIL (CTO)
69	104849-11 MTR-BLR 1/3HP/208-230/1
74	BLWR HSG ASSY 10X8R NEW LH SCROLL-(CTO)
84	ASSY-REP PART PATCH PL (BCE5M)-(CTO)
154	104110-03 VALVE-TXV (3.5-5) (R410A)
309	DRAIN PAN SIDE (3ton-4ton) HORIZ-(CTO)
310	REPL DRAIN PAN UPFLOW (21 X 19.5)-(CTO)
963	ASSY-REP PART FILTER ACS PNL-(CTO)
990	ASSY-REP PART BLWR ACS PNL-(CTO)
995	ASSY-REP PART PLUMB ACS PNL-(CTO)
4301	RELAY FAN RELAY-(CTO)
4302	ARM-MOTOR MTG-(CTO)
4303	BAND-MOTOR MTG (4 LEG)-(CTO)
4304	105241-01 DELAY RELAY
4307	KIT – CABINET PLUG-(CTO)
4308	100600-13 CAPACITOR-RUN 15 @ 440VAC OVAL
4309	627373-01 HARNESS-WIRING #PSC (CTO)
4311	LABEL WIRING DIAGRAM-(CTO)
9997	SIDE GEA BADGE
9999	PM SERVICE INSTRUCTIONS
