NAM42E1TA5S71 ROOM AIR CONDITIONER

Products

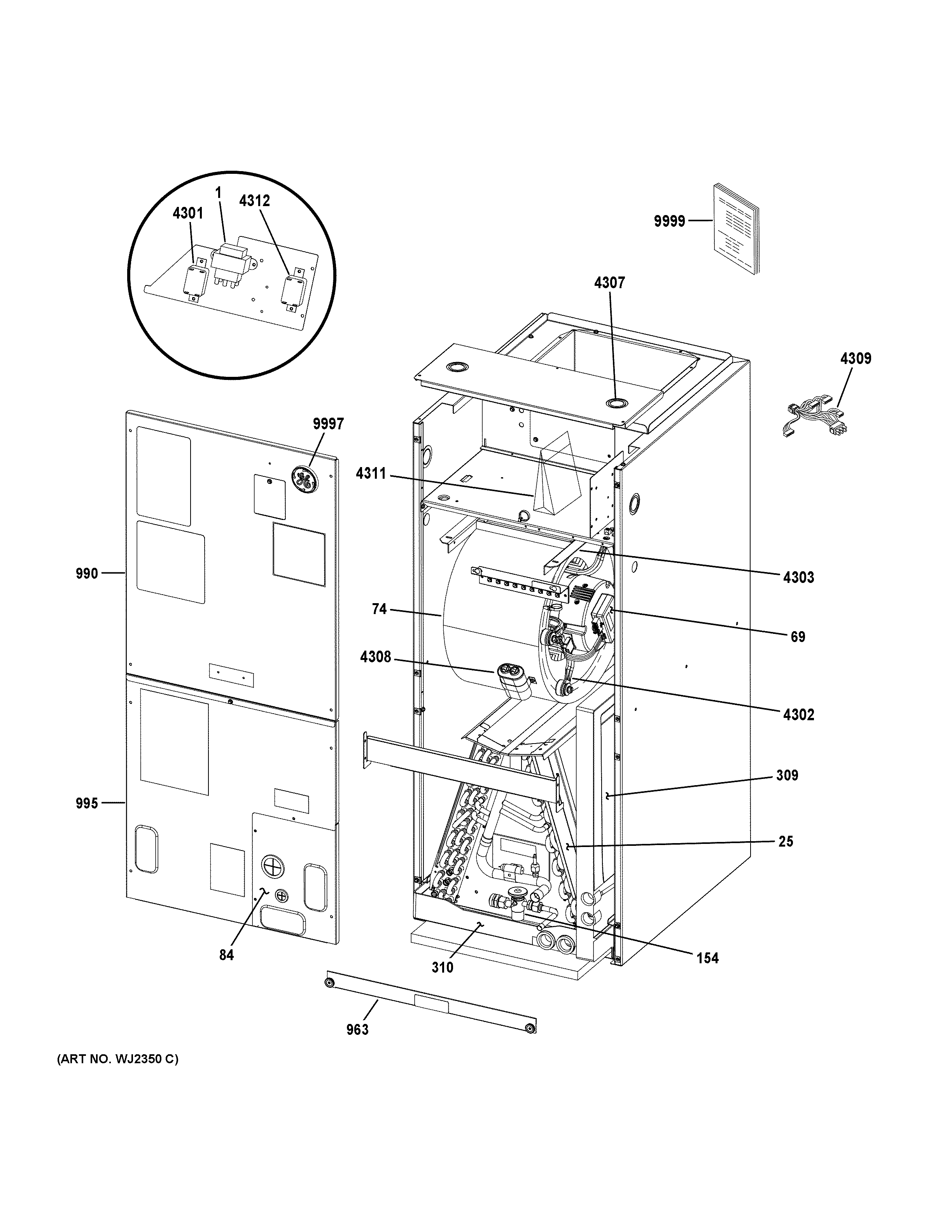

Position	Product
1	TRANS 208/240VPRI, 24VSEC, 70VA (CTO)
25	627707-05 REPAIR PART COIL (CTO)
69	607421-60 MOTOR-BLOWER ECM 3/4HP CT
74	BLOWER HOUSING ASSY 12X10-(CTO)
84	ASSY-REP PART PATCH PL (BCE5M)-(CTO)
154	104110-01 VALVE-TXV (1.5-2.5) (R410A)
309	REPL DRAIN PAN UPFLOW (21 X 19.5)-(CTO)
310	DRAIN PAN SIDE (3ton-4ton) HORIZ-(CTO)
963	ASSY-REP PART FILTER ACS PNL-(CTO)
990	ASSY-REP PART BLWR ACS PNL-(CTO)
995	ASSY-REP PART PLUMB ACS PNL-(CTO)
4301	RELAY FAN RELAY-(CTO)
4302	ARM-MOTOR MTG-(CTO)
4303	ARM-MOTOR MTG-(CTO)
4307	KIT – CABINET PLUG-(CTO)
4308	22W79 GE 100600-02 Run Capacitor 7.5 Mfd @ 37
4309	627375-01 HARNESS (CTO)
4311	LABEL WIRING DIAGRAM-(CTO)
4312	105241-01 DELAY RELAY
9997	SIDE GEA BADGE
9999	PM SERVICE INSTRUCTIONS
