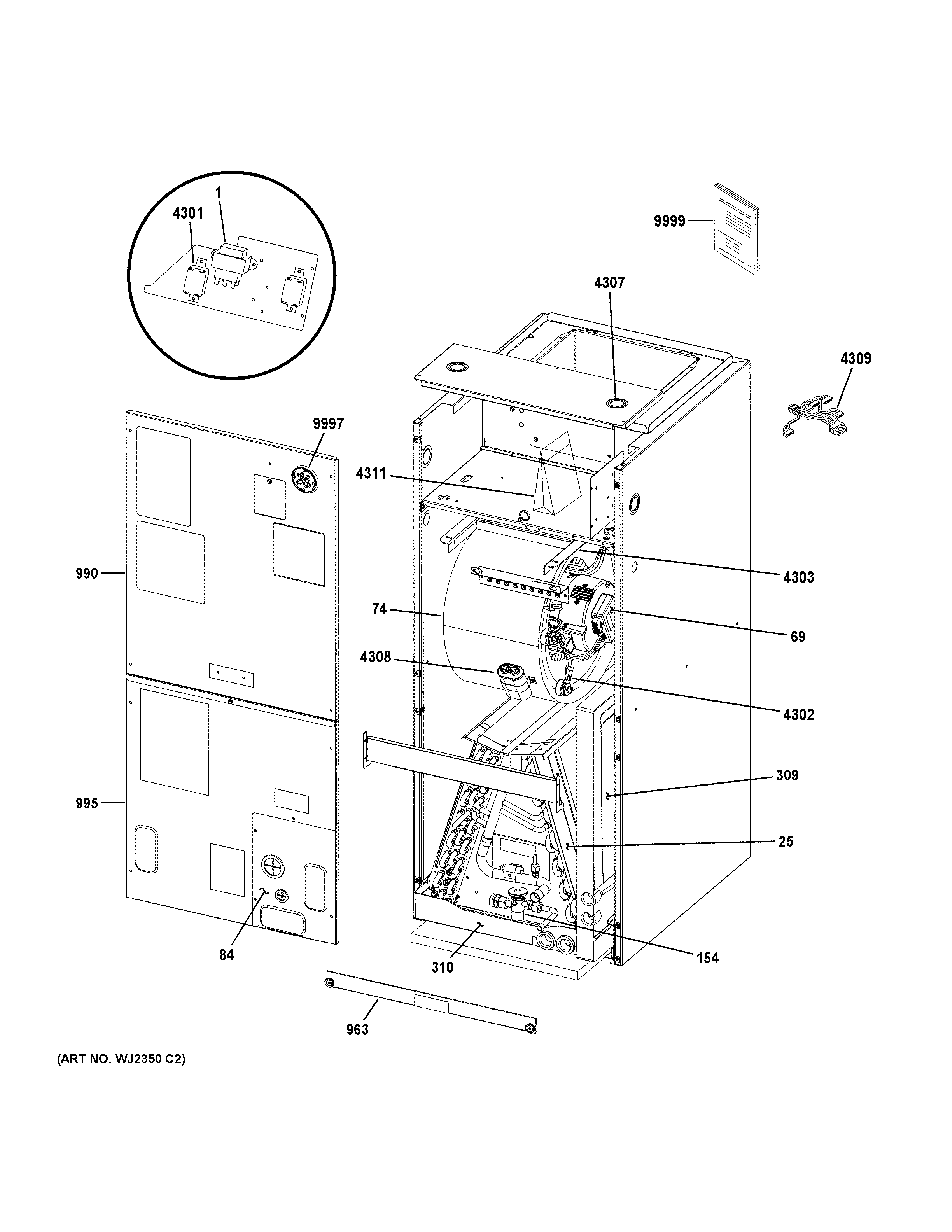

NAM48P1TA452 ROOM AIR CONDITIONER

Products

Position	Product
1	TRANSFORMER 208/240V PRI, 24V-(CTO)
25	ASSY-REP COIL CBA25UH/V-048-(CTO)
69	104944-35 KIT MTR REPL 1HP 230V 1PH
74	BLOWER HOUSING ASSY 12X10-(CTO)
84	ASSY-REP PART PATCH PL (BCE5M)-(CTO)
154	104110-03 VALVE-TXV (3.5-5) (R410A)
309	REPL DRAIN PAN UPFLOW (21 X 19.5)-(CTO)
310	DRAIN PAN SIDE (3ton-4ton) HORIZ-(CTO)
963	ASSY-REP PART FILTER ACS PNL-(CTO)
990	ASSY-REP PART BLWR ACS PNL-(CTO)
995	ASSY-REP PART PLUM ACS PNL-(CTO)
4301	104774-01 RELAY FAN 208/240V
4302	ARM-MOTOR MTG-(CTO)
4303	BAND-MOTOR MTG (4 LEG)-(CTO)
4307	KIT - CABINET PLUG-(CTO)
4308	100600-13 CAPACITOR-RUN 15 @ 440VAC OVAL
4309	W/H AH CONSTANT TORQUE-(CTO)
4311	LABEL WIRING DIAGRAM-(CTO)
9997	SIDE GEA BADGE
9999	PM SERVICE INSTRUCTIONS
