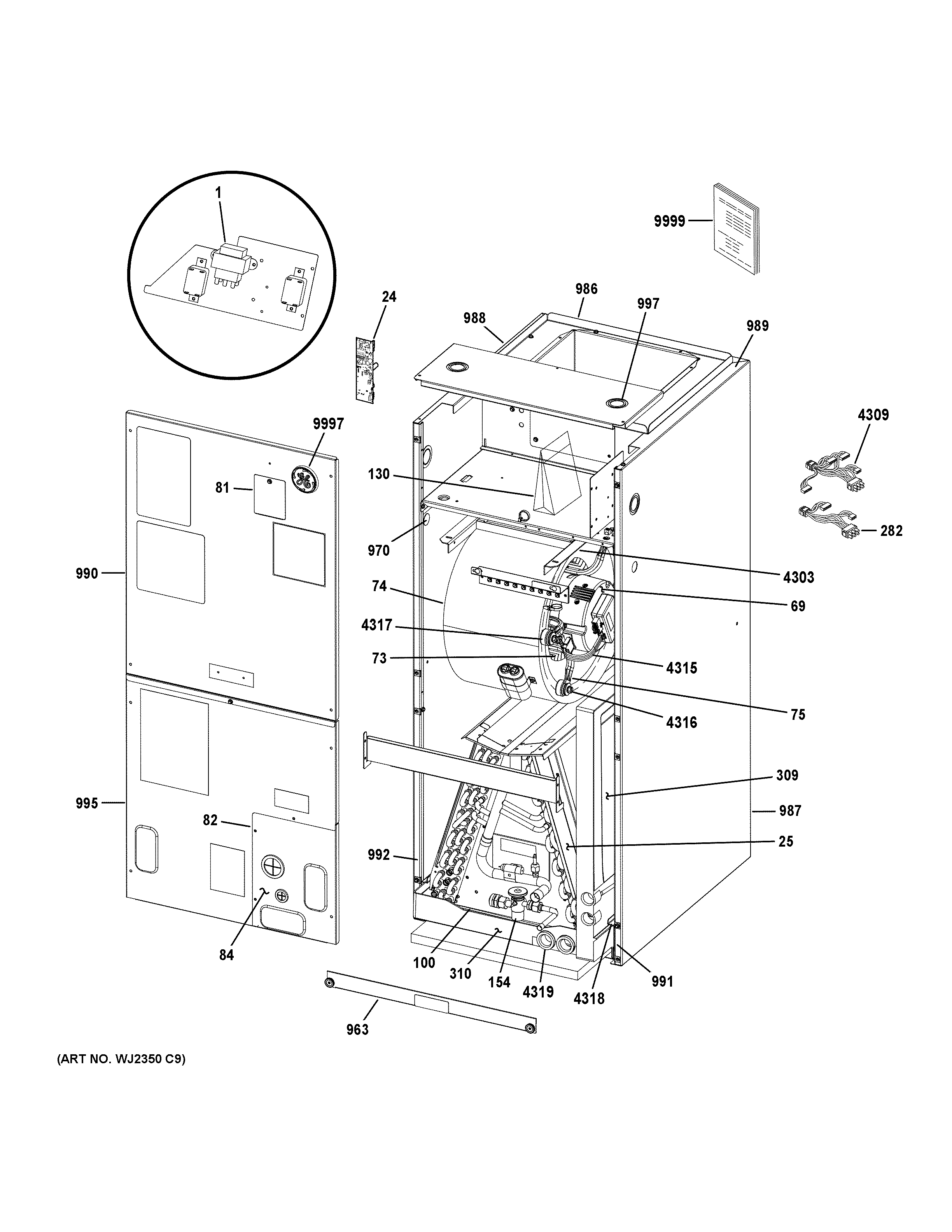

NAM60V2TA452 ROOM AIR CONDITIONERadmin2025-04-26T11:57:28+00:00NAM60V2TA452 ROOM AIR CONDITIONER ProductsPositionProduct146W11 GE 101192-01 Transformer 208/230V24ASSY-P.C.BOARD ALLIED AHC25CBA27UHE-060 Repair Coil-(CTO)69MTR-BLWER 1HP CT 208-230V (CTO)73WHEEL-(CTO)74HOUSING-12X9 BLR ASY-(CTO)75ARM-MOTOR MTG-(CTO)81PLATE-COVER LB-88627E-(CTO)82PLATE-CUTOFF-(CTO)84PLATE-PATCH LB-106604E-(CTO)100CHANNEL BOTTOM -(CTO)130WIRING DIAGRAM-(CTO)154104110-03 VALVE-TXV (3.5-5) (R410A)282HARNESS-ADAPTOR WIRING AH-(CTO)309DRAIN PAN-(CTO)310PAN-HORIZONTAL DRAIN-(CTO)963DOOR FILTER -(CTO)970POST-CORNER-(CTO)986PNL TOP BACK WRAPPER-(CTO)987WRAPPER -CAB(BTM BACK)ARM GRAY-(CTO)988PNL TOP LEFT -(CTO)989PNL TOP RIGHT WRAPPER -(CTO)990PNL UPPER ACCESS-(CTO)991WRAPPER -CAB(LOWER RT)ARM GRAY-(CTO)992WRAPPER -CAB(LOWER LT)ARM GRAY-(CTO)995PANEL-LOWER-(CTO)997PANEL TOP CAP -(CTO)4303MOTOR MOUNT BAND KIT-(CTO)4309HARNESS-(CTO)4315HARNESS-MOTOR 3.0 ECM-(CTO)4316SLEEVE-(CTO)4317GROMMET-(CTO)4318CHANNEL-CONDENSATE-(CTO)4319Channel - Condensate-(CTO)9997SIDE GEA BADGE9999PM SERVICE INSTRUCTIONS
