NAV5800AWW 04 – MOTOR, PUMP AND IDLER ASSEMBLY

NAV5800AWW 04 – MOTOR, PUMP AND IDLER ASSEMBLY

Written by

in

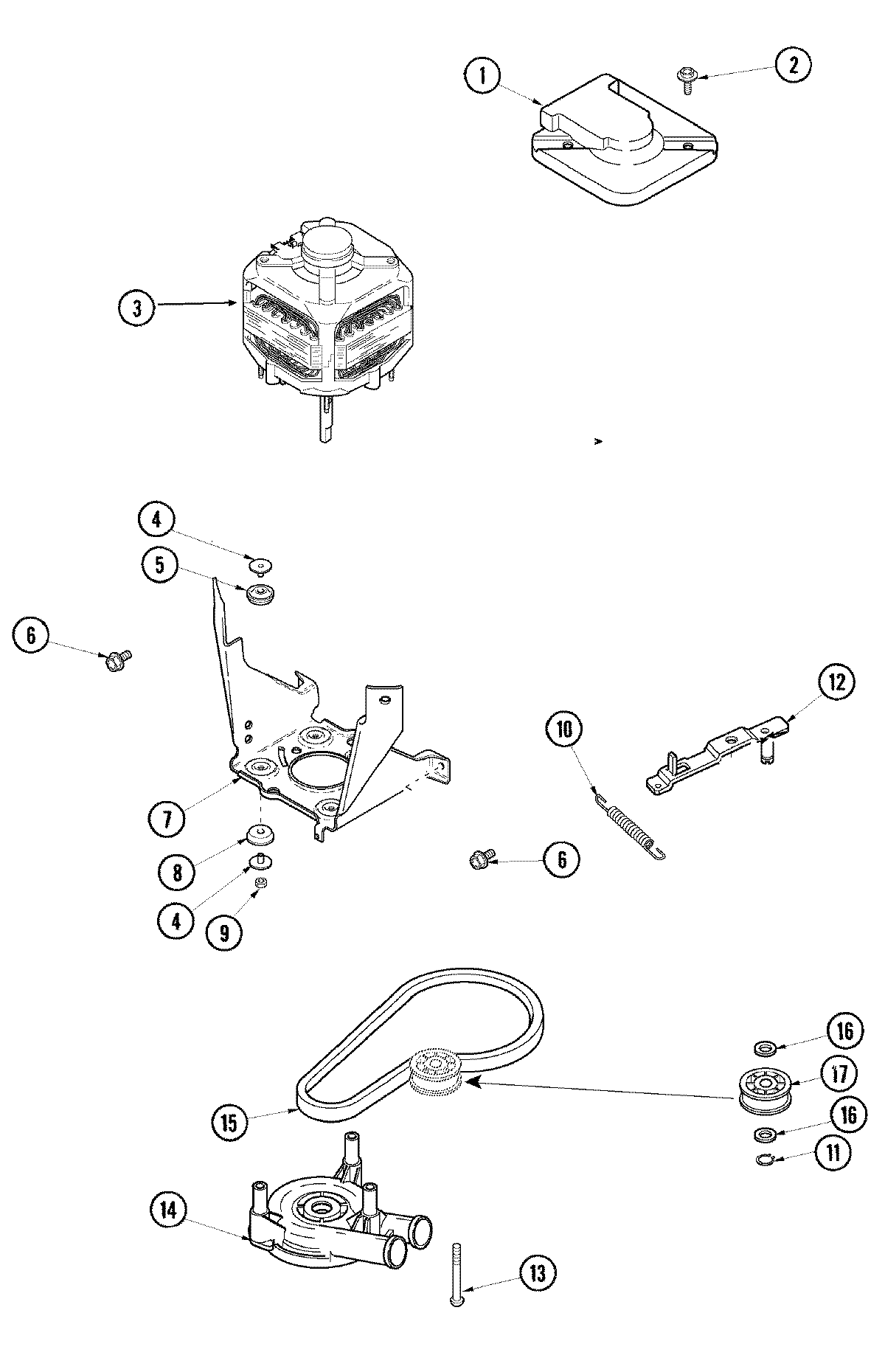

NAV5800AWW 04 – MOTOR, PUMP AND IDLER ASSEMBLY

Products

PositionProduct
1MAY 40112301
2WP3390631 Whirlpool Screw
3MAY 27001055
4MAY 40053701
5MAY 40053801
635369 Speed Queen Screw,5/16-18 X1/2 HX FLAN
7MAY 40015502
8MAY 40054301
9MAY 40095101
10MAY 40061401
11MAY 23748
12MAY 27001028
13MAY 40063701
14WP285655 Whirlpool Hose Clamp
14KIT ASSY PUMP-COMP-(VIB-WELDED
15WP27001006 Whirlpool Drive Belt
16MAY 52549
17MAY 40045001
17WPW10139757 Whirlpool Nut
17MAY 40038901
