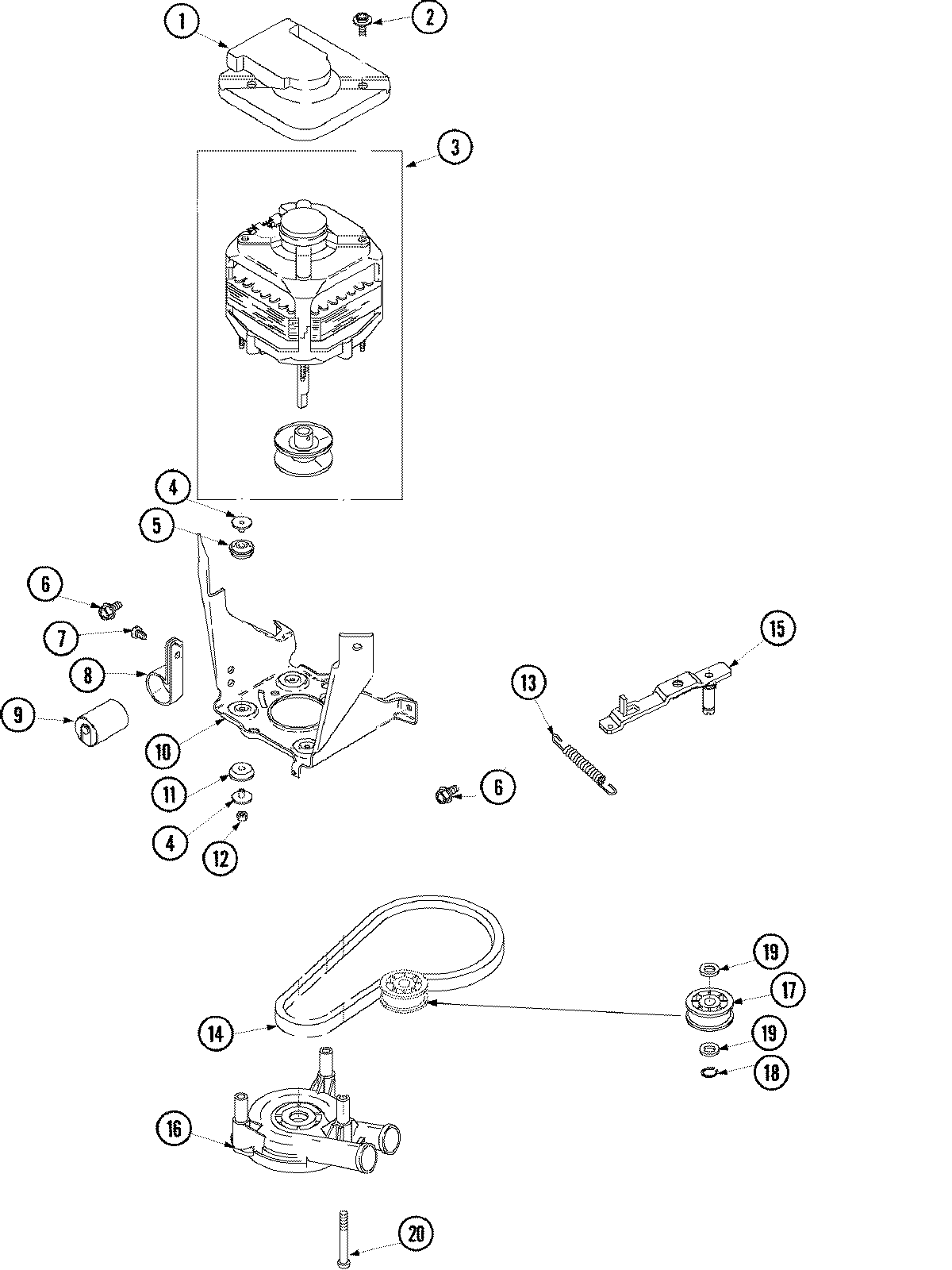

NAV8800AWW 04 – MOTOR, PUMP AND IDLER ASSEMBLY

Products

PositionProduct
1MAY 40112301
2WP3390631 Whirlpool Screw
3MAY 27001068
4MAY 40053701
5MAY 40053801
635369 Speed Queen Screw,5/16-18 X1/2 HX FLAN
8MAY 27001107
9MAY 40084501
10MAY 40015502
11MAY 40054301
12MAY 40095101
13MAY 40061401
14WP27001006 Whirlpool Drive Belt
15MAY 27001028
16KIT ASSY PUMP-COMP-(VIB-WELDED
17MAY 40045001
17MAY 40038901
17WPW10139757 Whirlpool Nut
18MAY 23748
19MAY 52549
20MAY 40063701
