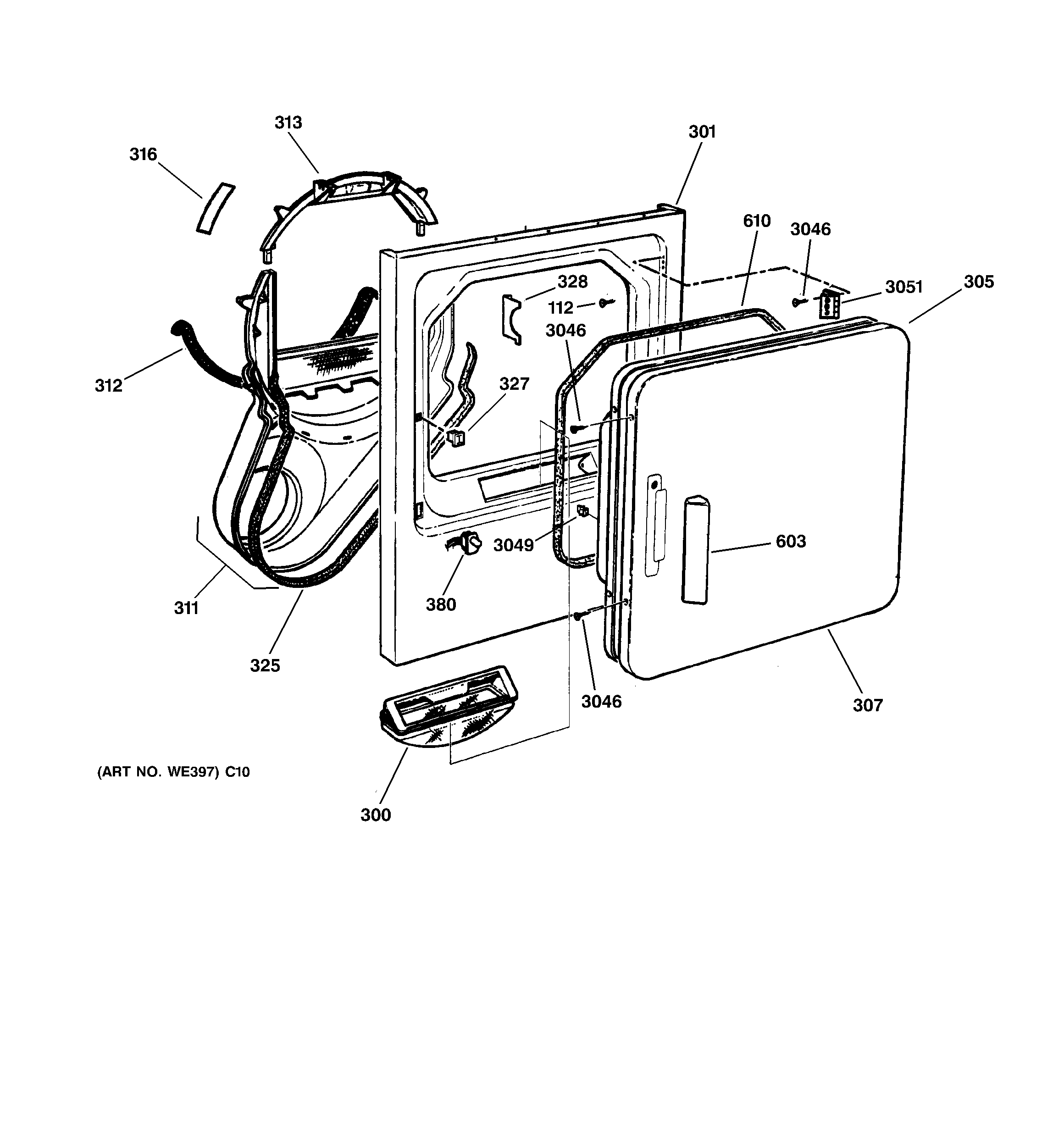

NBXR453EV2AA FRONT PANEL & DOOR

NBXR453EV2AA FRONT PANEL & DOOR

Written by

in

NBXR453EV2AA FRONT PANEL & DOOR

Products

PositionProduct
75WE2M173 GE Screw
112PLUG DOOR RVSBL AD
222GEN WE20M0253
235WE1M280 GE Screw
236WE1M642 GE Washer Leveling Leg
300WE18X25100 GE Dryer Lint Screen Filter
301GEN WE20M255
305WE49X22295 GE Front Panel Assembly
307GEN WE10M0103
311WE14X25080 GE Dryer Lint Filter Trap Assembly
312FELT TRAP DUCT
313WE3M26 GE Washer Dryer Front Drum Bearing
316GEN WE01M0333
316WE03X37317 GE Bearing Drum Slide Green 2Pk
325WE1M825 GE Washer 39 Inch Dryer Gasket Seal
327WE1M1011 GE Washer Dryer Door Latch
328GEN WE1M449
380WE4M415 GE Washer Door Switch
401GEN WE20M287
403WE2M160 GE Screw
404GEN WE20M0261
405WR2X9260 GE Refrigerator Screw
408GEN WE20M304
410LEVEL LEG & BRKT FRNT
410WE1M468 GE Leveling Screw Bracket
419WE4M325 GE Dryer Terminal Block and Ground Strap
420PANEL REAR 6 CU FT
430WE1M1102 GE Washer Cover Terminal Block
431WE01X20423 GE Strain Relief Bracket
603WE01X20580 GE Washer Dryer Door Handle
610WE9M13 GE Door Gasket
3046WE2M196 GE Screw #8
3049WE1X1192 GE Dryer Door Strike
3051WE1M1033 GE Hinge
3204WZ4X241D GE Screw Package
