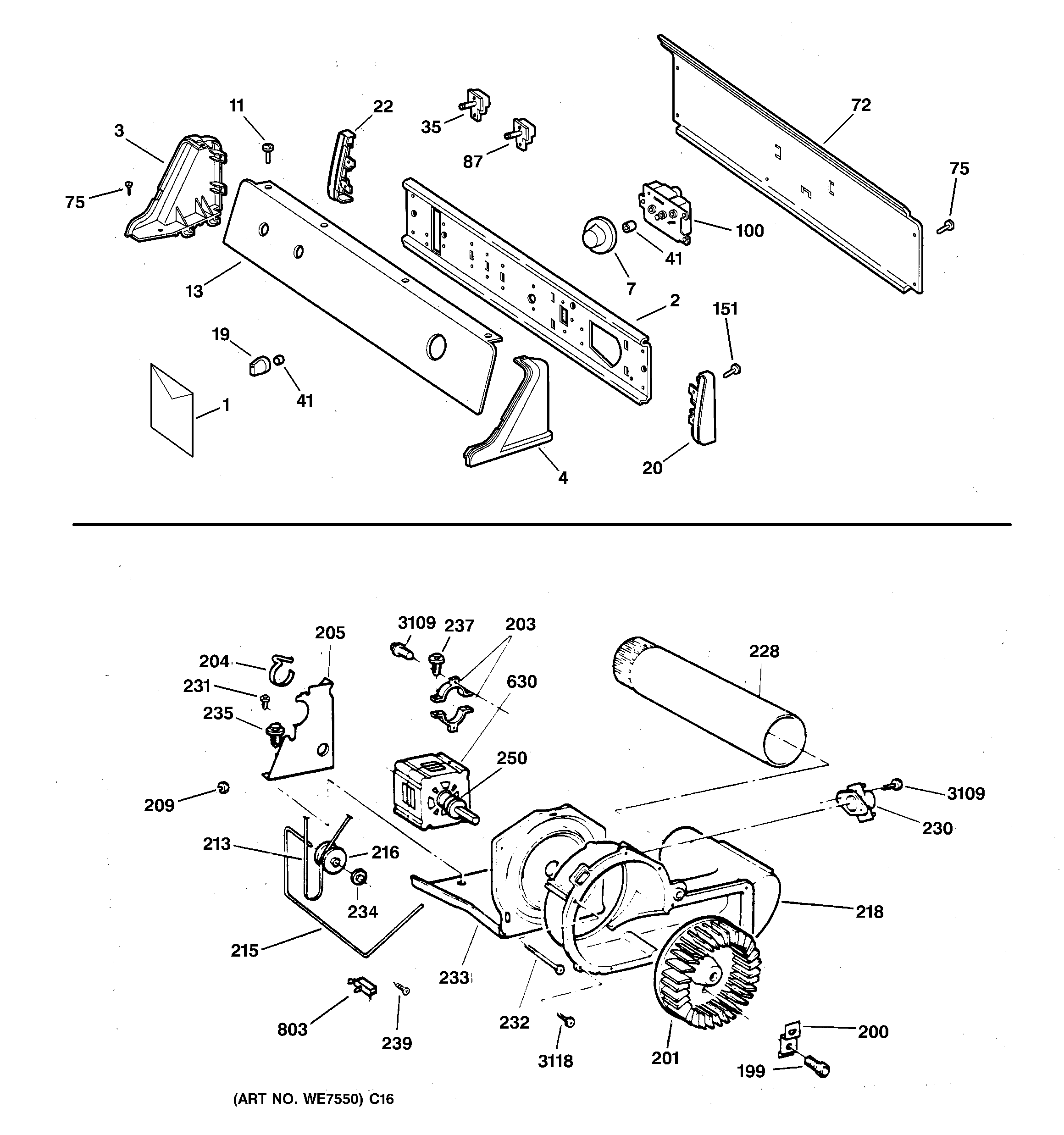

NBXR453GV2WW BACKSPLASH, BLOWER AND DRIVE ASSEMBLY

NBXR453GV2WW BACKSPLASH, BLOWER AND DRIVE ASSEMBLY

Written by

in

NBXR453GV2WW BACKSPLASH, BLOWER AND DRIVE ASSEMBLY

Products

PositionProduct
1GEN 49-90069
1GEN 39-9983
1GEN 31-16019
2GEN WH46X0348
3GEN WE19M0940
4GEN WE19M0941
7GEN WE01X1267
11GEN WH02X1206
13GEN WE19M1121
19GEN WH01X2756
20GEN WE19X0984
22GEN WE19X0983
35WE4X881 GE Dryer Rotary Start Switch
41GEN WE01X0980?
72GEN WE20X0811
75WE2M173 GE Screw
87GEN WE4M239
100WE4M188 GE Timer
151WZ4X241D GE Screw Package
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
209GEN WE02M0165
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216WE12X81 GE Dryer Idler Pulley
218GEN WE14M0078
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE02M0096
235WE1M280 GE Screw
237WE2M200 GE Ground Screw
239GEN WE02M0167
250GEN WE12X0041
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
3109WD02X10057 GE Dishwasher Screw 10-16 x 1
3118GEN WH02M0342
