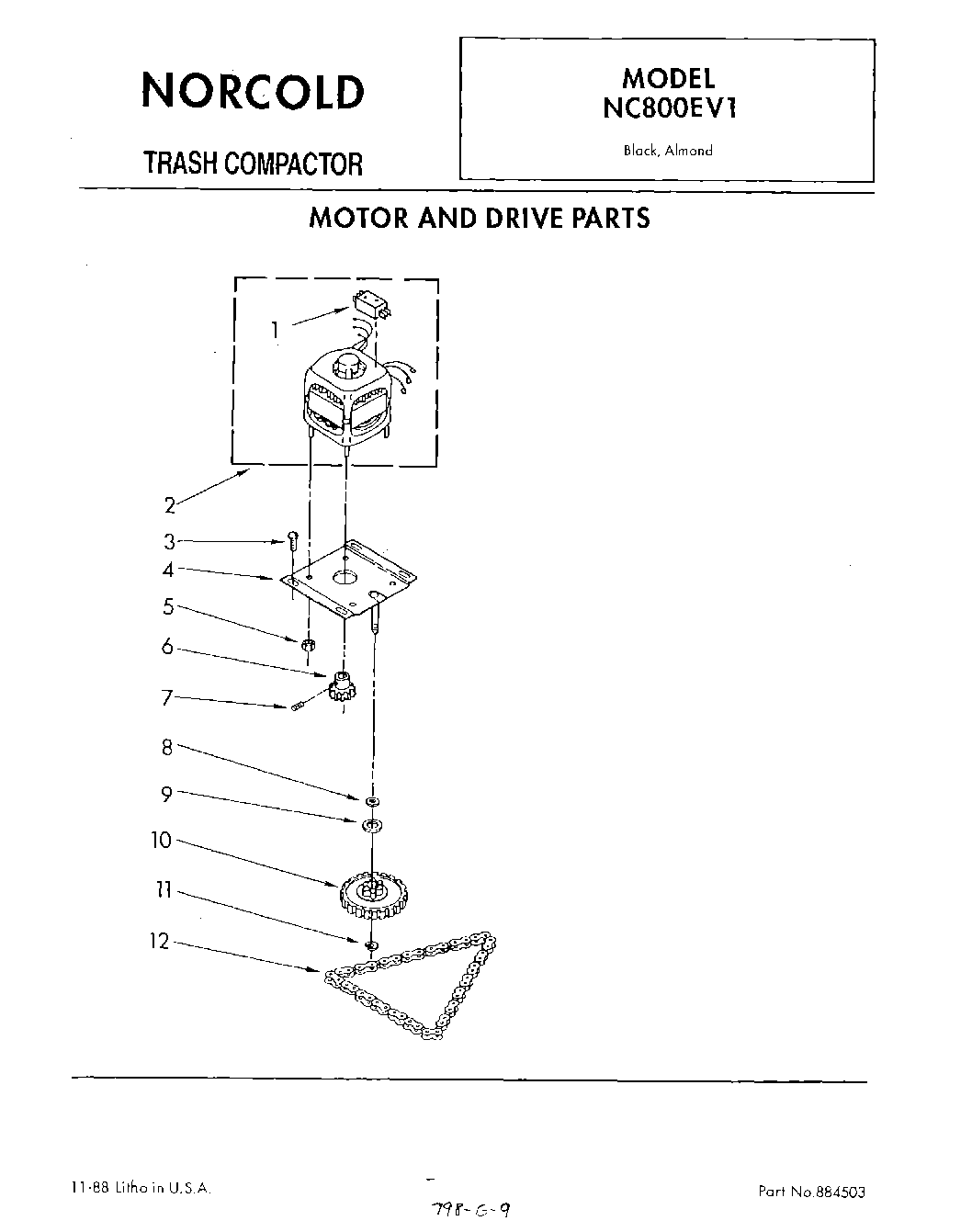

NC800EV1 01 – MOTOR AND DRIVE , LITERATURE

NC800EV1 01 – MOTOR AND DRIVE , LITERATURE

Written by

in

NC800EV1 01 – MOTOR AND DRIVE , LITERATURE

Products

PositionProduct
WPL LIT884503
WPL LIT4151186
WPL LIT4151185
ENGLISH (Sheet, Tech)
1W10439651 Whirlpool Air Conditioner Motor Drive
2Motor, Drive (Includes No.1)
3Screw. 1/4-20 x 1/2 (4)
4776327 Whirlpool Compactor Motor Plate
5WP776338 Whirlpool Compactor Nut
6GEAR KIT COMPACTOR
7WP454512 Whirlpool Compactor Spring Pin
8776035 Whirlpool Compactor Washer
9W11214485 Whirlpool Compactor Washer
11WP776036 Whirlpool Compactor Clip
12Harness, Wiring
12CHAIN-DRVE
