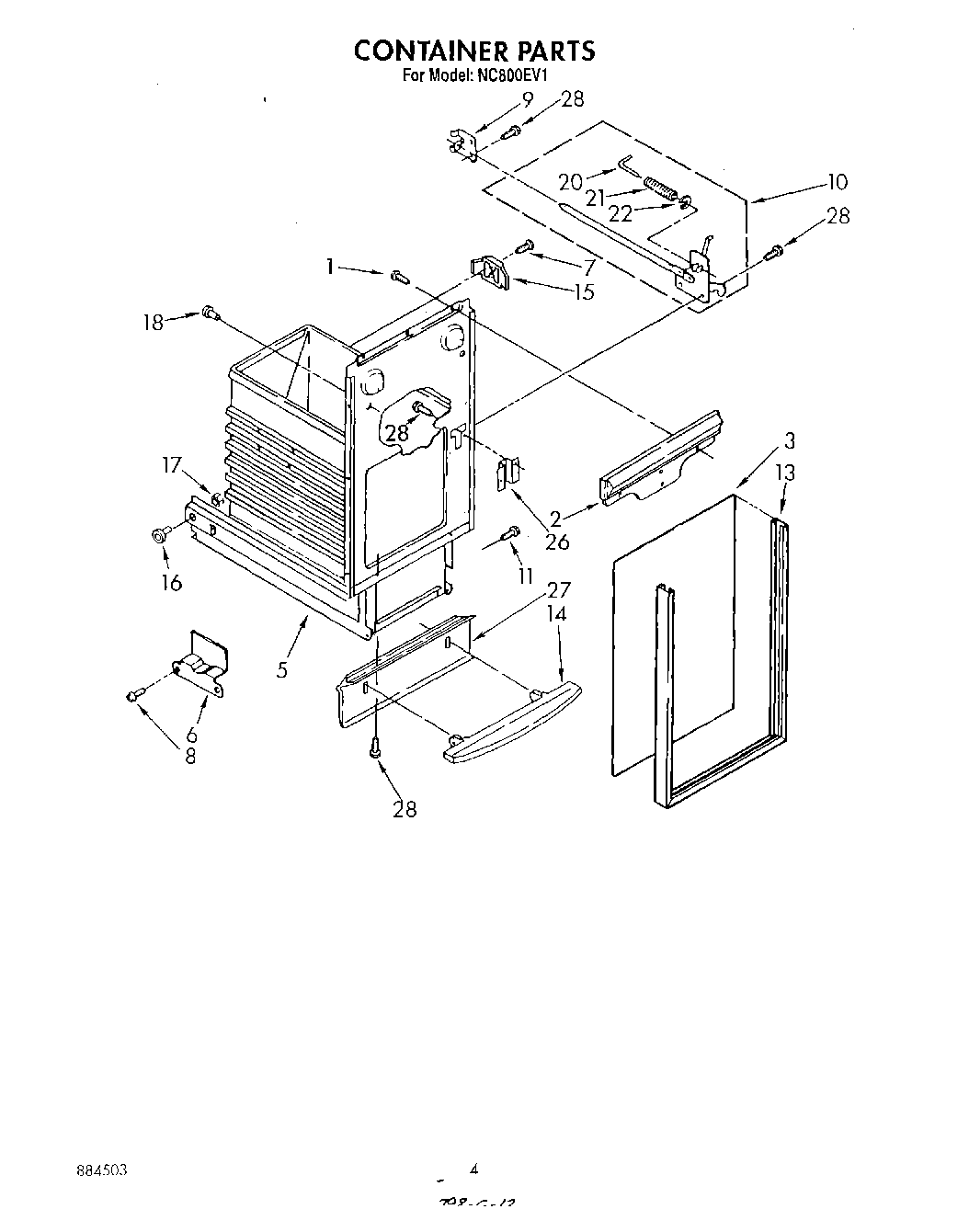

| 2 | WP608732 Whirlpool Compactor Handle |
| 3 | Panel, Container Front (Black & White) |
| 5 | Container Assembly |
| 6 | Cam, Spray Actuator (2) |
| 7 | Screw (2) |
| 9 | WP776395 Whirlpool Compactor Guide |
| 10 | 675379 Whirlpool Compactor Drawer Latch |
| 11 | WP780263 Whirlpool Compactor Screw |
| 13 | Trim, Container (Front) |
| 14 | W11679165 Whirlpool Foot Pedal |
| 15 | 9871125 Whirlpool Compactor Actuator |
| 16 | WP9871602 Whirlpool Compactor Bearing |
| 17 | WP776356 Whirlpool Compactor Nut |
| 18 | Bumper, Container (2) |
| 20 | Pin |
| 21 | 775736 Whirlpool Compactor Spring |
| 22 | Ring, ``E`` |
| 26 | 775665 Whirlpool Compactor Plate Latch |
| 27 | WP777328 Whirlpool Compactor Guard |
| 28 | WP489069 Whirlpool Compactor Screw |
