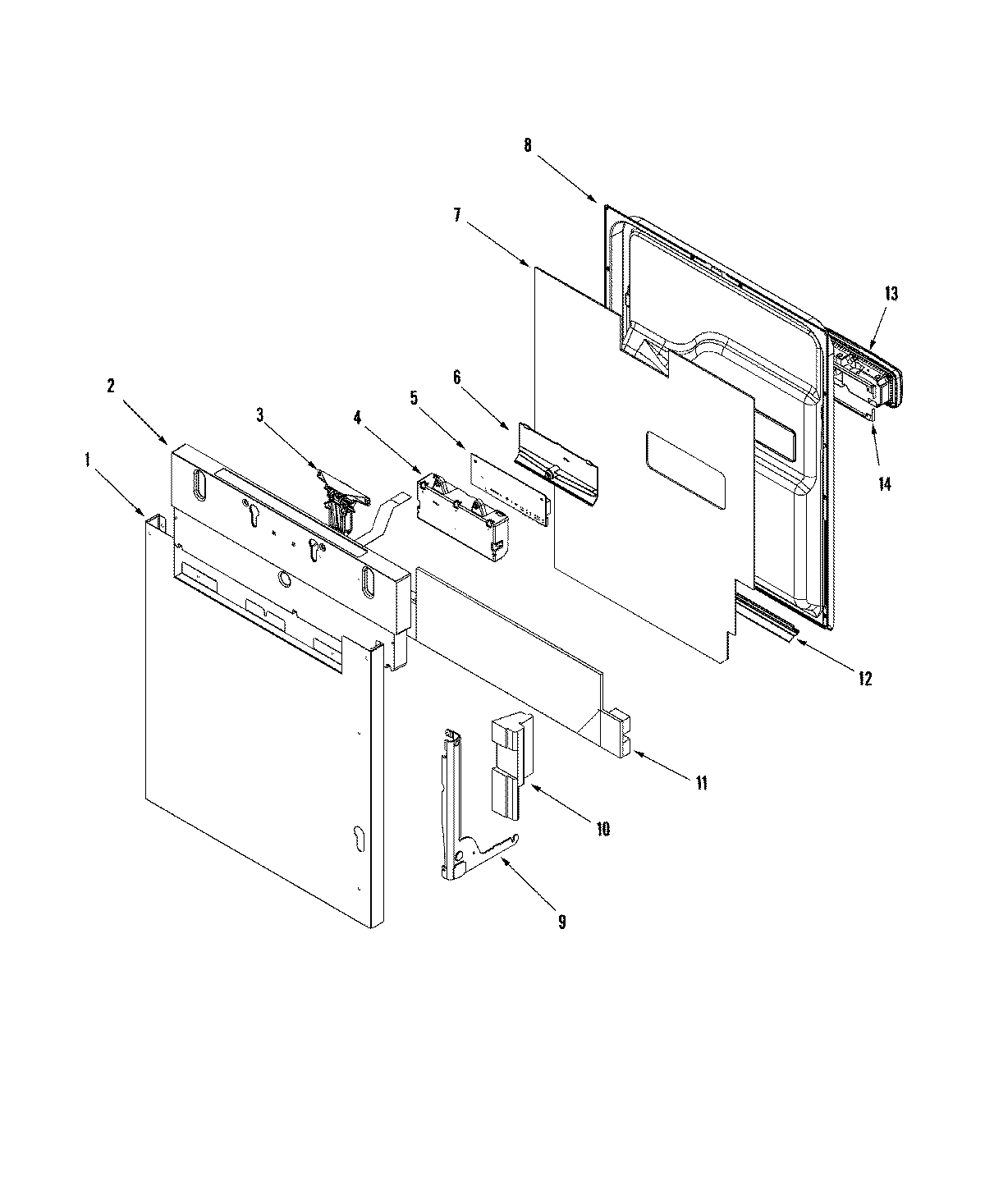

NDB8630AWZ 01 – CONTROL PANEL & DOOR

Products

Position	Product
1	SUPPORT, INNER DOOR (BLK)
1	MAY 99002934
2	99003096 Whirlpool Dishwasher Panel Fastener
3	MAY 99002751
3	WPW10275768 Whirlpool Door Latch
4	WP99002576 Whirlpool Dishwasher Cover
5	MAY 99003158
6	MAY 99002575
7	MAY 99003044
8	MAY 99003140
8	WPY912620 Whirlpool Dishwasher Screw
9	MAY 99002929
9	MAY 99001075
9	WPW10118637 Whirlpool Dishwasher Bracket
9	MAY 99003049
10	MAY 99003047
10	MAY 99003046
11	MAY 99003048
12	MAY 99003045
13	MAY 99003059
13	MAY 99003060
13	MAY 99002270
14	SCREW, No.8X1/2 HEX WASHER HEAD
14	MAY 99002465
