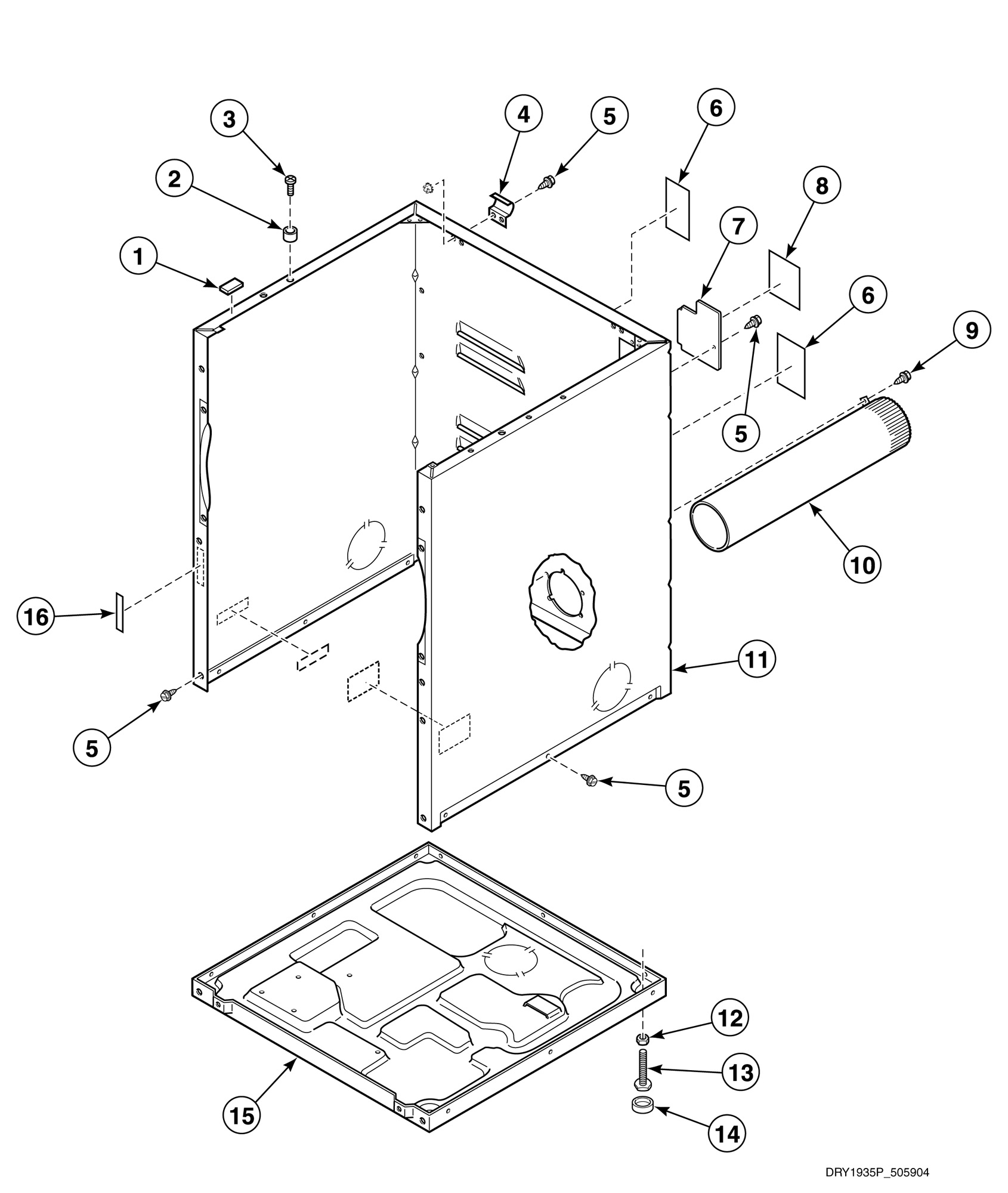

NE3513 Cabinet, Exhaust Duct and Base

NE3513 Cabinet, Exhaust Duct and Base

Written by

in

NE3513 Cabinet, Exhaust Duct and Base

Products

PositionProduct
1Bumper Pad
2Panel Locator
3Screw
5Screw
6Instruction Sticker
7Access Cover Plate
9Screw
12Nut
13Screw
14Rubber Foot
15Wire Harness Assembly
16Disconnect Power Warning Label
