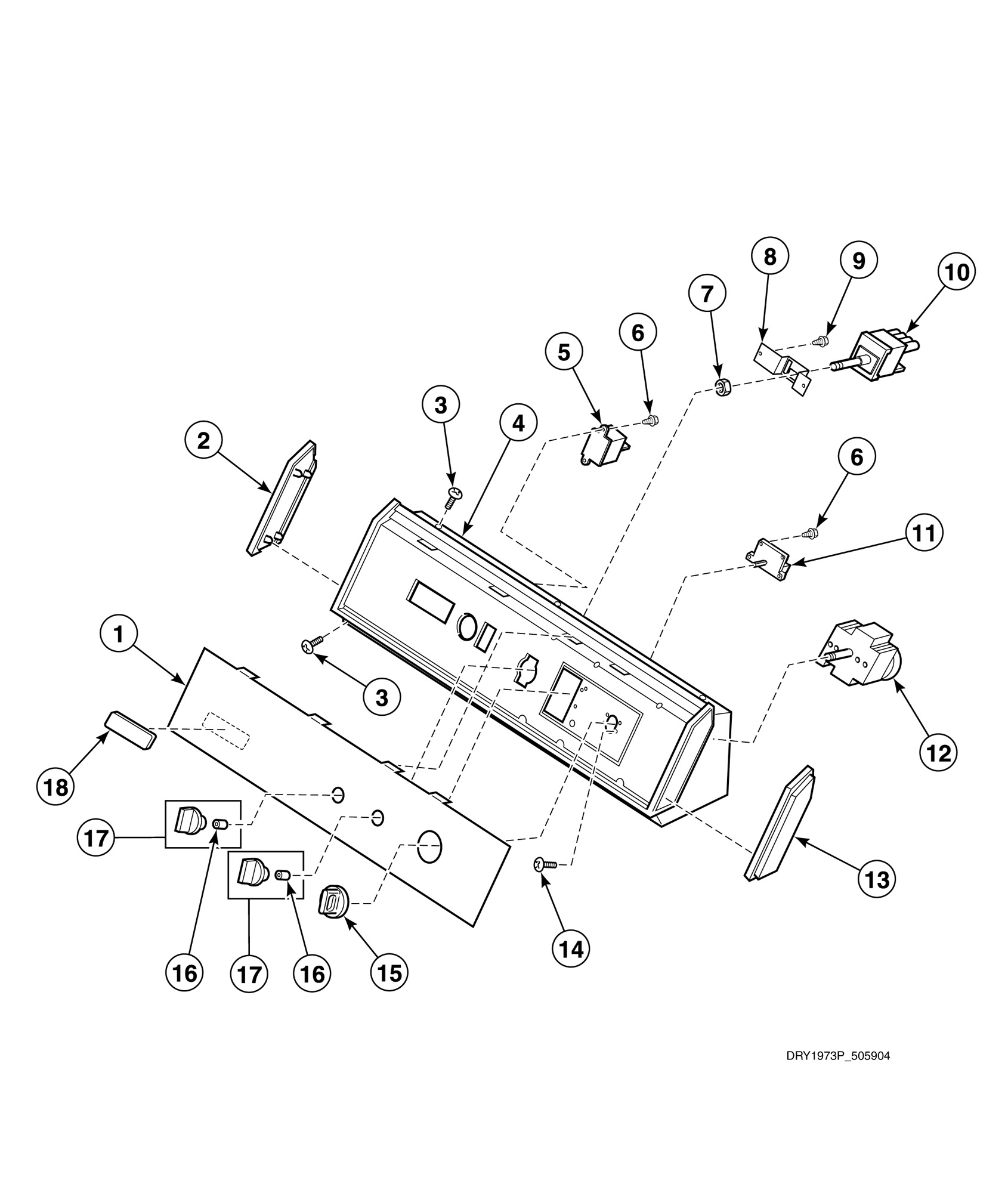

NE4313 Graphic Panel, Control Hood and Controls (Drawing 5 of 7)

Written by

Products

Position	Product
2	End Cap (Comment: Left)
3	Screw
6	Screw
7	Nut
9	Screw
10	Fabric Selector Switch (Comment: Models through Serial No. S6271975XG)
10	Fabric Selector Switch (Comment: Models starting Serial No. S6271976XG)
11	Rotate-to-Start Switch
12	Timer
13	End Cap
14	Screw
17	Wire Harness Assembly
18	NOT ON YOUR MODEL
