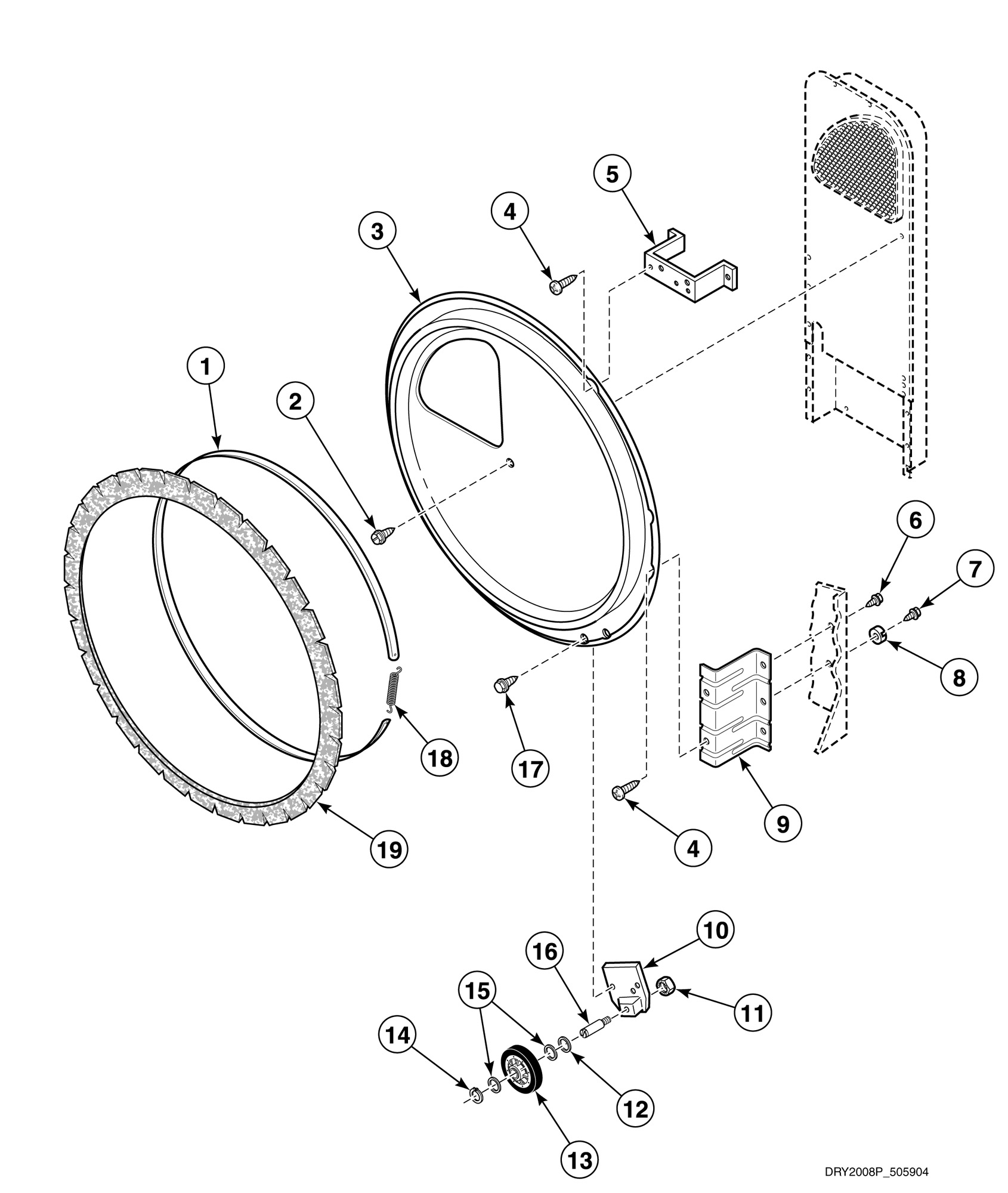

NE6313 Rear Bulkhead, Felt Seal and Cylinder Roller

Written by

Products

Position	Product
1	Seal Strap
2	Screw
3	Rear Bulkhead Assembly (Comment: Includes roller bracket)
4	Screw
6	Screw
7	Screw (Comment: Green)
8	Washer
10	Wire Harness Assembly
11	Nut
12	Washer
13	Cylinder Roller
14	Retaining Ring
15	Washer
16	Shaft
17	Screw
18	Spring
19	Seal Assembly
