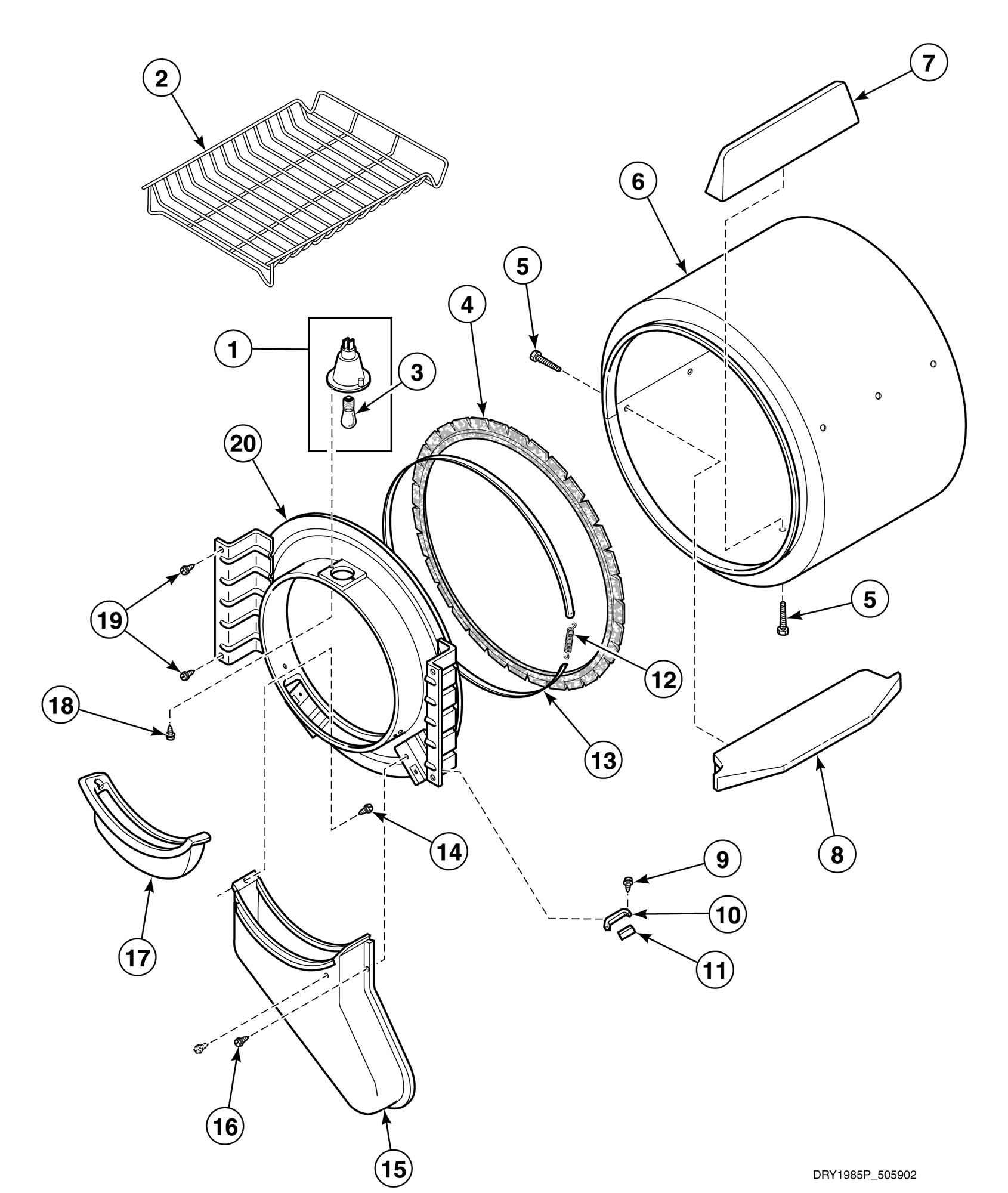

NE6813 Front Bulkhead, Air Duct, Felt Seal and Cylinder

NE6813 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Written by

in

NE6813 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Products

PositionProduct
3Drum Light Lamp (Comment: Use with 60953P Cylinder Light Assembly)
4Seal Assembly
5Screw
6Cylinder Assembly (Comment: Includes baffles)
7Cylinder Baffle (Comment: Short, 2 required)
8Cylinder Baffle (Comment: Extended, 1 required)
10Cylinder Glide
11Thin Pad
12Spring
13Seal Strap
14Screw
15Air Duct Assembly
16Screw
17Lint Filter
18Screw
19Screw
20Wire Harness Assembly
