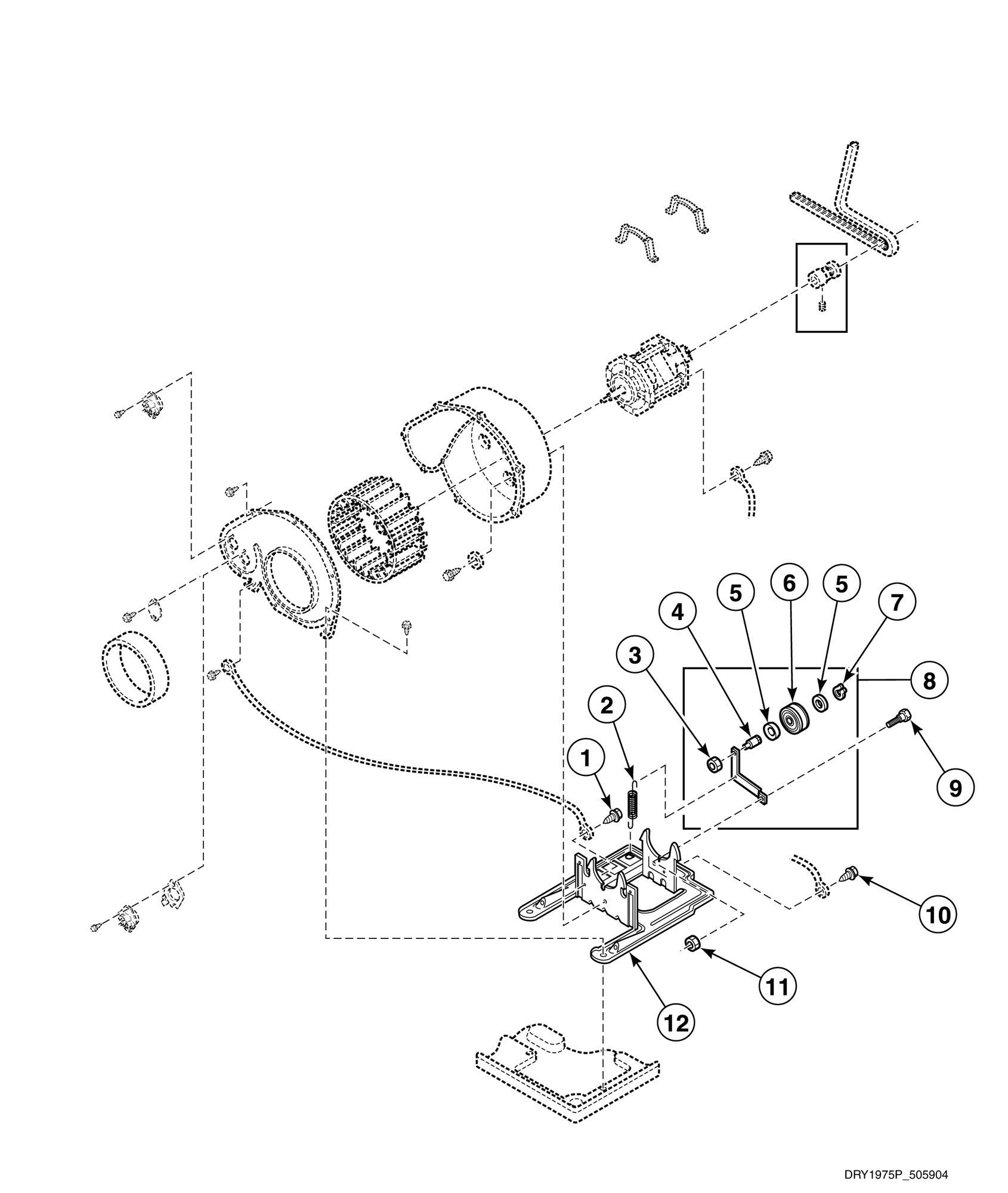

NE8333 Motor, Exhaust Fan and Belt (Drawing 2 of 2)
Written by
in
NE8333 Motor, Exhaust Fan and Belt (Drawing 2 of 2)
Products
| Position | Product |
|---|---|
| 1 | Screw |
| 2 | Idler Spring |
| 3 | Nut |
| 4 | Shaft |
| 5 | Washer |
| 6 | Idler Wheel and Bearing Assembly |
| 7 | Retaining Ring |
| 8 | Motor Mount and Idler Assembly |
| 9 | Wire Harness Assembly |
| 10 | Screw |
| 11 | Nut |
| 12 | Motor Mount |
