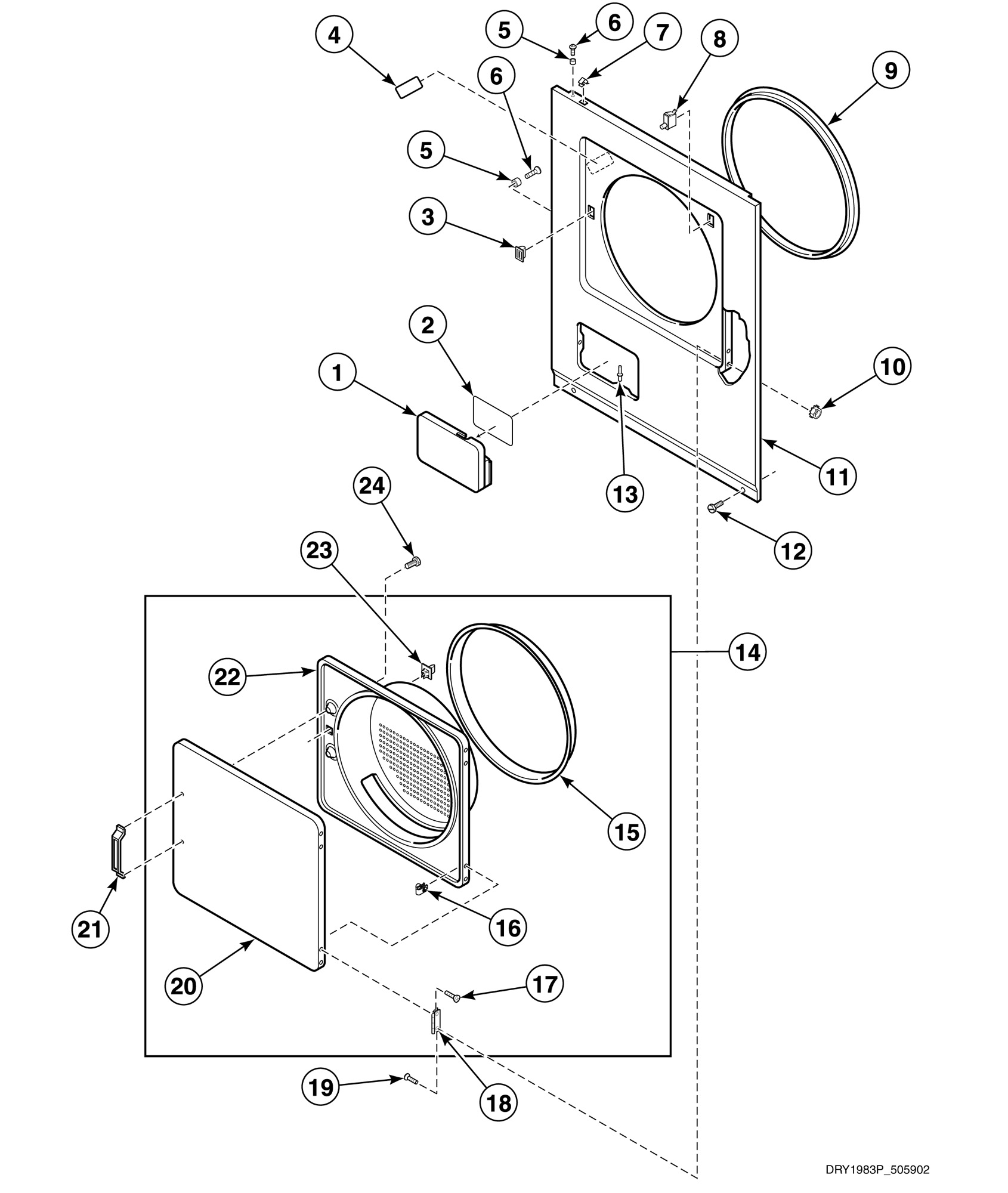

NE8833 Loading Door, Front Panel and Seals

Written by

Products

Position	Product
2	Gas Clearance Label
3	Door Catch Assembly
4	Warning/Caution Label
5	Panel Locator
6	Screw
7	Speed Clip
8	Switch
9	Front Panel Seal
10	Nut
11	Front Panel Assembly (Comment: White)
12	Screw
13	Support Barrel
15	Door Seal
16	Nut
17	Screw
18	Hinge
19	Screw
21	Door Pull
22	Wire Harness Assembly
23	Door Strike
24	Screw
