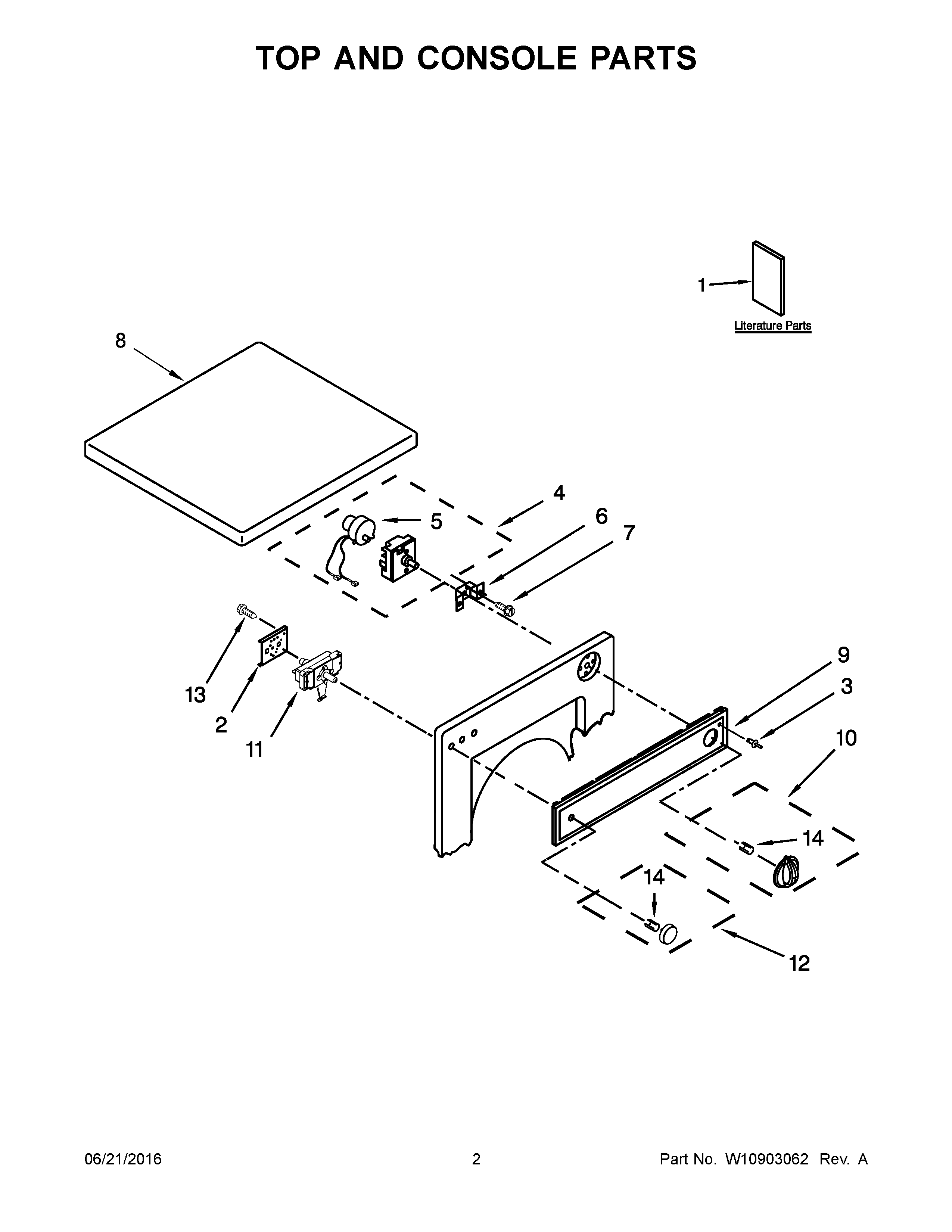

NEC3120FW0 02 – TOP AND CONSOLE PARTS

NEC3120FW0 02 – TOP AND CONSOLE PARTS

Written by

in

NEC3120FW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10773366
1A	MAY W10828140
2	MAY 3406860
3	RIVET, POP
4	MAY 8563881
5	LINER (NOT A SERVICEABLE PART)
6	MAY 348171
7	SCREW
8	MAY 345703
9	MAY W10772591
10	ASSEMBLY, TIMER KNOB (WHITE)
11	MAY W10503561
12	KNOB, PUSH TO START (WHITE)
13	MAY 339554
14	CLIP, SPRING
