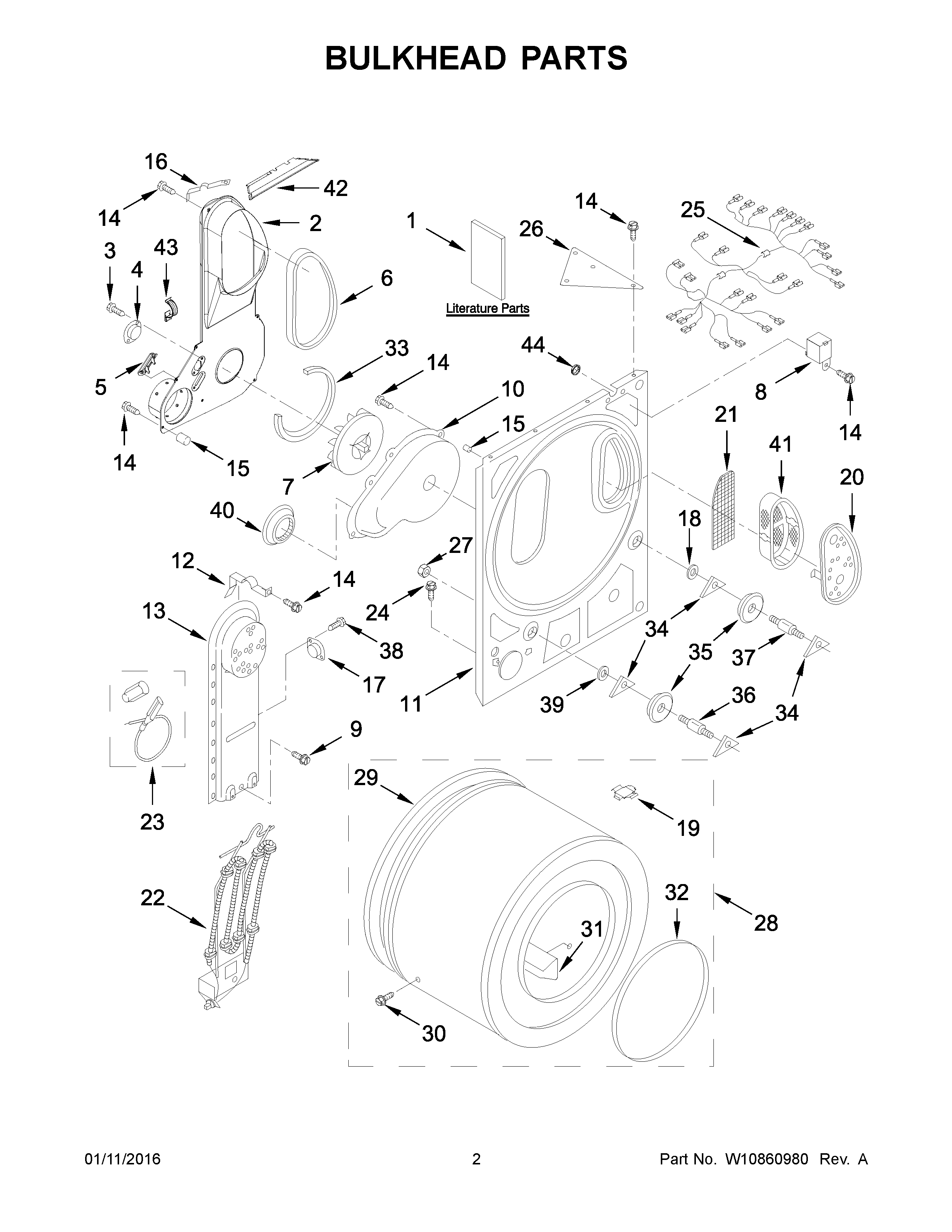

NEC3240FW0 02 – BULKHEAD PARTSadmin2025-04-26T12:40:26+00:00NEC3240FW0 02 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1A | MAY W10488815 |
| 1 | MAY W10773360 |
| 2 | MAY 696545 |
| 3 | MAY 8533971 |
| 4 | MAY 3398128 |
| 5 | Fuse, Thermal (91 C) |
| 6 | MAY 339956 |
| 7 | MAY 696426 |
| 8 | MAY W10503559 |
| 9 | Screw |
| 10 | MAY 696419 |
| 11 | MAY 695931 |
| 12 | CLIP HEATER BOX |
| 13 | MAY 3401380 |
| 14 | SCREW |
| 15 | CAP |
| 16 | MAY 9830393 |
| 17 | THERMOSTAT, HIGH LIMIT (200~/160F) |
| 18 | WASHER |
| 19 | Plug, Drum Hole |
| 20 | COVER, LINT SCREEN OUTLET |
| 21 | LINER (NOT A SERVICEABLE PART) |
| 22 | MAY 3403586 |
| 23 | BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE |
| 24 | MAY 342202 |
| 25 | WIRING HARNESS (INCLUDES FUSE) |
| 26 | GUSSET |
| 27 | MAY W10298789 |
| 28 | DRUM ASSEMBLY COMPLETE |
| 29 | SEAL, DRUM REAR |
| 30 | MAY W10219342 |
| 31 | BAFFLE, DRUM |
| 32 | RING, BEARING |
| 33 | SEAL, FAN SCROLL |
| 34 | WASHER, TRI RING |
| 35 | MAY 3397590 |
| 36 | MAY W10359269 |
| 37 | MAY W10359270 |
| 38 | SCREW,8-18 X 3/8 |
| 39 | WASHER |
| 40 | MAY W10389567 |
| 41 | MAY 8531964 |
| 42 | MAY W10524700 |
| 43 | Clip |
| 44 | MAY 8066084 |
