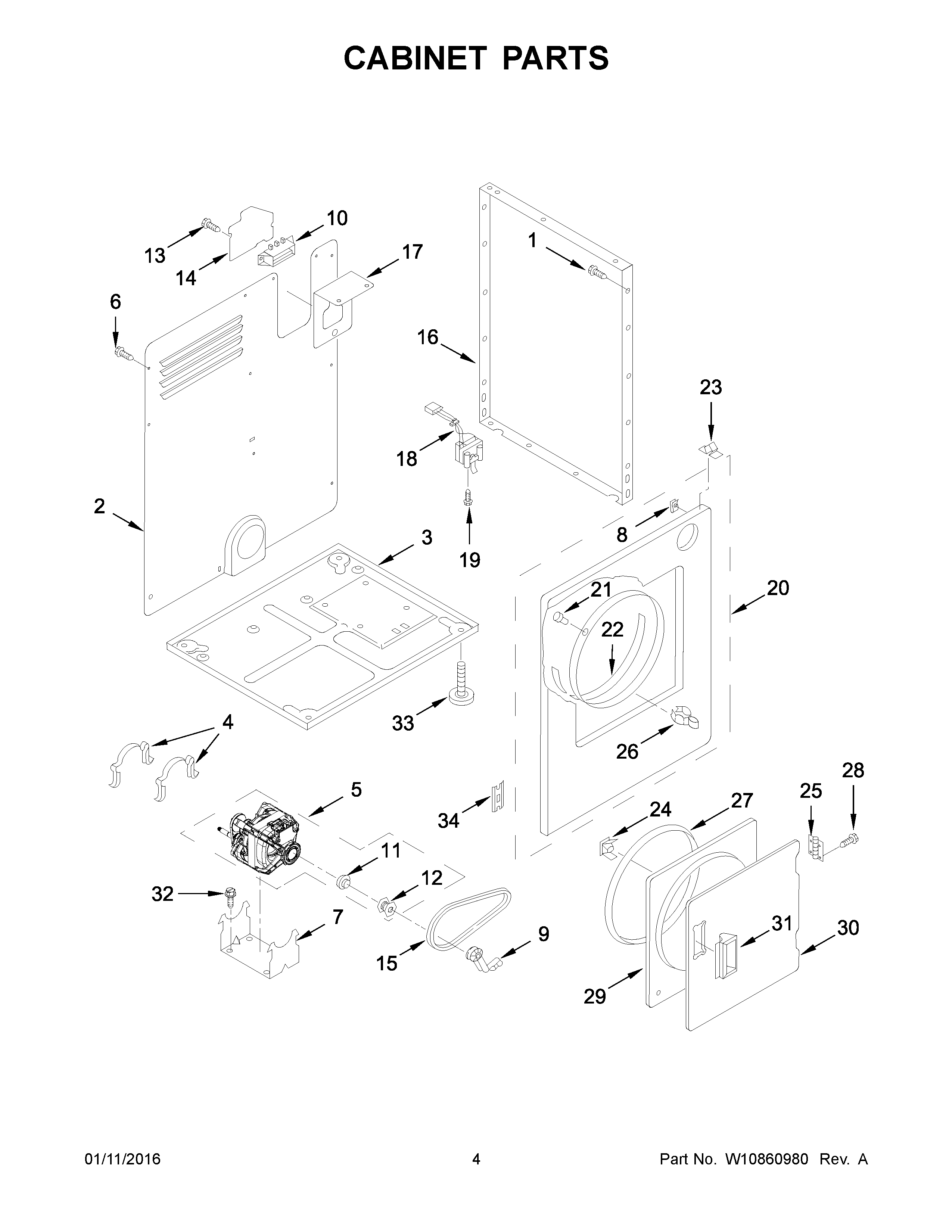

NEC3240FW0 03 – CABINET PARTS

NEC3240FW0 03 – CABINET PARTS

Written by

in

NEC3240FW0 03 – CABINET PARTS

Products

Position	Product
1	SCREW
2	MAY 695201
3	MAY 348726
4	MAY 660658
5	MOTOR, MAIN DRIVE (60 HZ)
6	MAY 8533974
7	BASE, MOTOR
8	Clip, Ground
9	IDLER ASSEMBLY
10	MAY 3397659
11	MAY 3393657
12	MAY 8066051
13	SCREW, 10-16 X 1/2
14	MAY W10509545
15	MAY 8066064
16	MAY 348705
17	SUPPORT, TERMINAL BLOCK
18	Door Switch Assembly
19	SCREW
20	MAY 8066229
21	Clip, Felt Pad
22	SEAL AND BEARING ASSEMBLY
23	LOCK TOP
24	DOOR CATCH ASSEMBLY
25	HINGE AND PIN ASSEMBLY
26	MAY 696144
27	MAY W10823581
28	MAY 342055
29	MAY 695656
30	MAY 348205
31	MAY 8562104
32	SCREW
33	MAY W10001130
34	CLIP, FRONT PANEL
