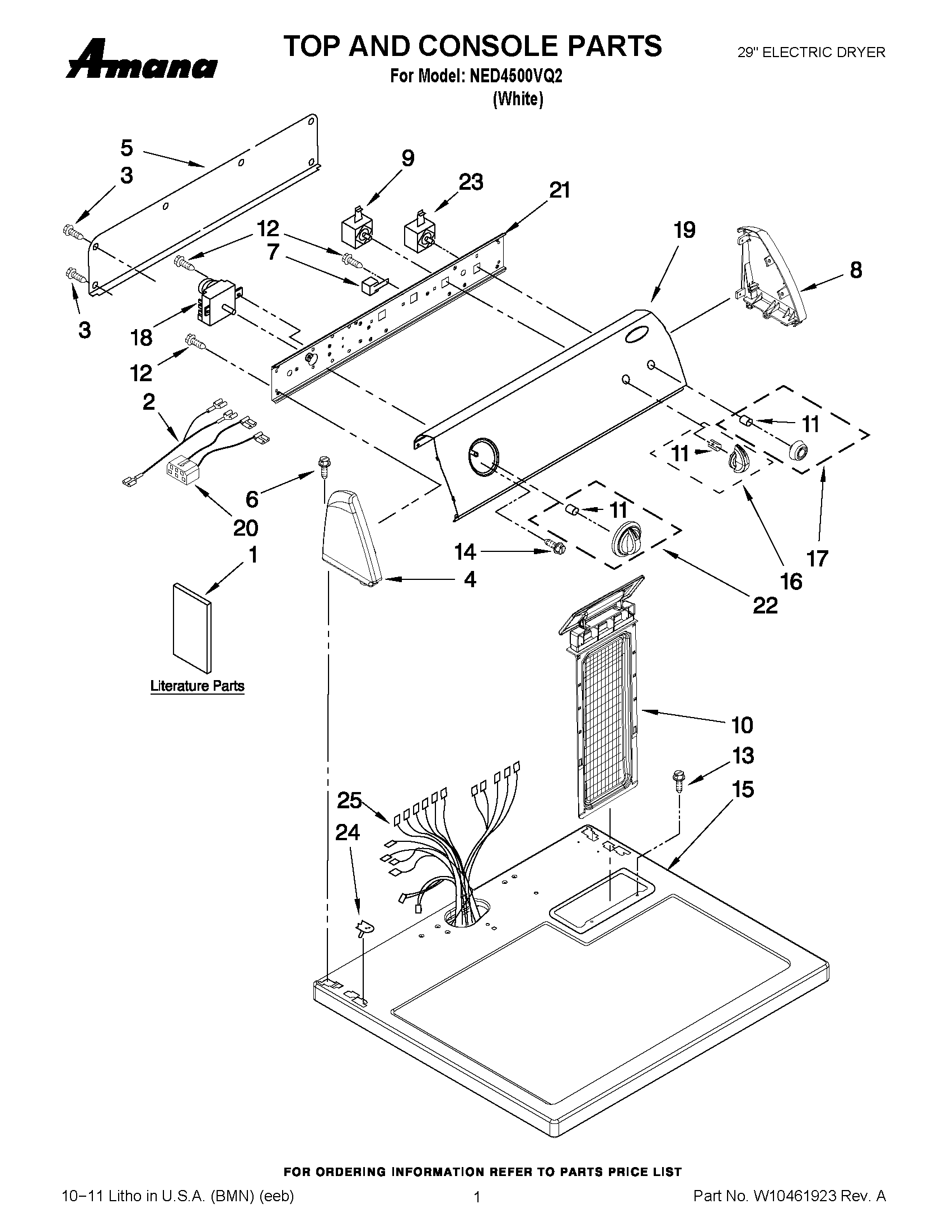

NED4500VQ2 01 – TOP AND CONSOLE PARTS

NED4500VQ2 01 – TOP AND CONSOLE PARTS

Written by

in

NED4500VQ2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10287572
1	MAY W10096987
1	MAY 8576796
2	Wire, Jumper Black (PTS)
3	Screw
4	MAY 8271365
5	MAY 8274261
6	Screw, Console
7	MAY 694419
8	MAY 8271359
9	Switch, Wrinkle Guard
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 3348629
13	SCREW
14	MAY 8533951
15	MAY 8557930
16	MAY W10196503
17	MAY W10196504
18	MAY 8299779
19	Panel, Control
20	MAY 3401695
21	MAY 8271418
22	Timer Knob Assembly
23	MAY 3977456
24	Nut, Push-In
25	MAY W10450292
