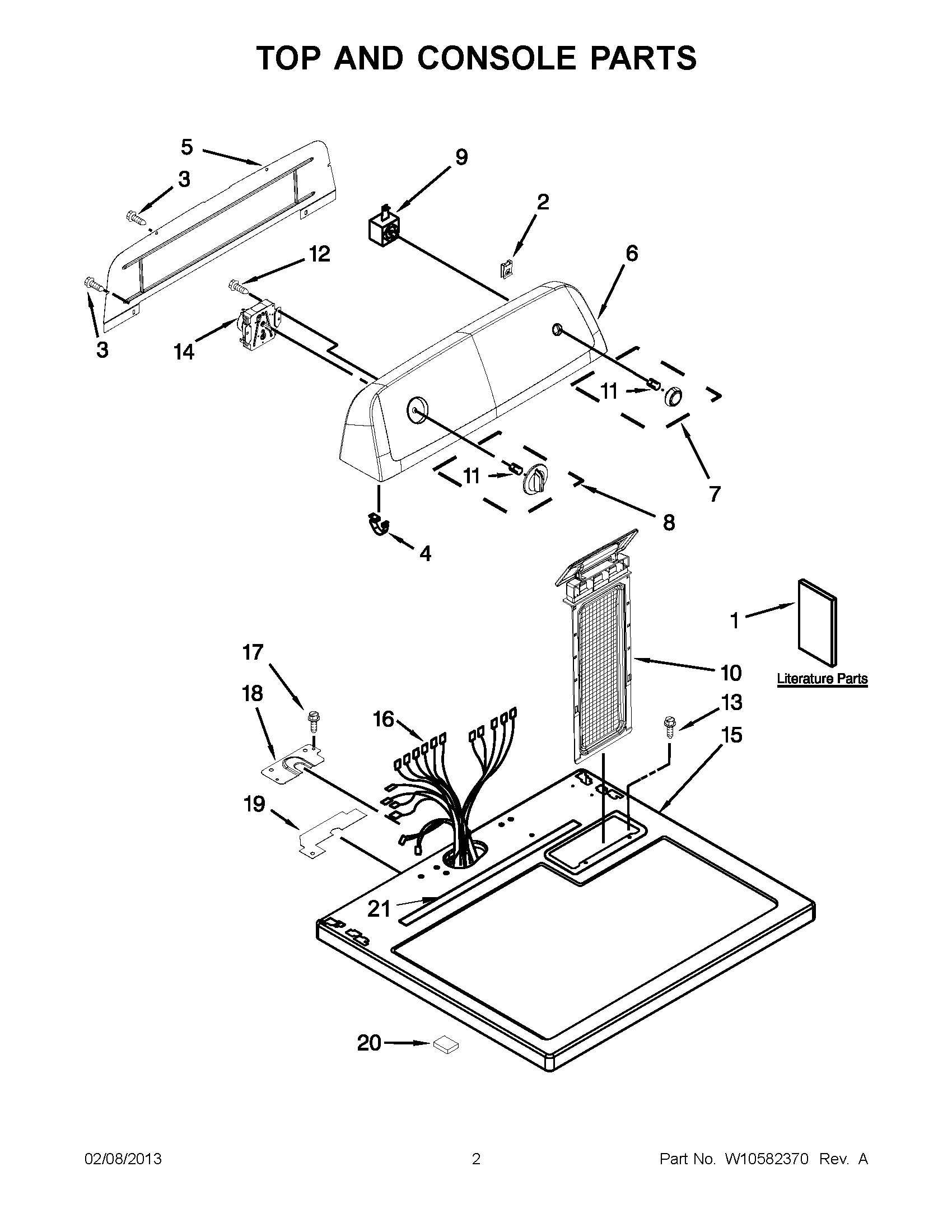

NED4600YQ1 01 – TOP AND CONSOLE PARTS

NED4600YQ1 01 – TOP AND CONSOLE PARTS

Written by

in

NED4600YQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1MAY W10514172
1MAY W10185989
2NUT, "U"
3Screw
4MAY 8312709
5MAY W10416486
6MAY W10097039
7KNOB, PUSH TO START (WHITE)
8ASSEMBLY, TIMER KNOB (WHITE)
9MAY W10420741
10Screen, Lint (White)
11CLIP, SPRING
12MAY 3348629
13SCREW
14MAY W10436308
15MAY 8559800
16MAY W10450286
17SCREW, 10-16 X 1/2
18MAY W10112578
19Seal-Harness
20MAY 3389682
21MAY W10316616
