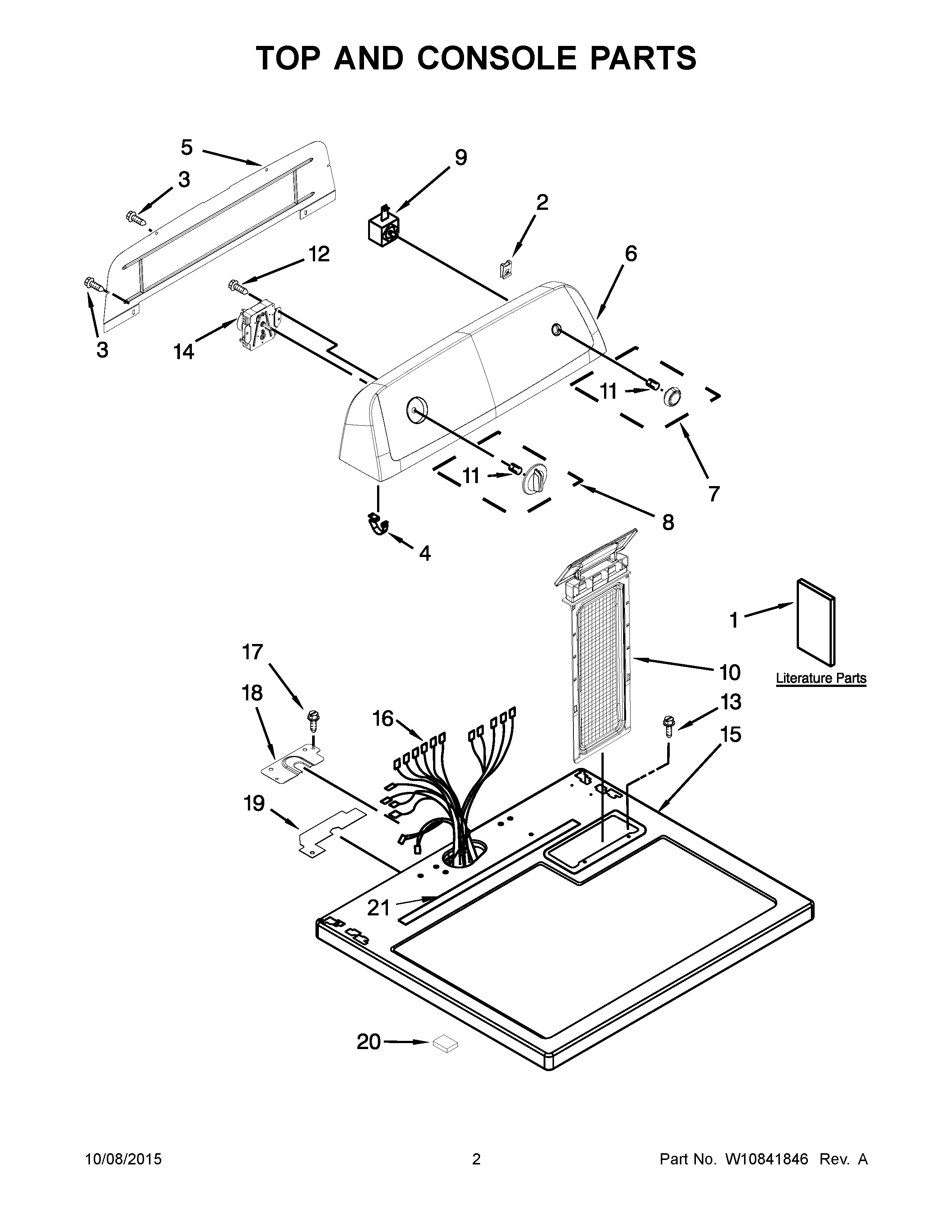

NED4655EW1 02 – TOP AND CONSOLE PARTS

NED4655EW1 02 – TOP AND CONSOLE PARTS

Written by

in

NED4655EW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AUSE AND CARE GUIDE
1BMAY W10185989
1MAY W10514172
2NUT, "U"
3Screw
4MAY 8312709
5MAY W10416486
6MAY W10097039
7KNOB, PUSH TO START (WHITE)
8MAY W10711289
9MAY W10420741
10MAY W10717210
11CLIP, SPRING
12MAY 3348629
13SCREW
14MAY W10745655
15MAY 8559800
16MAY W10450286
17SCREW, 10-16 X 1/2
18MAY W10112578
19Seal-Harness
20MAY 3389682
21MAY W10316616
