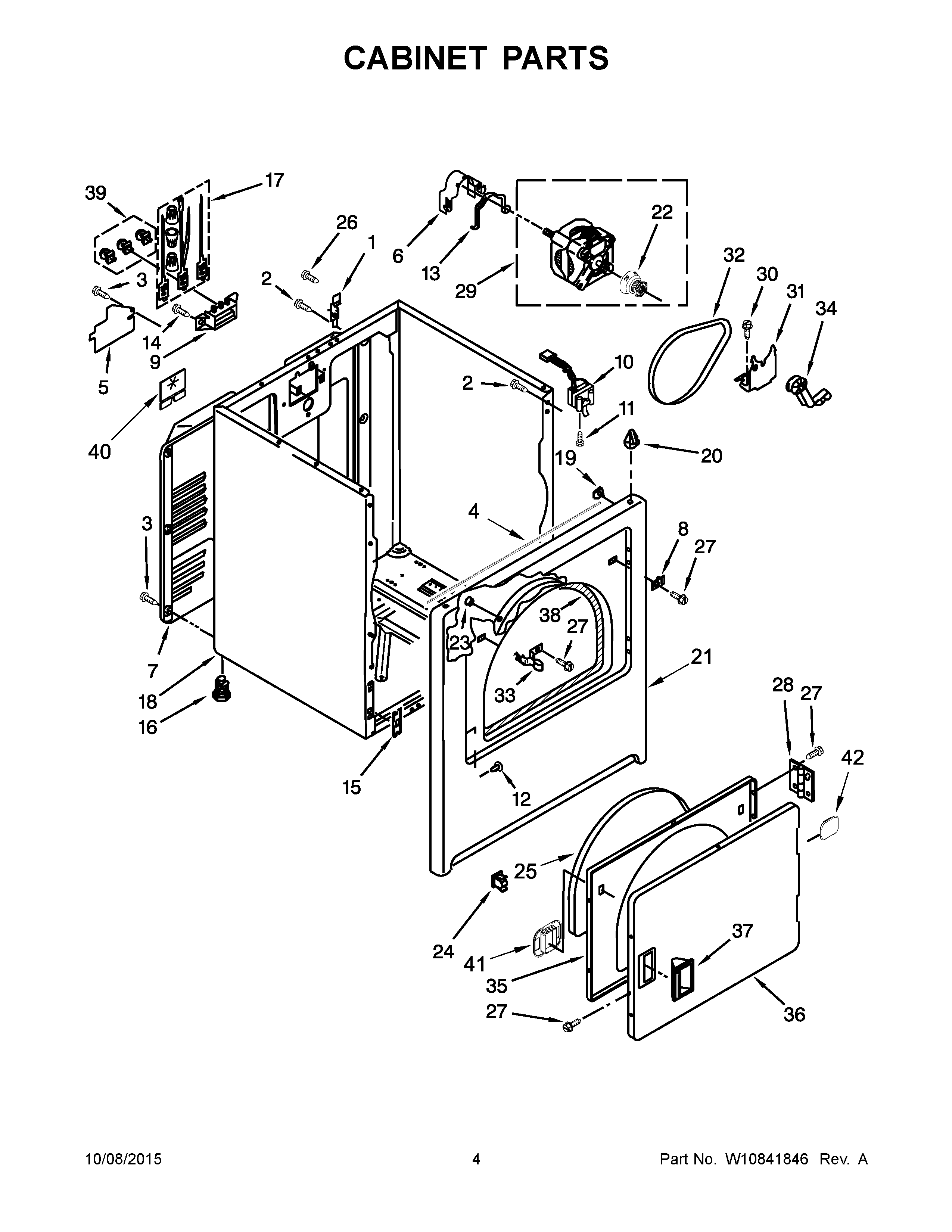

NED4655EW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Hinge, Top
2	SCREW
3	Screw
4	MAY W10224768
5	MAY W10571619
6	Clamp, Motor (With Shield)
7	MAY W10571724
8	PLUG, STRIKE
9	MAY 3397659
10	MAY W10237959
11	SCREW
12	PLUG, HINGE HOLES
13	CLAMP, MOTOR MOUNT
14	SCREW, 10-16 X 1/2
15	CLIP, FRONT PANEL
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	PANEL, FRONT (WHITE)
22	Pulley, Motor
23	Clip, Felt Pad
24	MAY W10610880
25	SEAL, DOOR
26	SCREW
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	MOTOR ASSEMBLY
30	BOLT
31	MAY 348780
32	MAY W10131364
33	Strike, Door
34	IDLER ASSEMBLY
35	DOOR, INNER
36	DOOR, FRONT (WHITE)
37	HANDLE, DOOR (WHITE)
38	ASSEMBLY, SEAL AND BEARING
39	MAY 279393
40	PAD, POWER CORD
41	BEZEL, DOOR CATCH
42	COVER, DOOR CATCH
