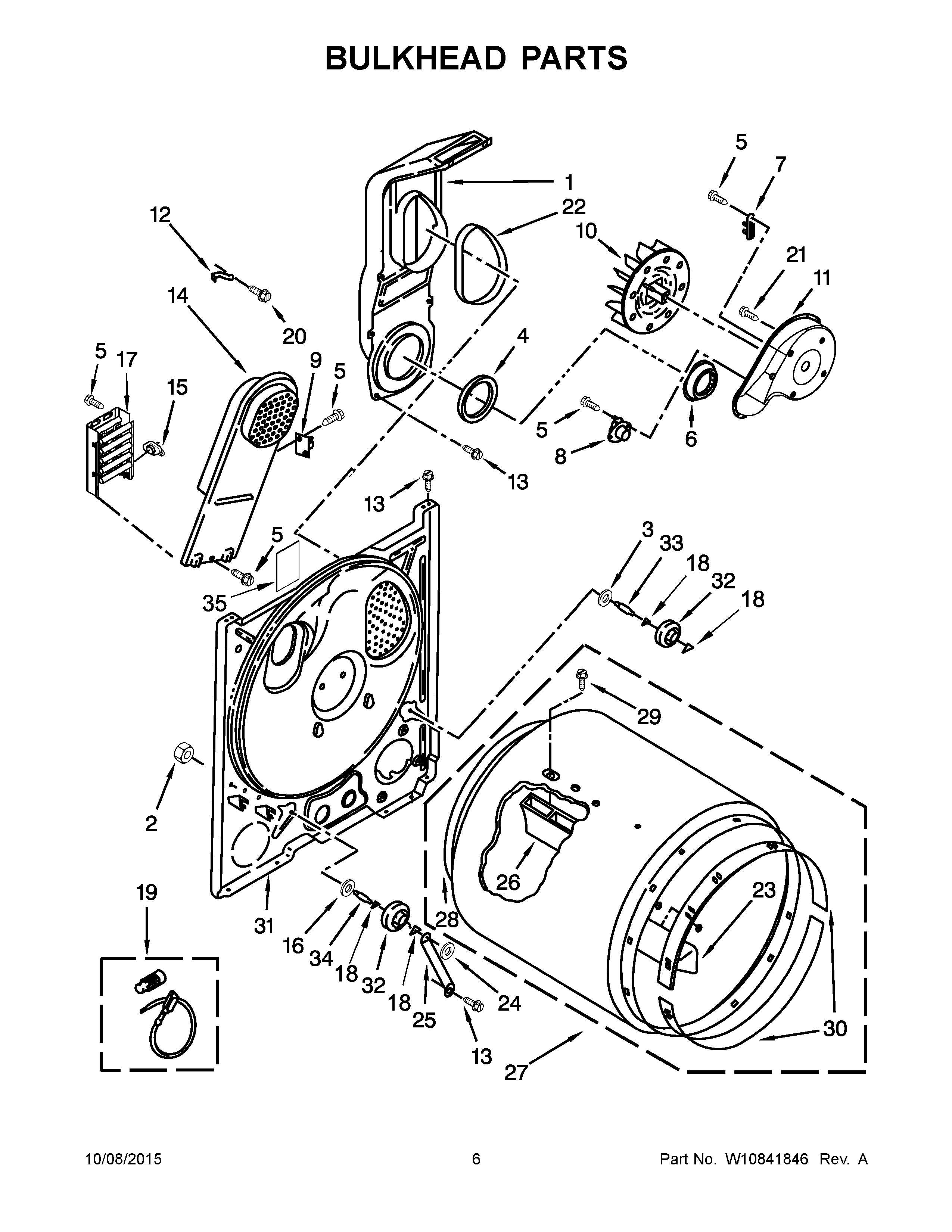

NED4655EW1 04 – BULKHEAD PARTSadmin2025-04-26T12:41:05+00:00NED4655EW1 04 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | MAY 348368 |
| 2 | MAY W10298789 |
| 3 | WASHER |
| 4 | MAY 347139 |
| 5 | SCREW,8-18 X 3/8 |
| 6 | MAY W10389567 |
| 7 | Fuse, Thermal (91 C) |
| 8 | MAY 3387134 |
| 9 | MAY 3977393 |
| 10 | Wheel, Blower |
| 11 | MAY 8577230 |
| 12 | MAY 8066155 |
| 13 | SCREW |
| 14 | MAY 8541818 |
| 15 | MAY 3977767 |
| 16 | WASHER |
| 17 | ELEMENT, HEATER |
| 18 | WASHER, TRI RING |
| 19 | BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE |
| 20 | Screw |
| 21 | SCREW |
| 22 | MAY 339956 |
| 23 | BAFFLE, DRUM (SHORT) |
| 24 | NUT, PUSH ON |
| 25 | MAY 3976434 |
| 26 | BAFFLE, DRUM (LONG) |
| 27 | ASSEMBLY, DRUM (COMPLETE) |
| 28 | MAY W10725245 |
| 29 | MAY W10219342 |
| 30 | Bearing, Ring |
| 31 | MAY W10714475 |
| 32 | MAY 3397590 |
| 33 | MAY W10359269 |
| 34 | MAY W10359270 |
| 35 | PAD, FOAM |
