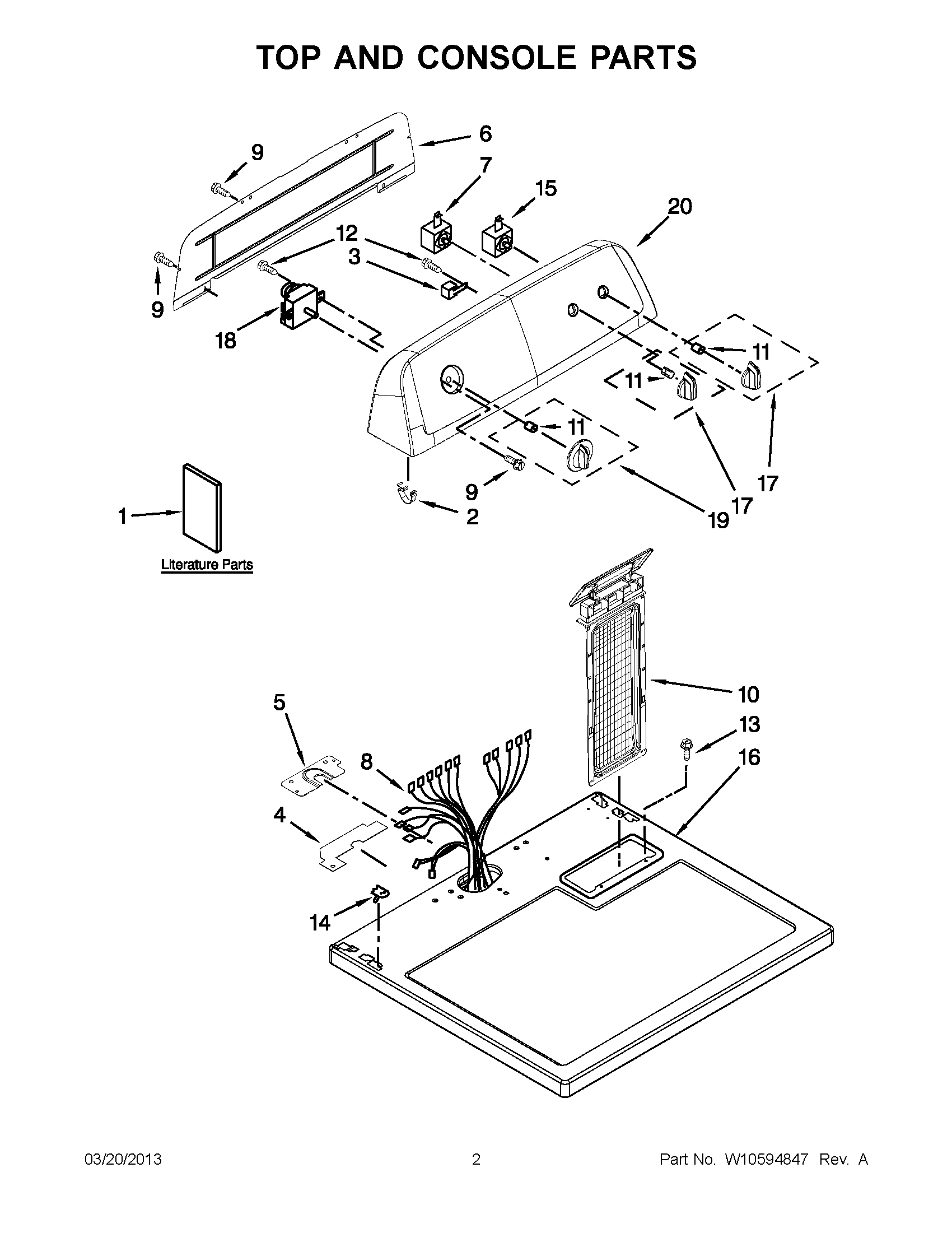

NED4700YQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1	MAY W10185985
1	MAY W10514172
2	MAY 8312709
3	MAY 694419
4	Seal-Harness
5	MAY W10112578
6	MAY W10416486
7	MAY W10420747
8	MAY W10450289
9	Screw
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 3348629
13	SCREW
14	Nut, Push-In
15	MAY W10446920
16	MAY 8559800
17	MAY W10453947
18	MAY W10436303
19	ASSEMBLY, TIMER KNOB (WHITE)
20	PANEL, CONTROL (WHITE)
