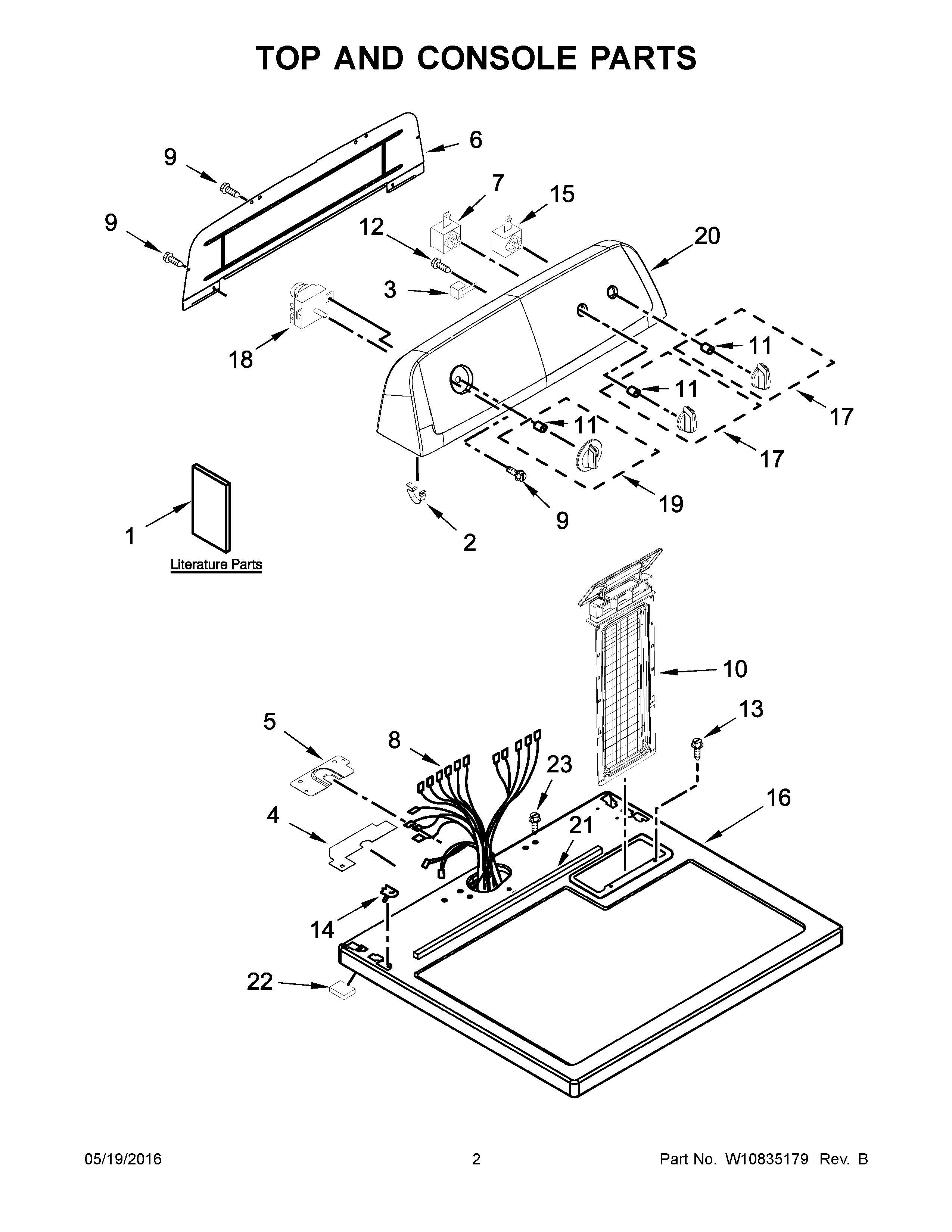

NED4705EW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W10185985
1A	USE AND CARE GUIDE
1	MAY W10514172
2	MAY 8312709
3	MAY 694419
4	Seal-Harness
5	MAY W10112578
6	MAY W10416486
7	MAY W10420747
8	MAY W10450289
9	Screw
10	MAY W10717210
11	CLIP, SPRING
12	MAY 3348629
13	SCREW
14	NUT, "U"
15	MAY W10446920
16	MAY 8559800
17	MAY W10453947
18	MAY W10436303
19	MAY W10711289
20	PANEL, CONTROL (WHITE)
21	MAY 3389682
22	MAY W10316616
23	MAY 8533974
