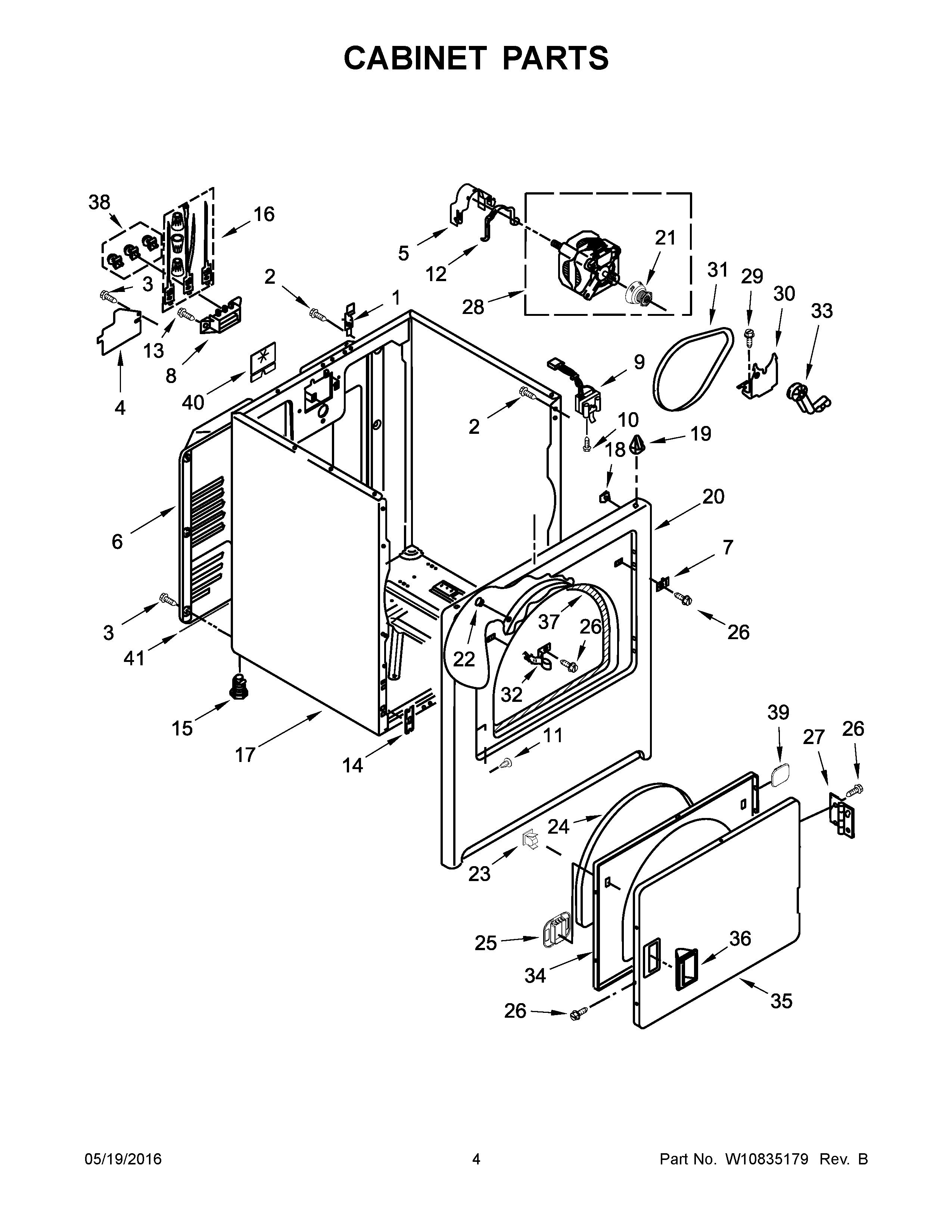

NED4705EW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Hinge, Top
2	SCREW
3	Screw
4	MAY W10571619
5	Clamp, Motor (With Shield)
6	MAY W10571724
7	PLUG, STRIKE
8	MAY 3397659
9	SWITCH, DOOR
10	SCREW
11	PLUG, HINGE HOLES
12	CLAMP, MOTOR MOUNT
13	SCREW, 10-16 X 1/2
14	CLIP, FRONT PANEL
15	MAY 3392100
16	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
17	CABINET (WHITE)
18	Clip, Ground
19	MAY 8066092
20	PANEL, FRONT (WHITE)
21	Pulley, Motor
22	Clip, Felt Pad
23	MAY W10610880
24	SEAL, DOOR
25	BEZEL, DOOR CATCH
26	MAY 342055
27	ASSEMBLY, HINGE AND PIN
28	MOTOR ASSEMBLY
29	BOLT
30	MAY 348780
31	MAY W10131364
32	Strike, Door
33	IDLER ASSEMBLY
34	DOOR, INNER
35	DOOR, FRONT (WHITE)
36	HANDLE, DOOR (WHITE)
37	ASSEMBLY, SEAL AND BEARING
38	MAY 279393
39	COVER, DOOR CATCH
40	PAD, POWER CORD
41	MAY W10224768
