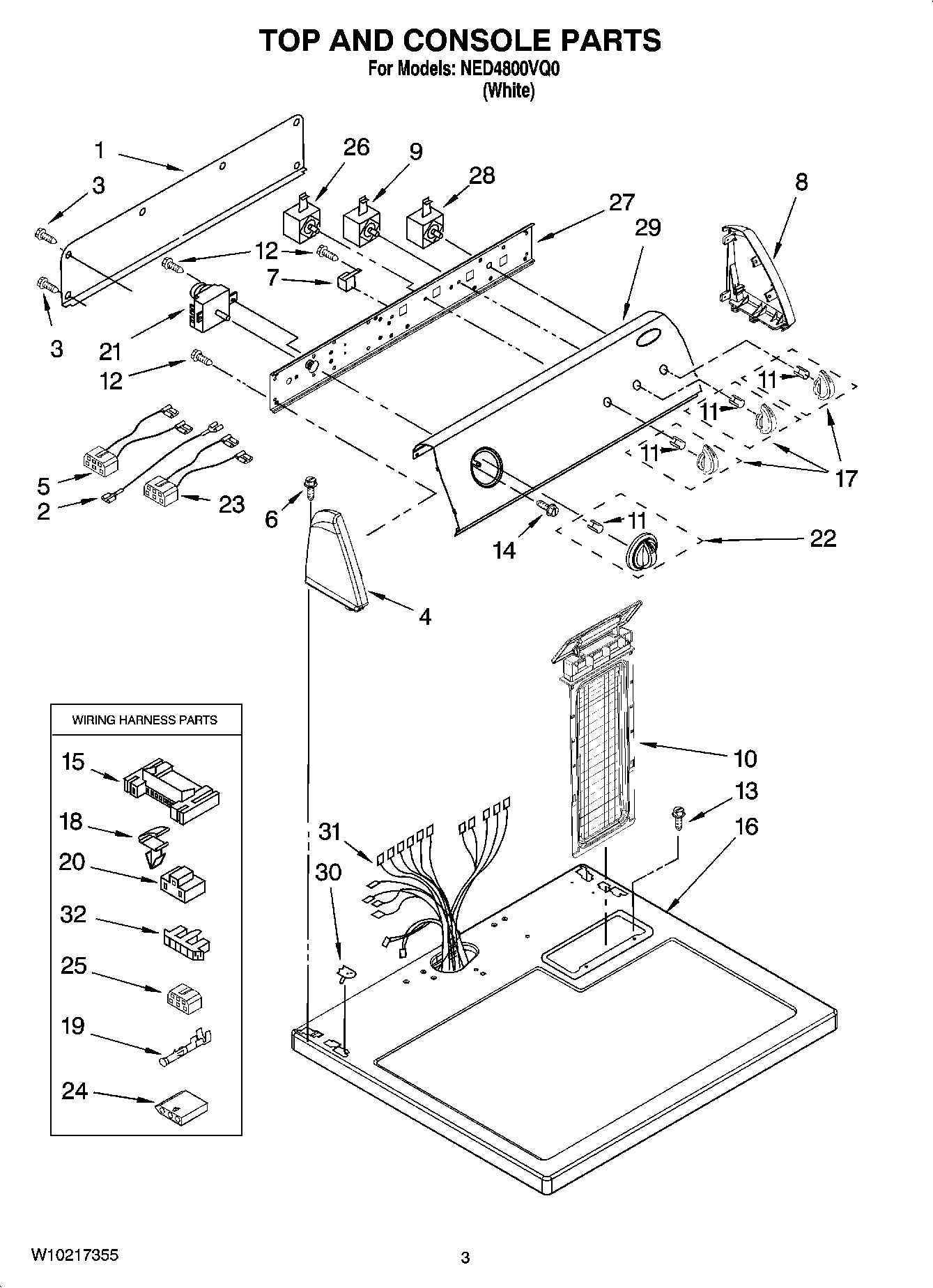

NED4800VQ0 02 – TOP AND CONSOLE PARTS

NED4800VQ0 02 – TOP AND CONSOLE PARTS

Written by

in

NED4800VQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY 8274261
2Wire, Jumper (Black)
3Screw
4MAY 8271365
5Jumper, Three Temperature
6Screw, Console
7MAY 694419
8MAY 8271359
9MAY 3405156
10Screen, Lint (White)
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY 8533951
15CONNECTOR (MOTOR)
16MAY 8557930
17MAY W10196503
18CLIP, HARNESS
19Terminal
20Connector (PTS) Relay
21MAY 3979618
22Timer Knob Assembly
23Jumper, Gaurd On/Off
24MAY 3936144
25Connector
26Switch, Temperature
27MAY 8271418
28MAY 3398095
29MAY W10086735
30Nut, Push-In
31MAY 8576503
32Connector-Timer
