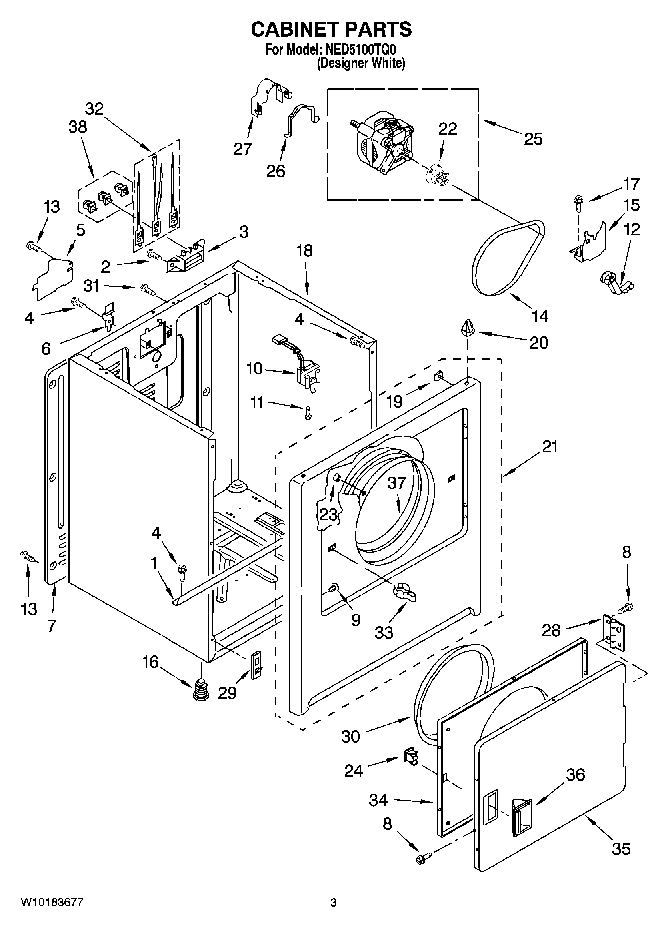

NED5100TQ0 02 – CABINET PARTS

Products

Position	Product
1	MAY 8541400
2	SCREW, 10-16 X 1/2
3	MAY 3397659
4	SCREW
5	MAY 3396795
6	Hinge, Top
7	MAY 3396807
8	MAY 342055
9	PLUG, HINGE HOLES
10	Door Switch Assembly
11	SCREW
12	IDLER ASSEMBLY
13	Screw
14	MAY W10131364
15	MAY 348780
16	MAY 3392100
17	BOLT
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY 3403571
22	Pulley, Motor
23	Clip, Felt Pad
24	Catch, Door
25	MAY 8066206
26	MAY 660658
27	Clamp, Motor (With Shield)
28	HINGE AND PIN ASSEMBLY
29	MAY 3394083
30	MAY 3405245
31	Screw, 8-18 x 5/8 (External Ground)
32	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
33	MAY 696144
34	MAY 3403371
35	MAY 3403361
36	Handle, Door (White)
37	MAY 8066124
38	MAY 279393
