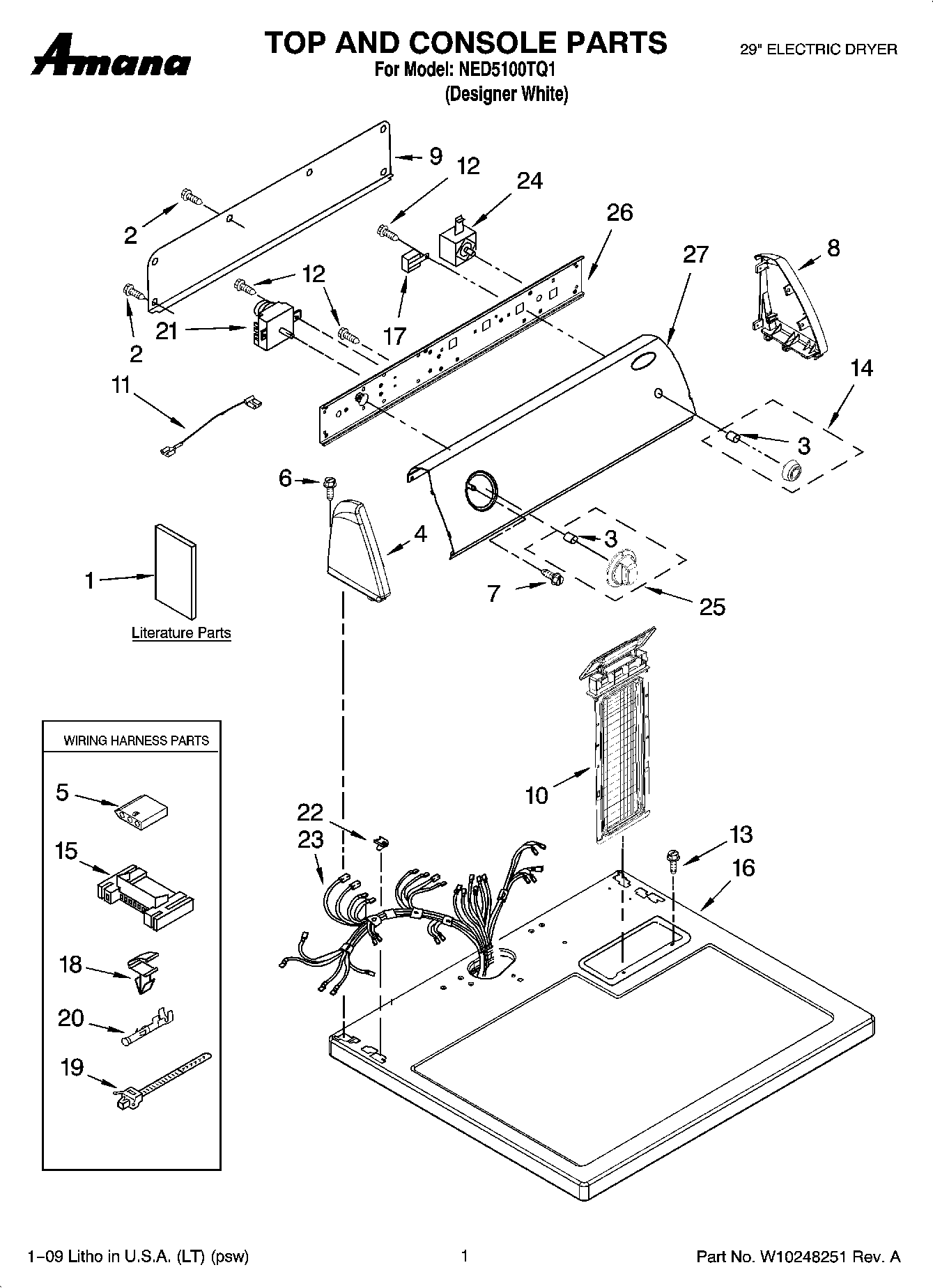

NED5100TQ1 01 – TOP AND CONSOLE PARTS

NED5100TQ1 01 – TOP AND CONSOLE PARTS

Written by

in

NED5100TQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10232964
1Instructions, Installation
1MAY W10150656
1MAY W10185979
2Screw
3CLIP, SPRING
4MAY 8271365
5MAY 3936144
6Screw, Console
7MAY 8533951
8MAY 8271359
9MAY 8274261
10MAY 8558467
11Wire, Jumper
12MAY 8533971
13SCREW
14Knob, Push-To-Start (White)
15CONNECTOR (MOTOR)
16MAY 8557930
17MAY 694419
18CLIP, HARNESS
19Tie, Cable
20Terminal
21Timer, 60 Hz.
22Nut, Push-In
23MAY W10186119
24MAY 3977456
25Timer Knob, Assembly (White)
26MAY 8271418
27MAY W10182636
