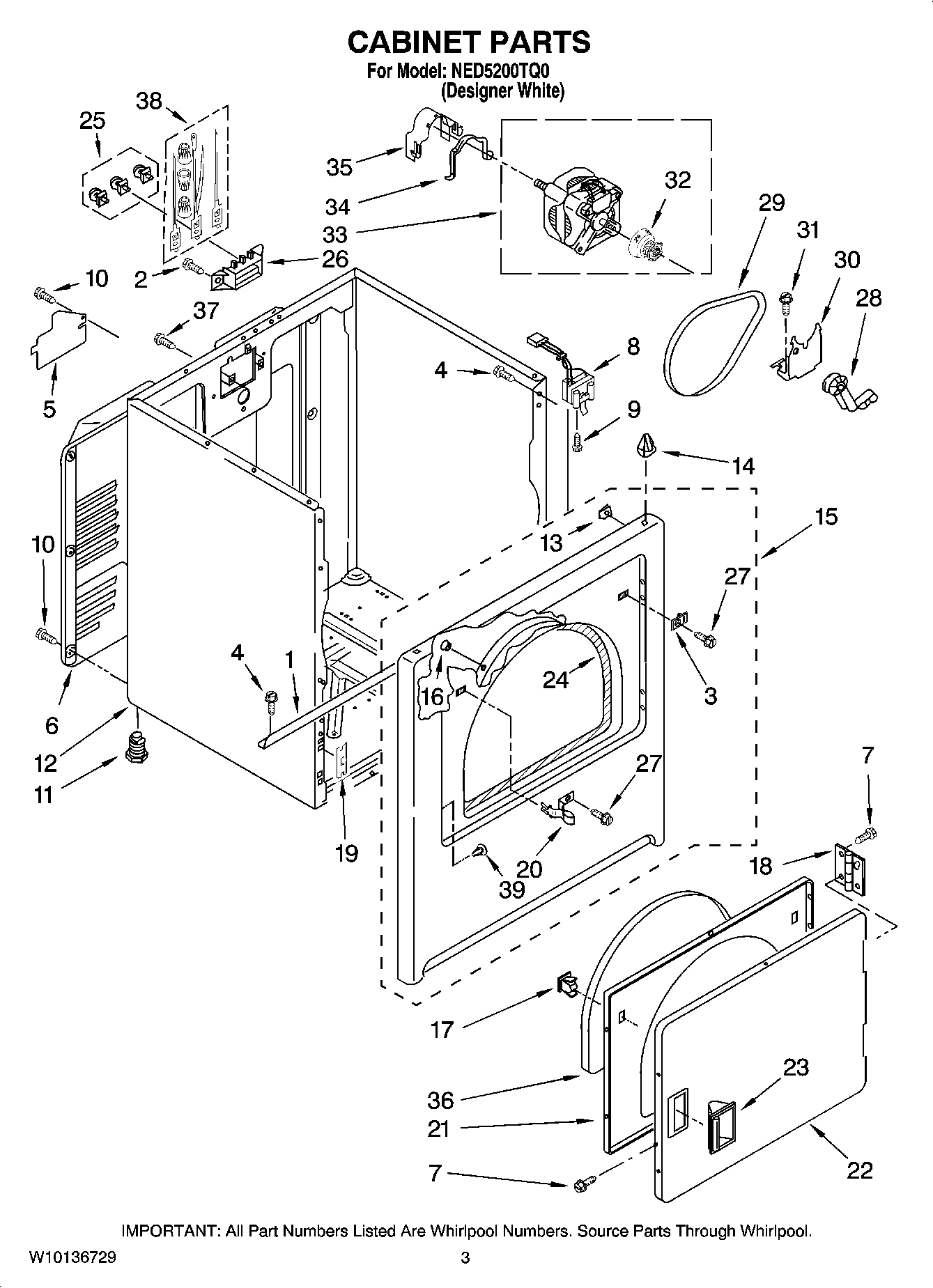

NED5200TQ0 02 – CABINET PARTS

Products

Position	Product
1	MAY 8541400
2	SCREW, 10-16 X 1/2
3	PLUG-STRIKE
4	SCREW
5	MAY 3396795
6	MAY 3396805
7	MAY 342055
8	MAY 3406109
9	SCREW
10	Screw
11	MAY 3392100
12	CABINET (WHITE)
13	Clip, Ground
14	LOCK, FRONT TOP
15	Panel, Front (White)
16	Clip, Felt Pad
17	DOOR CATCH ASSEMBLY
18	HINGE AND PIN ASSEMBLY
19	MAY 3394083
20	Strike, Door
21	Door, Rear
22	DOOR FRONT
23	Handle, Door (White)
24	MAY 3406129
25	MAY 279393
26	MAY 3397659
27	Hinge, Top
28	IDLER ASSEMBLY
29	MAY W10131364
30	MAY 348780
31	BOLT
32	Pulley, Motor
33	MAY 8066206
34	MAY 660658
35	Clamp, Motor (With Shield)
36	MAY 3405246
37	Screw, 8-18 x 5/8 (External Ground)
38	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
39	PLUG, HINGE HOLES
