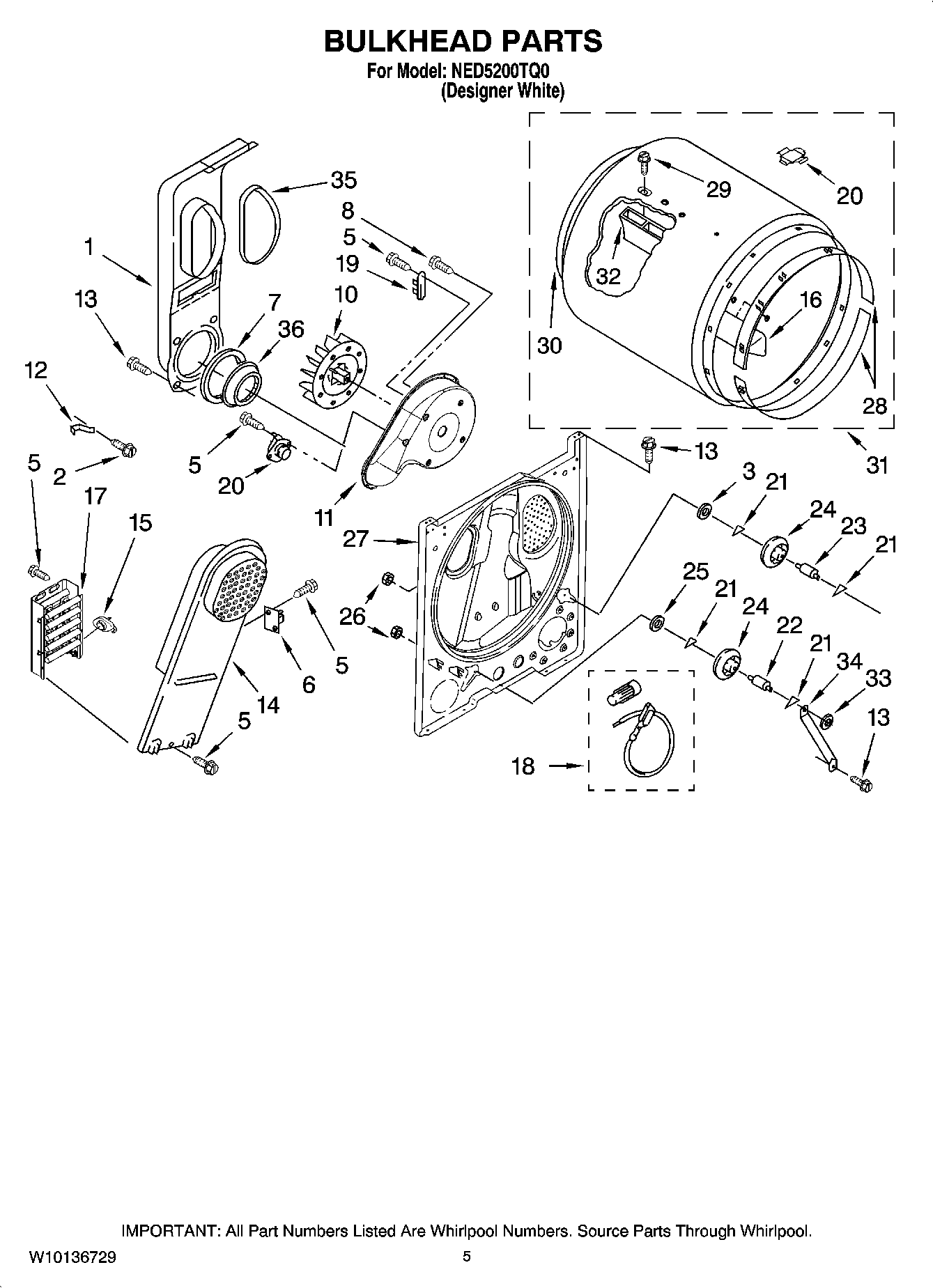

NED5200TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
	ACCESSORY PARTS, KIT, DRYER REPAIR
	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
	Dry Rack
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, BULK (1 QT. WHITE (UNCUT))
1	MAY 348368
2	Screw
3	Plug, Drum Hole
4	WASHER
5	SCREW,8-18 X 3/8
6	MAY 3977393
7	MAY 347139
8	SCREW
10	Wheel, Blower
11	MAY 8577230
12	MAY 8066155
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	BAFFLE, DRUM (SHORT)
17	MAY 3403585
18	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
19	Fuse, Thermal (91 C)
20	MAY 3387134
21	WASHER, TRI RING
22	MAY 3399506
23	MAY 3399507
24	MAY 3397590
25	WASHER
26	Nut, 3/8-16
27	MAY 3403491
28	Bearing, Ring
29	MAY W10109200
30	MAY 3406130
31	MAY 695587
32	BAFFLE, DRUM (LONG)
33	MAY 3976434
34	NUT, PUSH ON
35	MAY 339956
36	MAY 696302
