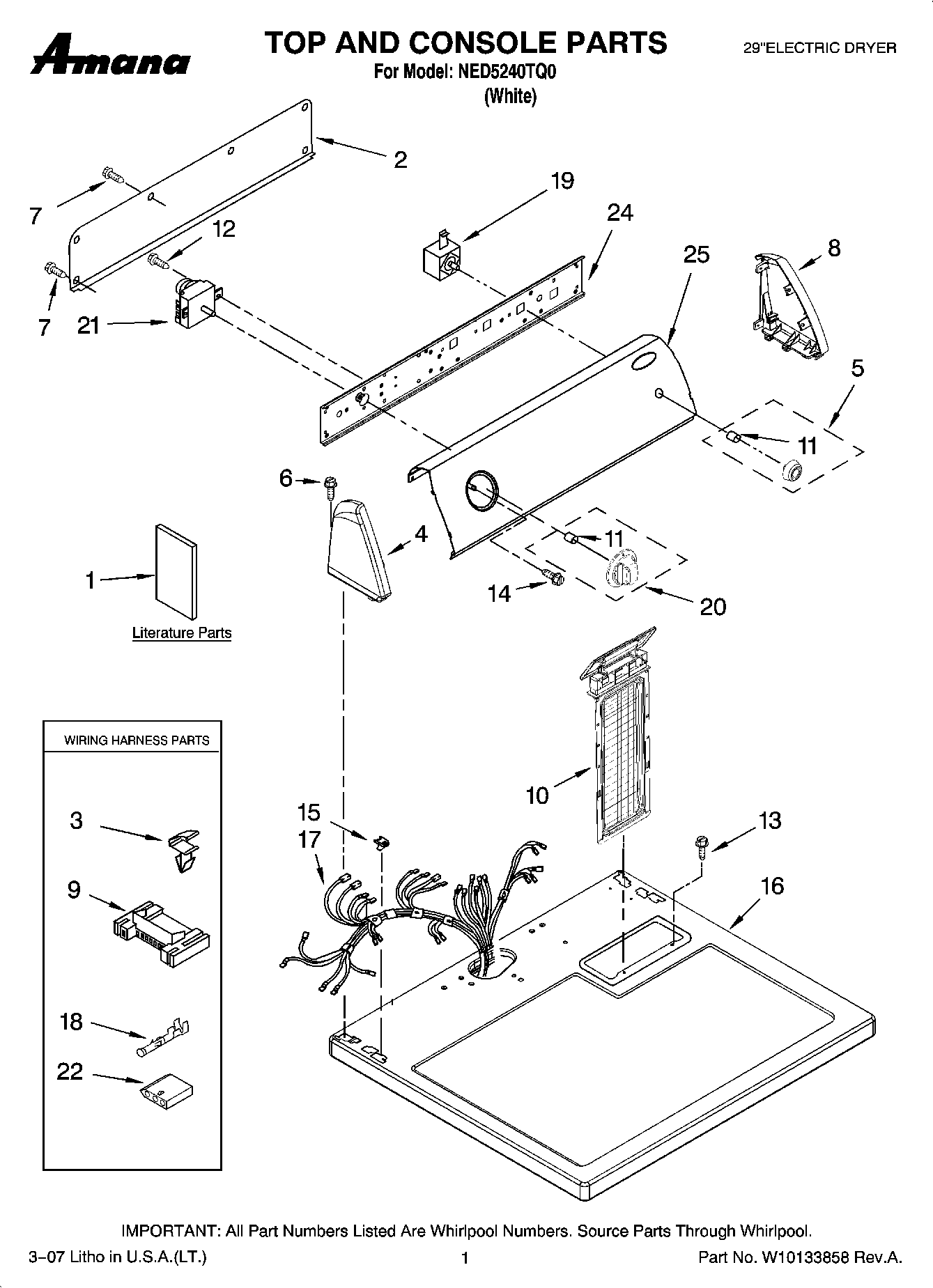

NED5240TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10089173
1	MAY W10088771
1	MAY W10088970
1	MAY 8576793
2	MAY 8274261
3	CLIP, HARNESS
5	Knob, Push-To-Start (White)
5	MAY 8271365
6	Screw, Console
7	Screw
8	MAY 8271359
9	CONNECTOR (MOTOR)
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8533951
15	Nut, Push-In
16	MAY 8557930
17	MAY 8576500
18	Terminal
19	MAY 3977456
20	Timer Knob, Assembly (White)
21	MAY 8299778
22	MAY 3936144
24	MAY 8271418
25	MAY W10086672
