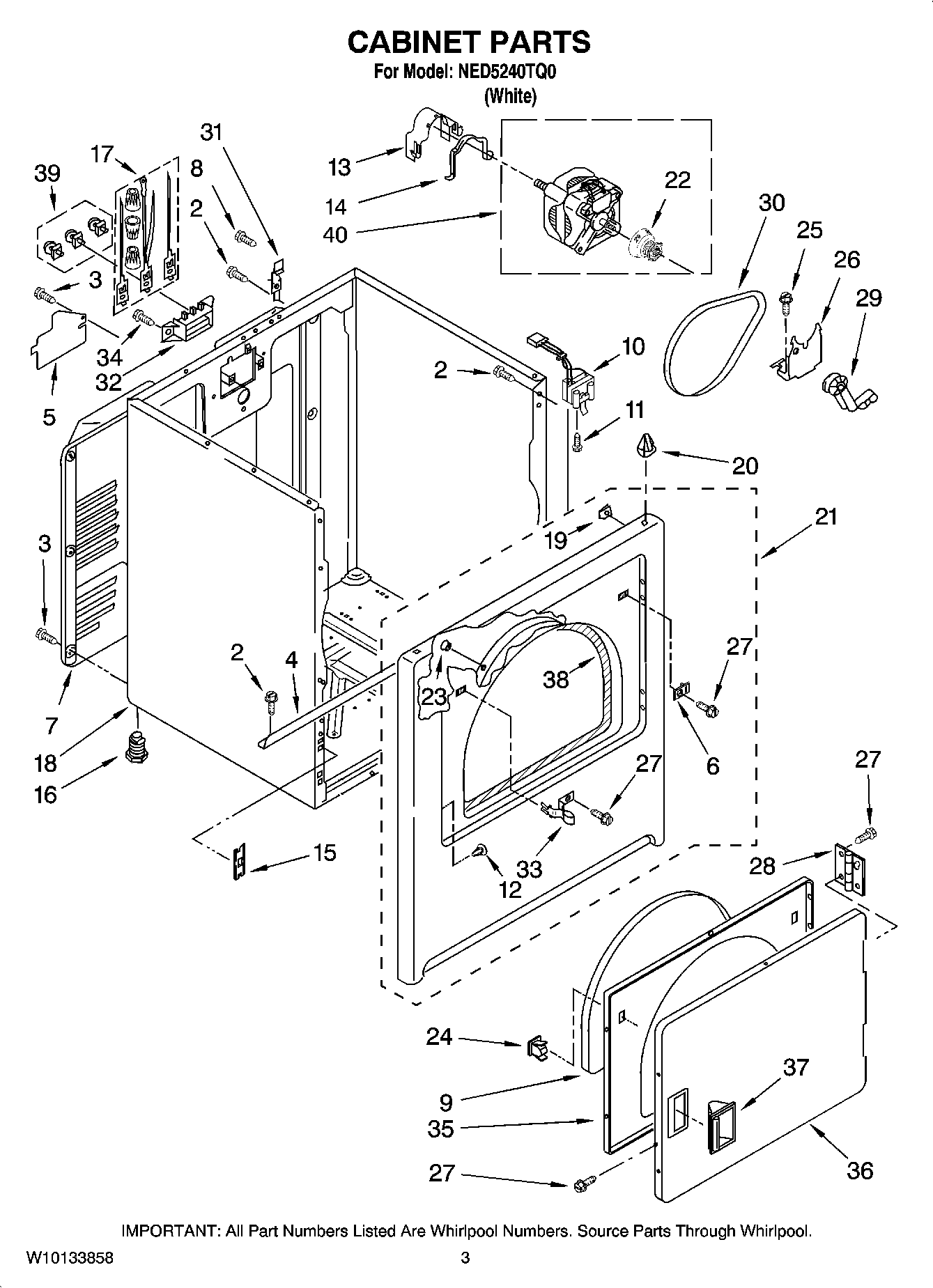

NED5240TQ0 02 – CABINET PARTS

Products

Position	Product
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	PLUG-STRIKE
7	MAY 3396805
8	Screw, 8-18 x 5/8 (External Ground)
9	MAY 3405246
10	MAY 3406109
11	SCREW
12	PLUG, HINGE HOLES
13	Clamp, Motor (With Shield)
14	MAY 660658
15	MAY 3394083
16	MAY 3392100
16	MAY 279810
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	Panel, Front (White)
22	Pulley, Motor
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	BOLT
26	MAY 348780
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	IDLER ASSEMBLY
30	MAY W10131364
31	Hinge, Top
32	MAY 3397659
33	Strike, Door
34	SCREW, 10-16 X 1/2
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	MAY 279393
40	MAY 8066206
