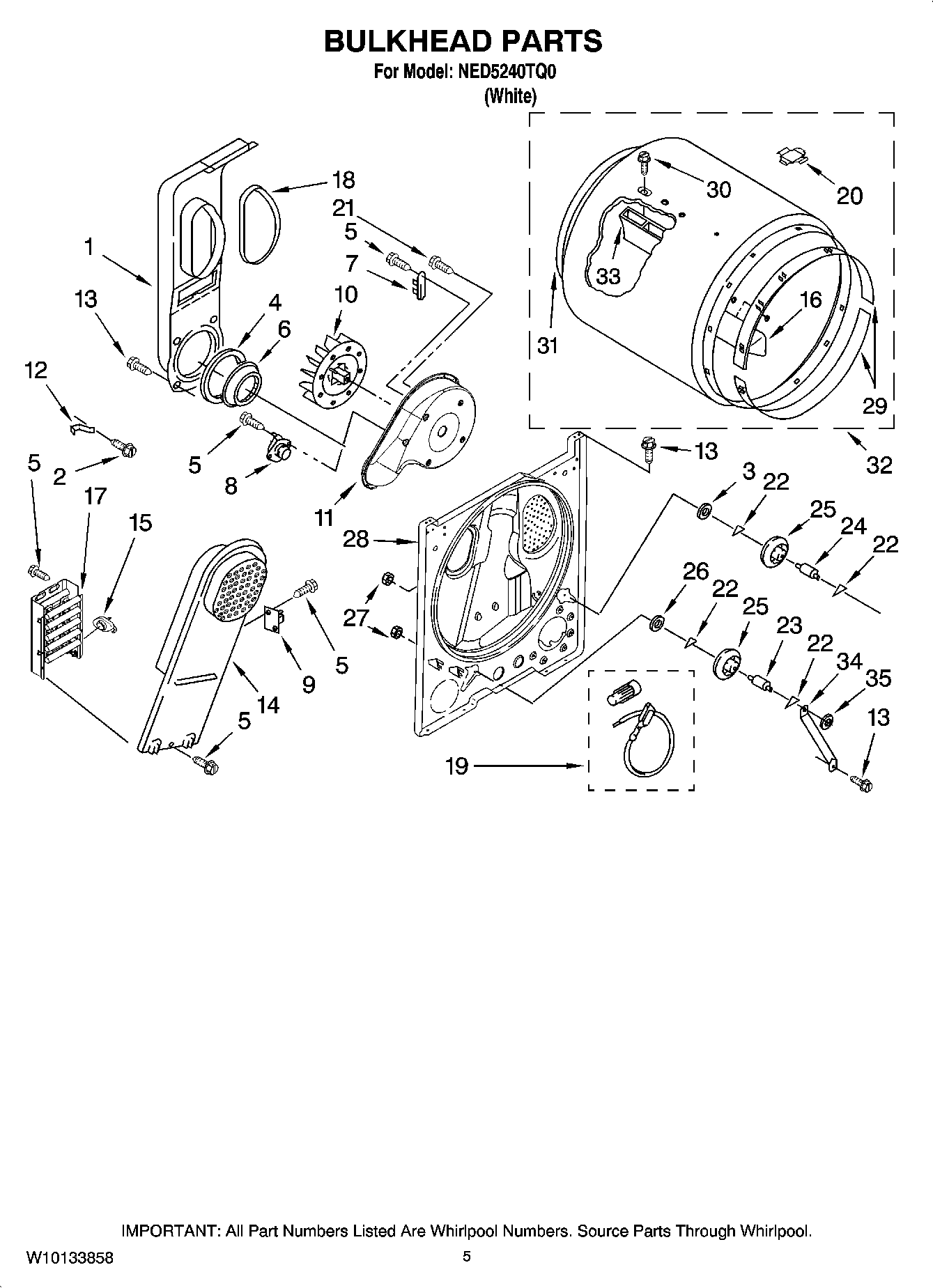

NED5240TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	ACCESSORY PARTS, KIT, DRYER REPAIR
	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
	MAY 3404351
	MAY 4392901
	MAY 4392899
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, BULK (1 QT. WHITE (UNCUT))
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 696302
7	Fuse, Thermal (91 C)
8	MAY 3387134
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577230
12	MAY 8066155
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	BAFFLE, DRUM (SHORT)
17	MAY 3403585
18	MAY 339956
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Plug, Drum Hole
21	SCREW
22	WASHER, TRI RING
23	MAY 3399506
24	MAY 3399507
25	MAY 3397590
26	WASHER
27	Nut, 3/8-16
28	MAY 3403491
29	Bearing, Ring
30	MAY W10109200
31	MAY 3406130
32	MAY 695587
33	BAFFLE, DRUM (LONG)
34	MAY 3976434
35	NUT, PUSH ON
