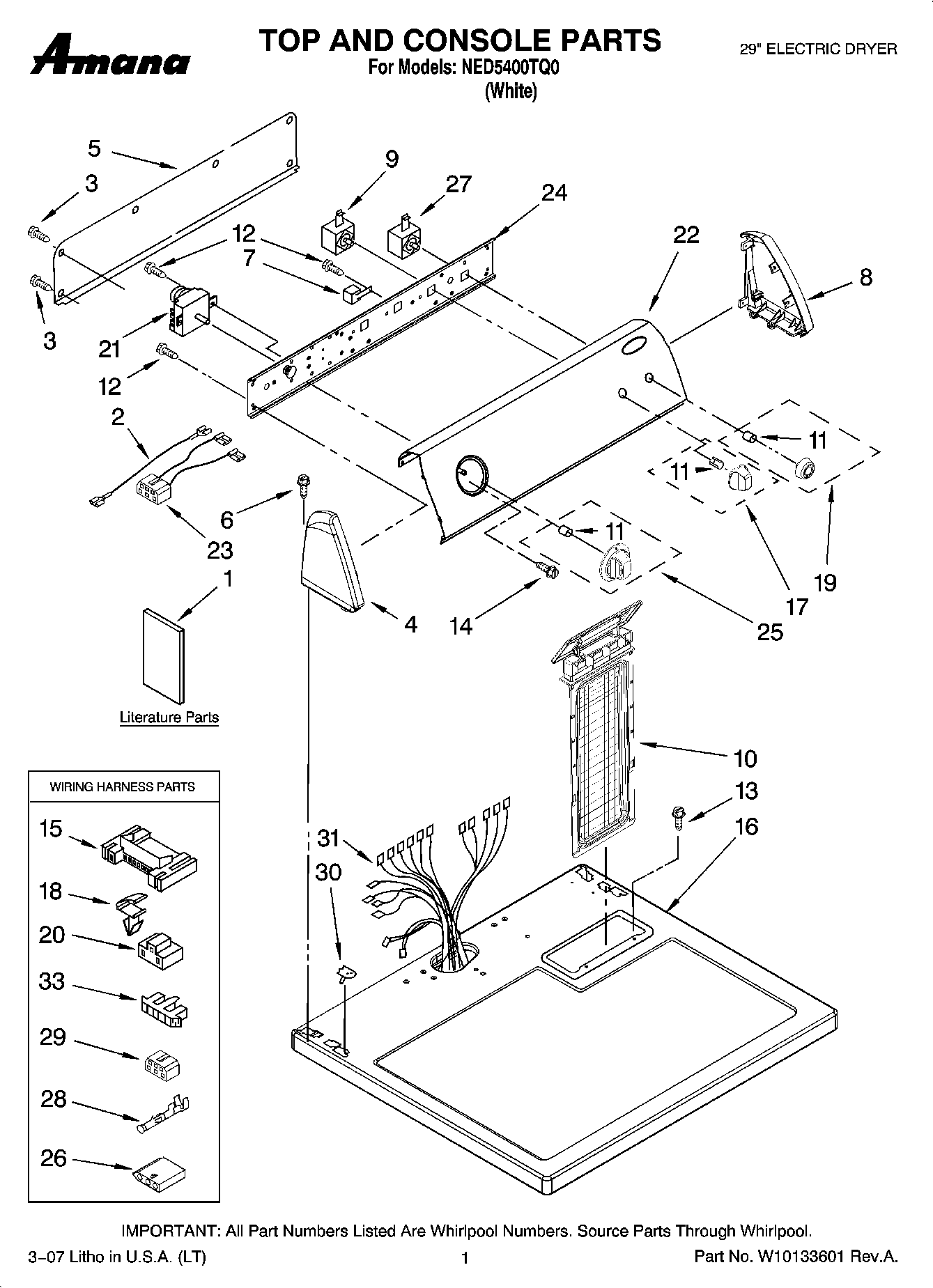

NED5400TQ0 01 – TOP AND CONSOLE PARTS

NED5400TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

NED5400TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10088771
1MAY 8576817
1MAY W10088970
1MAY W10089173
2Wire, Jumper (Black)
3Screw
4MAY 8271365
5MAY 8274261
6Screw, Console
7MAY 694419
8MAY 8271359
9Switch, Temperature
10Screen, Lint (White)
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY 8533951
15CONNECTOR (MOTOR)
16MAY 8557930
17Knob, Control (2) (White)
18CLIP, HARNESS
19MAY W10110050
20Connector (PTS) Relay
21MAY 3979617
22Panel, Control
23Wire, Jumper (Temperature)
24MAY 8271418
25Timer Knob, Assembly (White)
26MAY 3936144
27MAY 3398095
28Terminal
29Connector
30Nut, Push-In
31MAY 8576503
33Connector-Timer
