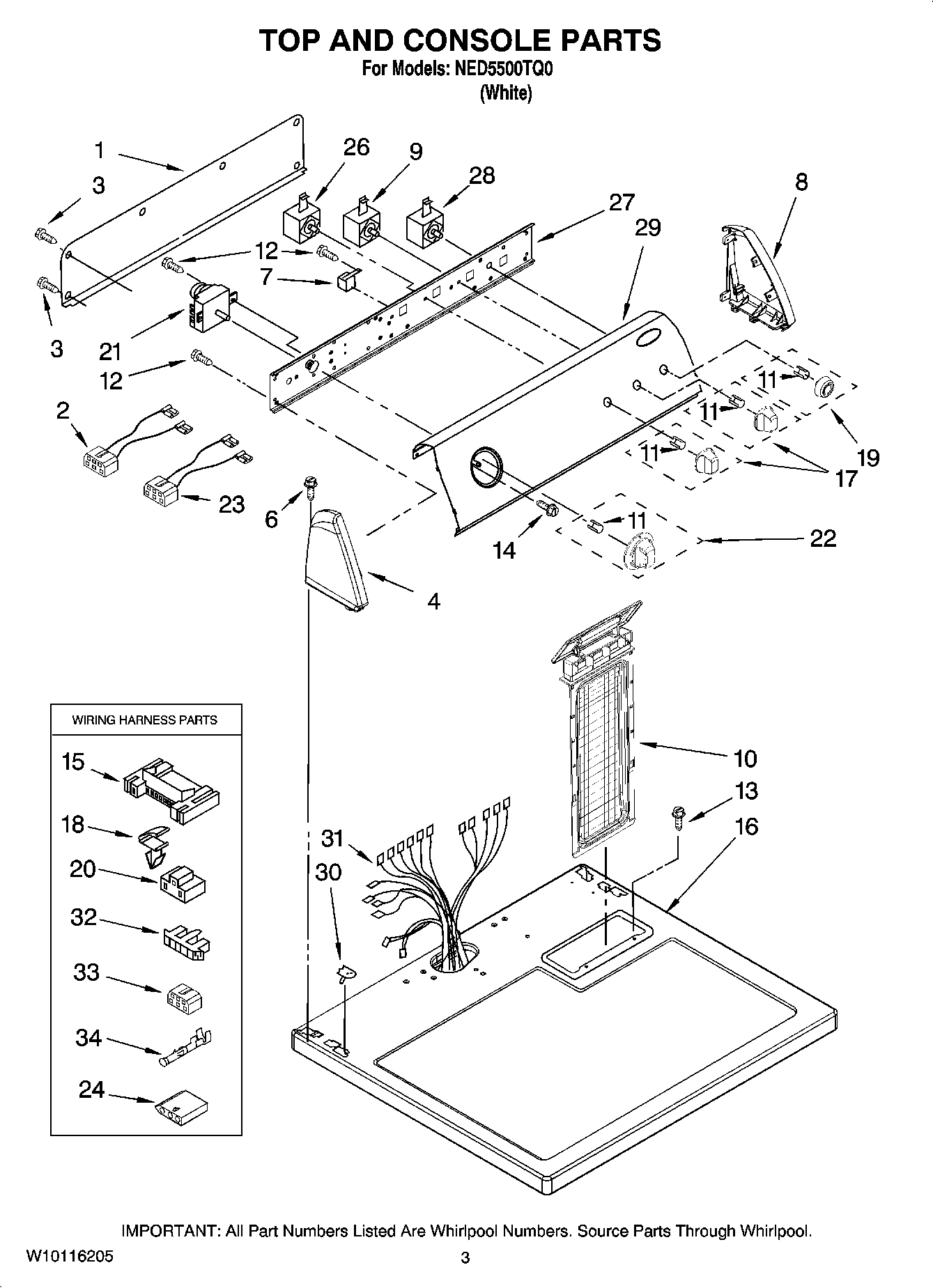

NED5500TQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8274261
2	MAY 3401695
3	Screw
4	MAY 8271365
6	Screw, Console
7	MAY 694419
8	MAY 8271359
9	Switch, Temperature
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8557930
17	Knob, Control (2) (White)
18	CLIP, HARNESS
19	Knob, Push-To-Start (White)
20	Connector (PTS) Relay
21	MAY 3979617
22	Timer Knob, Assembly (White)
23	Wire, Jumper (Temperature)
24	MAY 3936144
26	Switch, Wrinkle Guard
27	MAY 8271418
28	Switch, Push-To-Start
29	MAY W10086670
30	Nut, Push-In
31	MAY 8576503
32	Connector-Timer
33	Connector
34	Terminal
