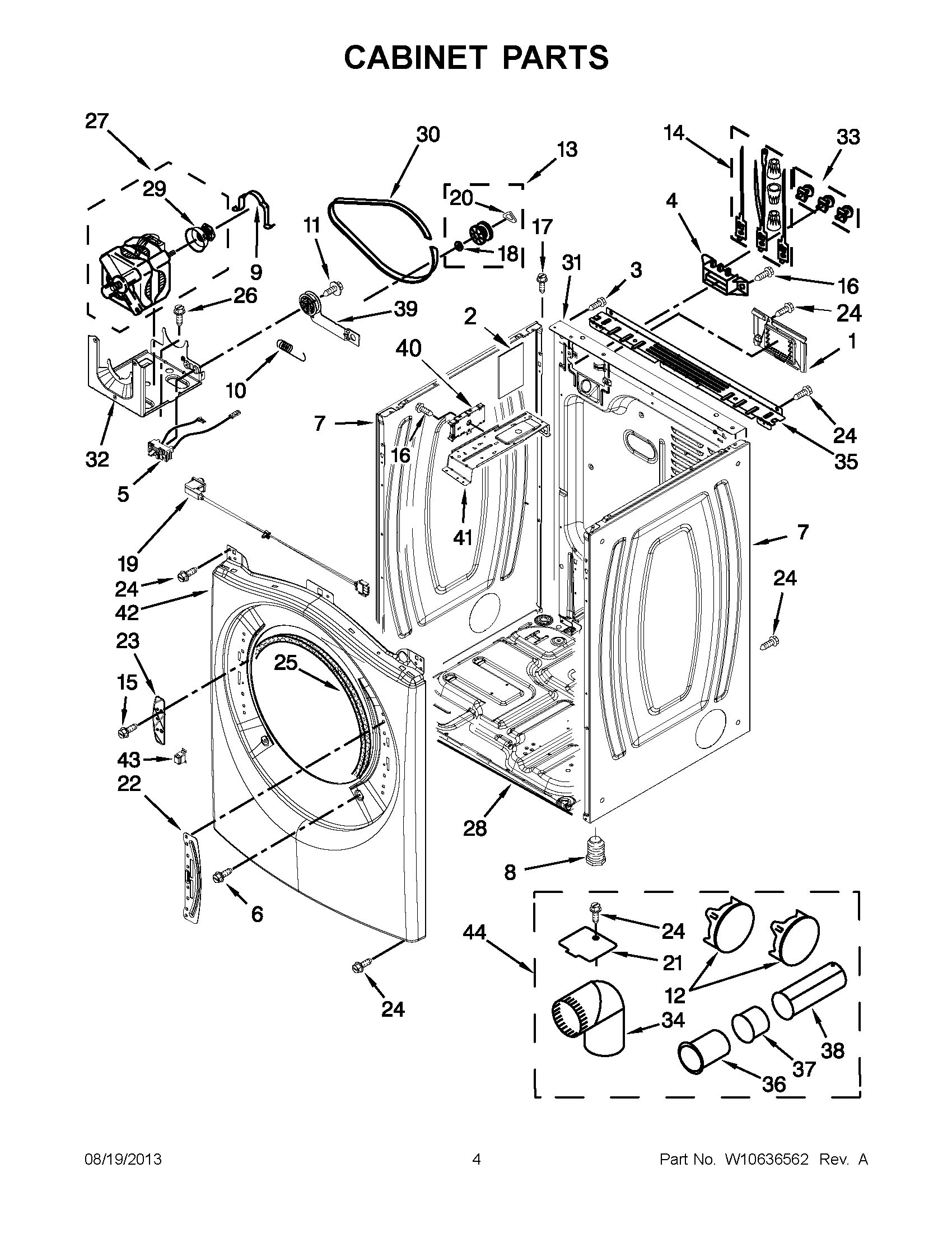

NED5700BW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	MAY W10504381
3	MAY 8533974
4	MAY 3397659
5	MAY W10411936
6	SCREW
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY W10288126
16	MAY 8533961
17	SCREW, 10-16 X 1/2
18	MAY W10121334
19	ASSEMBLY, DOOR SWITCH
20	WASHER, TRI RING
21	MAY W10354249
22	MAY W10208218
23	MAY W10208250
24	SCREW
25	MAY 3387242
26	SCREW
27	ASSEMBLY, MOTOR
28	MAY 8565046
29	MAY W10460106
30	MAY 3387610
31	MAY W10487431
32	MAY W10242878
33	MAY 279393
34	MAY W10416072
35	MAY W10208382
36	PIPE, EXHAUST (MEDIUM)
37	PIPE, EXHAUST (SHORT)
38	PIPE, EXHAUST (LONG)
39	ASSEMBLY, IDLER
40	MAY W10542001
41	MAY W10259611
42	FRONT PANEL (INCLUDES DOOR HINGE BRACKET) (WHITE)
43	MAY W10208401
44	KIT, 4-WAY VENT
