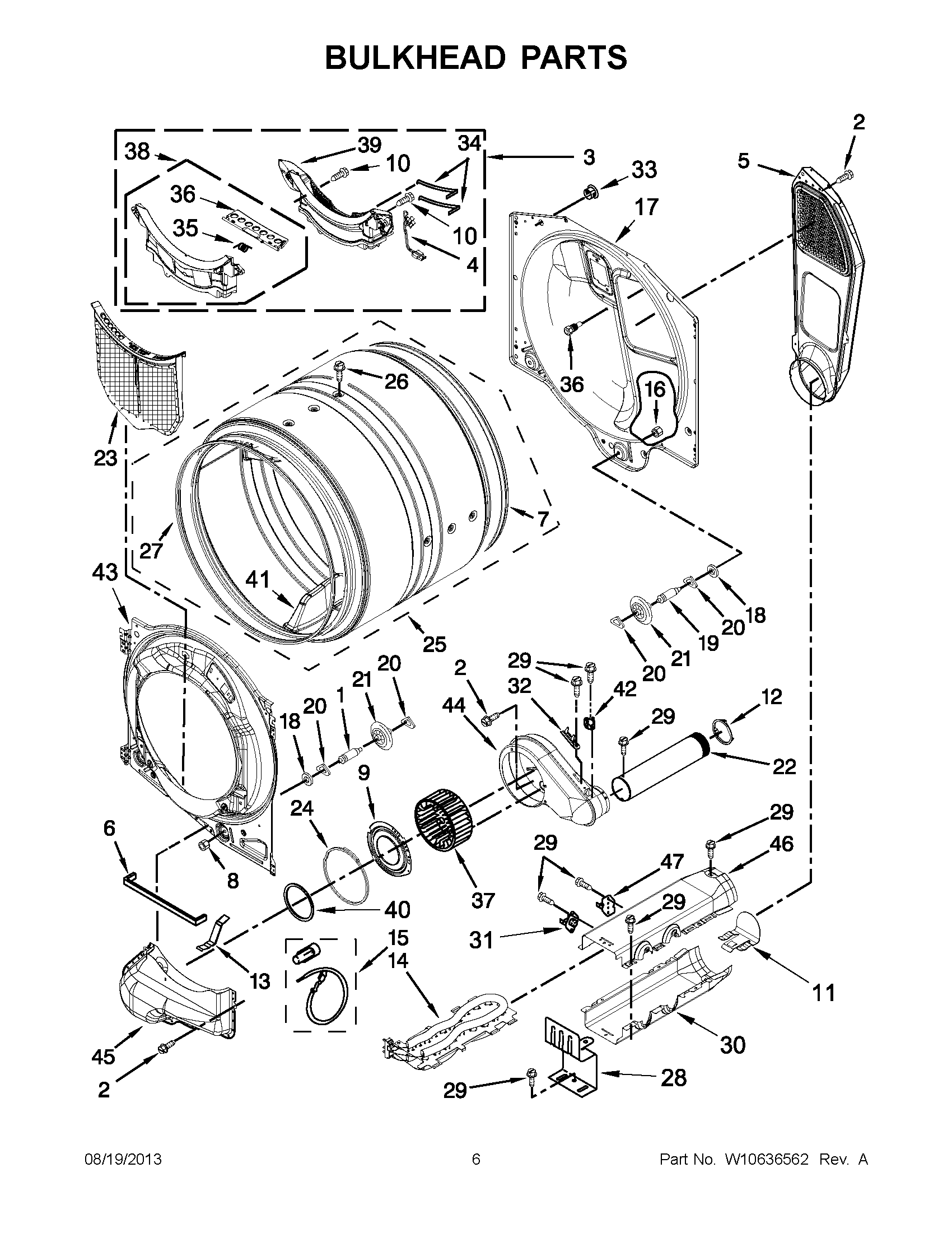

NED5700BW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	MAY W10219012
4	MAY W10298258
5	ASSEMBLY, AIR DUCT
6	MAY W10211950
7	MAY W10521118
8	NUT, HEX
9	MAY W10211901
10	SCREW
11	MAY 8544776
12	MAY W10344699
13	MAY W10414388
14	MAY 8544771
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY W10342188
23	MAY W10370972
24	SEAL, PLATE COVER
25	DRUM ASSEMBLY COMPLETE
26	MAY W10219342
27	MAY W10521122
28	MAY 8066099
29	Screw
30	MAY 8544770
31	THERMISTOR
32	Fuse, Thermal (91 C)
33	MAY 8529007
34	SENSOR, ELECTRODE
35	MAY W10219015
36	MAY W10219016
37	MAY W10211915
38	MAY W10219013
39	MAY W10211903
40	MAY W10211899
41	MAY W10416098
42	MAY 8557403
43	BULKHEAD, FRONT DOOR SCREEN
44	MAY W10211911
45	MAY W10211896
46	MAY 8544769
47	MAY 8318314
