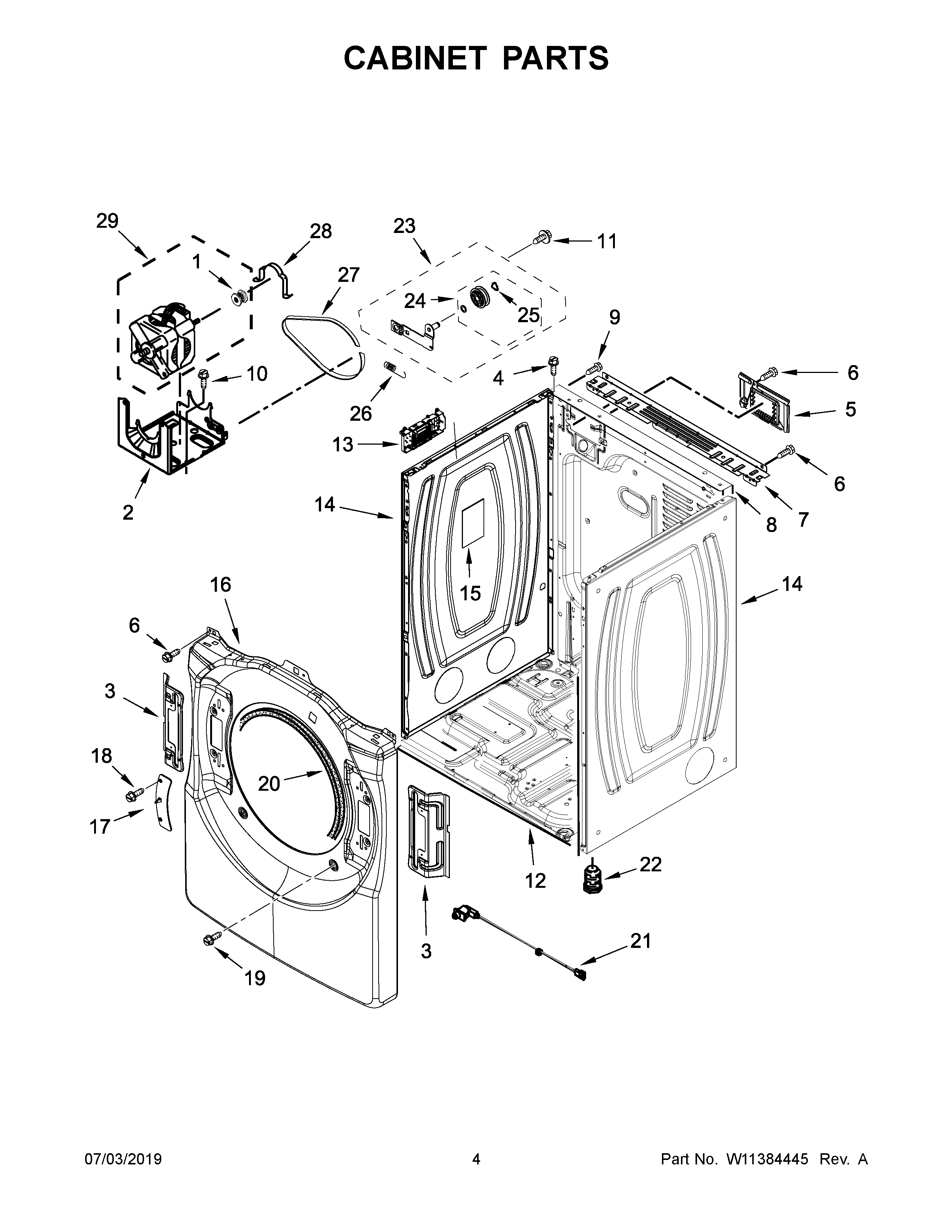

NED5800HW0 03 – CABINET PARTS

NED5800HW0 03 – CABINET PARTS

Written by

in

NED5800HW0 03 – CABINET PARTS

Products

PositionProduct
NIKIT, 4-WAY VENT
NIMAY 279810
1Pulley, Motor
2MAY W10242878
3MAY W11084215
4Screw
5MAY W10316167
6SCREW
7MAY W10208382
8MAY W10487431
9SCREW
10SCREW
11SCREW
12MAY 8565046
13MAY W11314889
14MAY W11177568
15MAY W10504381
16MAY W11045946
17MAY W11126752
18MAY W10288126
19SCREW
20MAY 3387242
21MAY W10569114
22MAY 3392100
23ASSEMBLY, IDLER
24MAY W10468057
25WASHER, TRI RING
26MAY W10446781
27MAY 3387610
28CLAMP, MOTOR MOUNT
29ASSEMBLY, MOTOR
