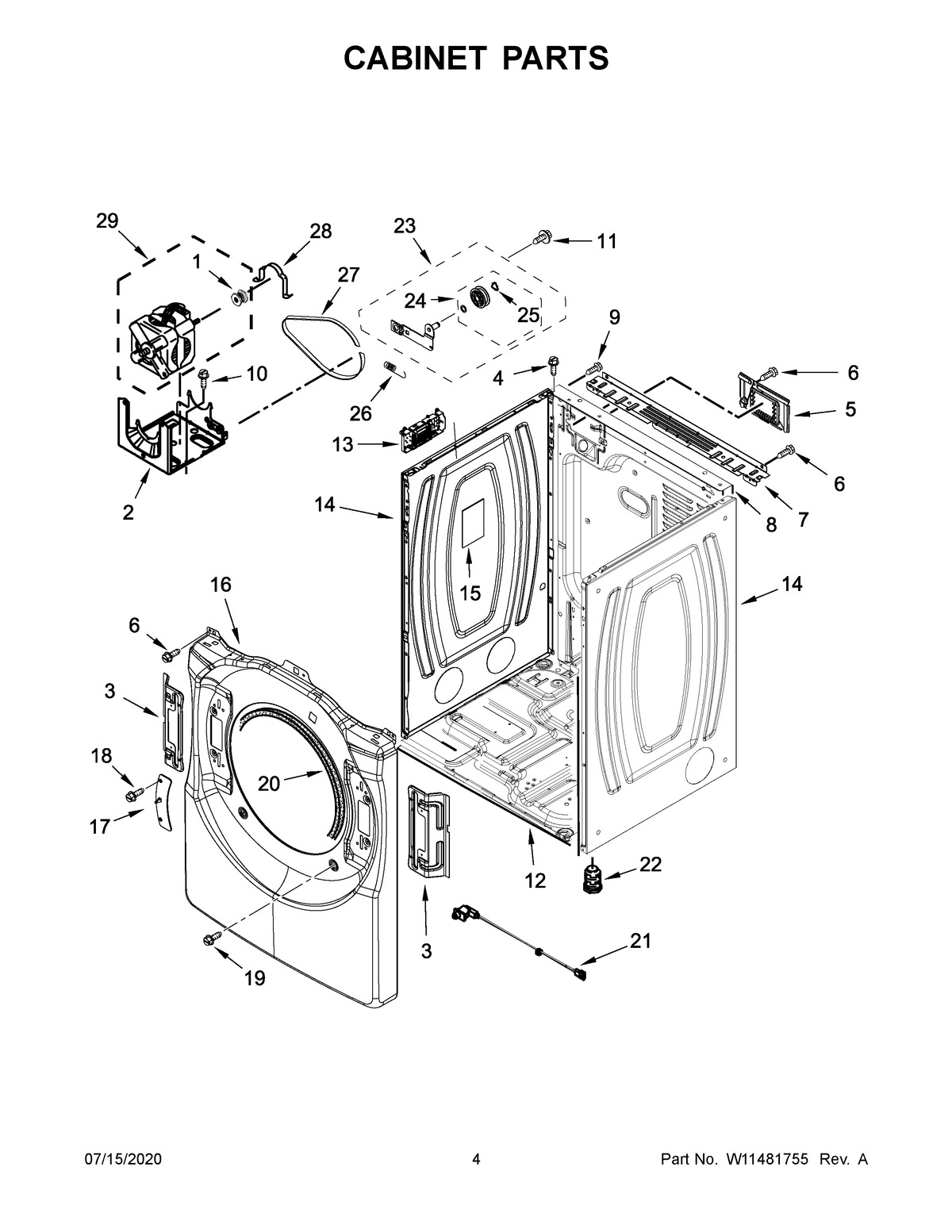

NED5800HW1 03 – CABINET PARTS

Products

Position	Product
NI	KIT, 4-WAY VENT
NI	MAY 279810
1	Pulley, Motor
2	BRACKET, MOTOR MOUNTING
3	MAY W11084215
4	Screw
5	COVER, TERMINAL BLOCK
6	SCREW
7	MAY W10208382
8	MAY W10487431
9	SCREW
10	SCREW
11	SCREW
12	MAY 8565046
13	MAY W11461215
14	MAY W11177568
15	MAY W10504381
16	MAY W11413344
17	MAY W11126752
18	MAY W10288126
19	SCREW
20	MAY 3387242
21	ASSEMBLY, DOOR SWITCH
22	MAY 3392100
23	ASSEMBLY, IDLER
24	MAY W10468057
25	WASHER, TRI RING
26	MAY W10446781
27	MAY 3387610
28	CLAMP, MOTOR MOUNT
29	ASSEMBLY, MOTOR
