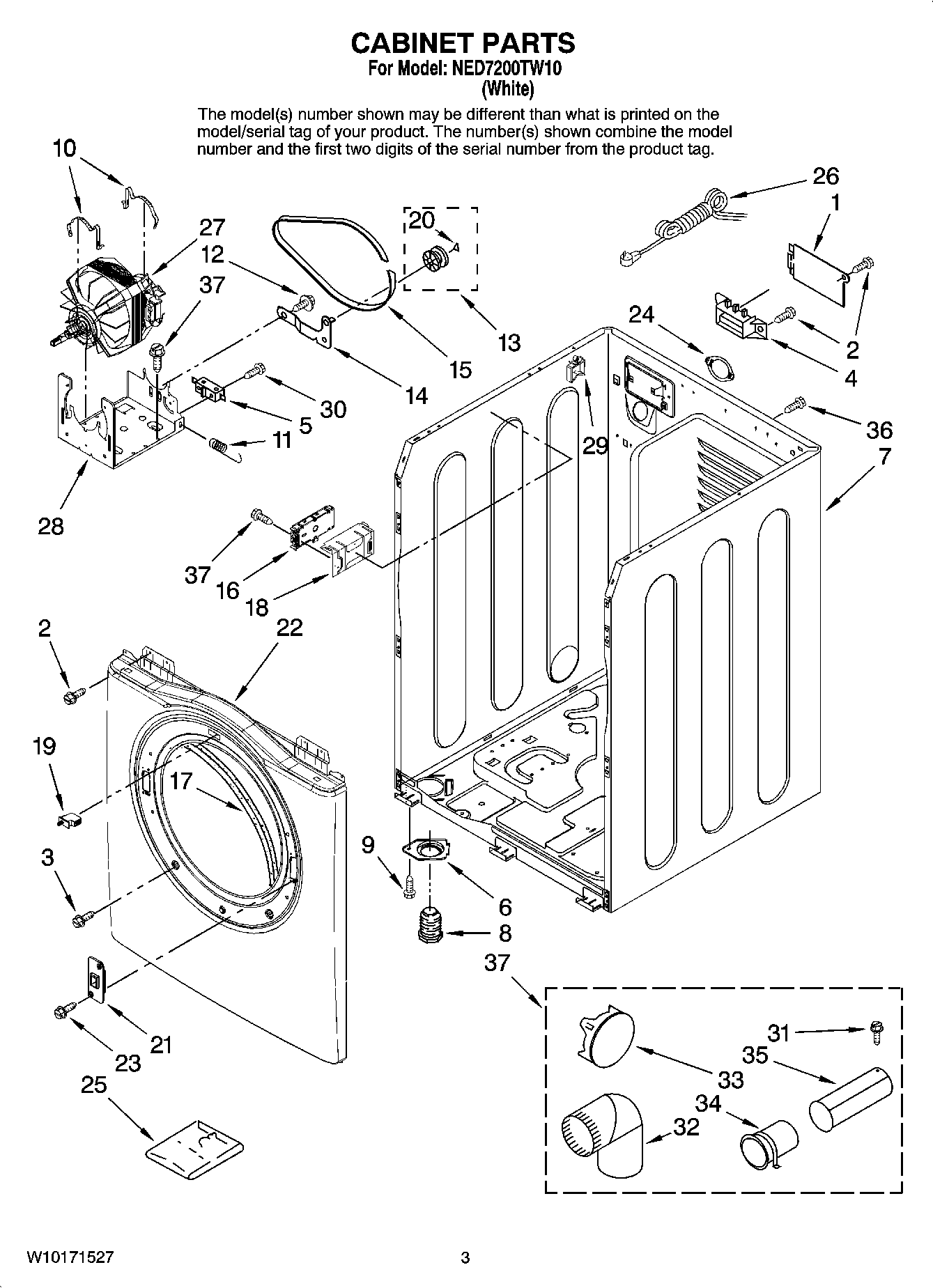

NED7200TW10 02 – CABINET PARTS

Products

Position	Product
1	MAY 35001157
2	Screw-Tapping (2)
3	MAY 6006-001006
4	279320 Whirlpool Dryer Rear Terminal Block Kit
5	MAY 35001082
6	MAY 35001156
7	Cabinet
8	Foot, Dryer
9	6002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
10	MAY 35001081
11	MAY 35001278
12	Retainer, Idler
13	DC93-00634A Samsung Dryer Idler Pulley Assembly
14	Bracket, Idler
15	WPW10205415 Whirlpool Drum Belt
16	MAY 35001153
17	MAY W10177398
18	MAY 35001168
19	MAY 35001125
20	MAY 35001084
21	MAY 35001112
22	MAY W10177396
23	MAY 6002-00213
24	Strain-Relief Power Cord
25	Kit Stack Assembly
26	Power-Cord
27	WP35001080 Whirlpool Dryer Motor
28	MAY 35001106
29	Clip, Harness
30	SCREW-TAPPING
31	WPW10346892 Whirlpool Screw
32	MAY Y059131
33	Plug-Multivent
34	Duct, Exhaust (A)
35	Duct, Exhaust (B)
37	MAY 12002641
