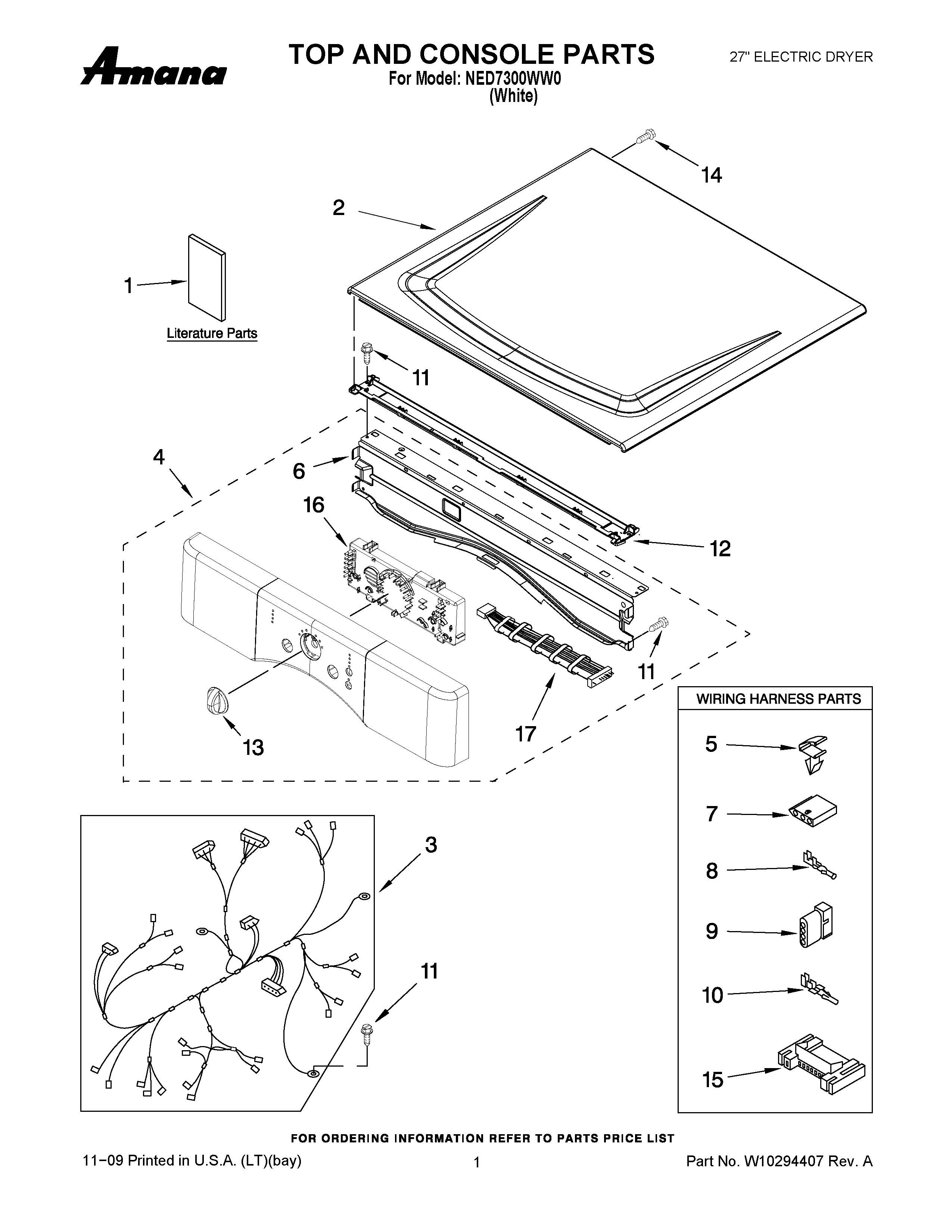

NED7300WW0 01 – TOP AND CONSOLE PARTS

NED7300WW0 01 – TOP AND CONSOLE PARTS

Written by

in

NED7300WW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10238795
1MAY W10240875
1INSTRUCTIONS, INSTALLATION
2Top
3MAY W10251442
4MAY W10215746
5CLIP, HARNESS
6MAY 8565237
7Connector Sensor
8Terminal
9MAY 3936144
10Terminal
11SCREW
12CHANEL, WATER
13ASSEMBLY, KNOB
14SCREW, TOP
15CONNECTOR (MOTOR)
16ASSEMBLY, USER INTERFACE
17MAY W10259049
