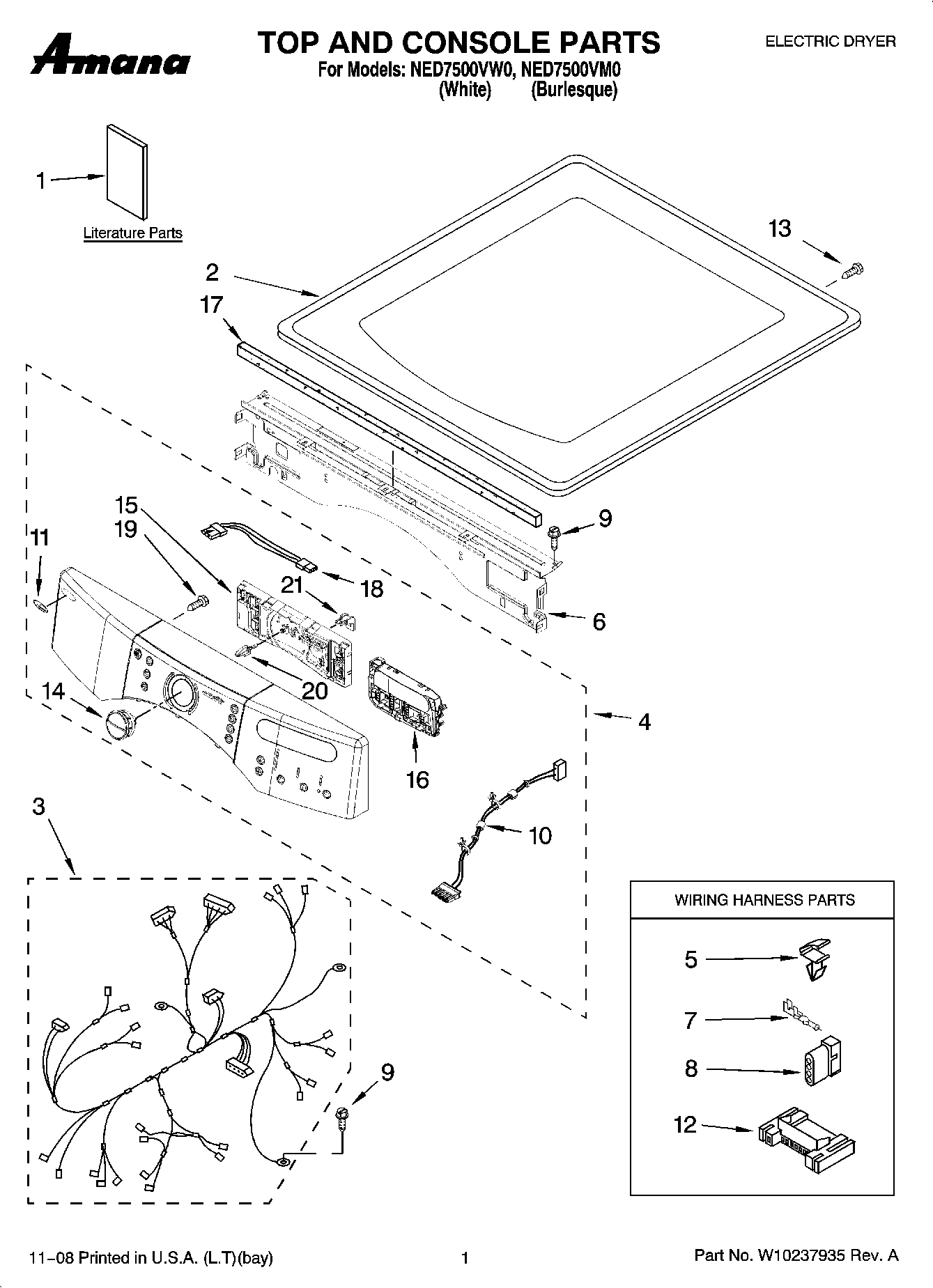

NED7500VM0 01 – TOP AND CONSOLE PARTSadmin2025-04-26T11:40:32+00:00NED7500VM0 01 – TOP AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10216186 |
| 1 | MAY W10216188 |
| 1 | MAY W10216189 |
| 1 | MAY W10134980 |
| 2 | MAY W10110661 |
| 2 | MAY 3980634 |
| 3 | MAY W10111012 |
| 4 | MAY W10216298 |
| 4 | PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD & ILLUS. 13,20,21, 22,23,24,25,26,28) |
| 5 | CLIP, HARNESS |
| 6 | BRACKET, CONSOLE (INCLUDE, ITEM. 12 ) |
| 7 | Terminal |
| 8 | MAY 3936144 |
| 9 | SCREW |
| 10 | MAY W10111010 |
| 11 | Medallion |
| 12 | CONNECTOR (MOTOR) |
| 13 | Screw, 8-32 x 1/32 |
| 14 | MAY W10216296 |
| 14 | KNOB, ASSEMBLY |
| 15 | USER-INTERFACE (CENTER) (INCLUDES: ITEM. 25 ) |
| 16 | MAY W10216284 |
| 17 | Seal, Foam Console Bracket |
| 18 | MAY W10071240 |
| 19 | SCREW, TOP |
| 20 | MAY W10023220 |
| 21 | Clip, Harness |
