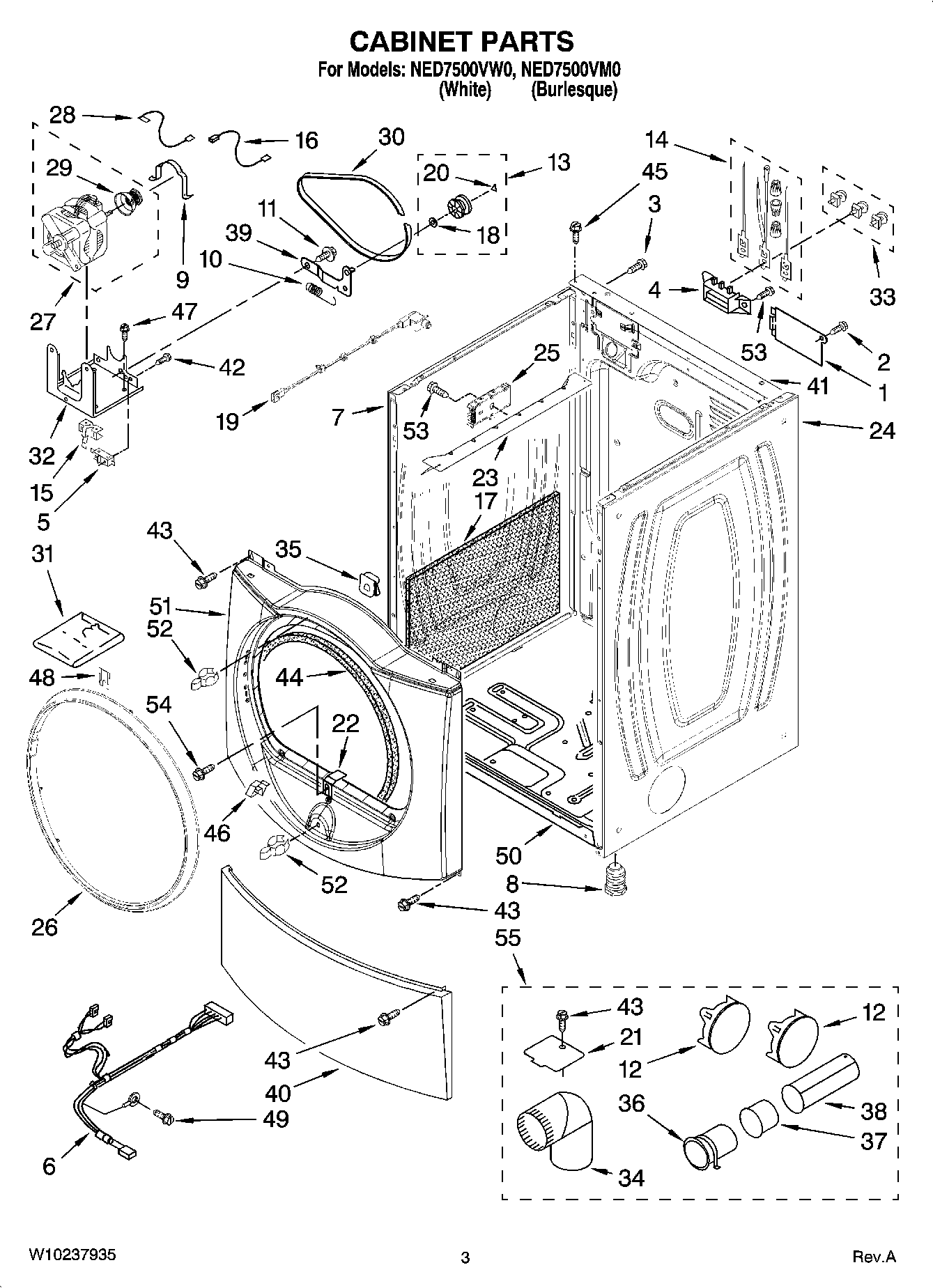

NED7500VM0 02 – CABINET PARTSadmin2025-04-26T11:39:20+00:00NED7500VM0 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8576583 |
| 2 | Screw, 8-18 x 3/8 |
| 3 | MAY 8533974 |
| 4 | MAY 3397659 |
| 5 | MAY W10167612 |
| 6 | MAY W10181463 |
| 7 | Panel, Side (L.H.) (White) |
| 7 | MAY W10192442 |
| 8 | MAY 279810 |
| 8 | MAY 3392100 |
| 9 | MAY 660658 |
| 10 | MAY 3387374 |
| 11 | SCREW |
| 12 | MAY W10110871 |
| 12 | MAY 697750 |
| 13 | ASSEMBLY, PULLEY |
| 14 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 15 | MAY 8066120 |
| 16 | MAY 3394081 |
| 17 | MAY W10128772 |
| 18 | MAY W10121334 |
| 19 | SWITCH, ASSEMBLY DOOR |
| 20 | WASHER, TRI RING |
| 21 | MAY 8066115 |
| 22 | MAY 8529053 |
| 23 | Bracket, Control |
| 24 | MAY W10192453 |
| 24 | Panel, Side (R.H.) (White) |
| 25 | MAY W10182366 |
| 26 | ASSEMBLY, TRIM-RING (INCLUDE, ITEM. 48 ) |
| 27 | Motor Assembly 60 HZ. |
| 28 | Wire, Jumper (Broken Belt Switch) |
| 29 | Pulley 60 HZ. |
| 30 | MAY 3387610 |
| 31 | MAY 8541503 |
| 32 | MAY 3387118 |
| 33 | MAY 279393 |
| 34 | MAY 49026 |
| 35 | Clip, S-Type (3) |
| 36 | PIPE, EXHAUST (MEDIUM) |
| 37 | MAY 8563750 |
| 38 | PIPE, EXHAUST (LONG) |
| 39 | MAY 3388674 |
| 40 | Panel, Toe (White) |
| 40 | MAY W10116276 |
| 41 | MAY W10180481 |
| 42 | Screw, 6-20 x 1-1/16 |
| 43 | SCREW |
| 44 | MAY 3387242 |
| 45 | SCREW, 10-16 X 1/2 |
| 46 | MAY 8519459 |
| 47 | SCREW |
| 48 | Trim-Clip Metal |
| 49 | MAY 359625 |
| 50 | MAY 8519207 |
| 51 | MAY W10180428 |
| 51 | FRONT PANEL (INCLUDES ILLUS. 44) |
| 52 | MAY 696144 |
| 53 | SCREW,8-18 X 3/8 |
| 54 | SCREW |
| 55 | MAY 279818 |
| 55 | MAY 280189 |
