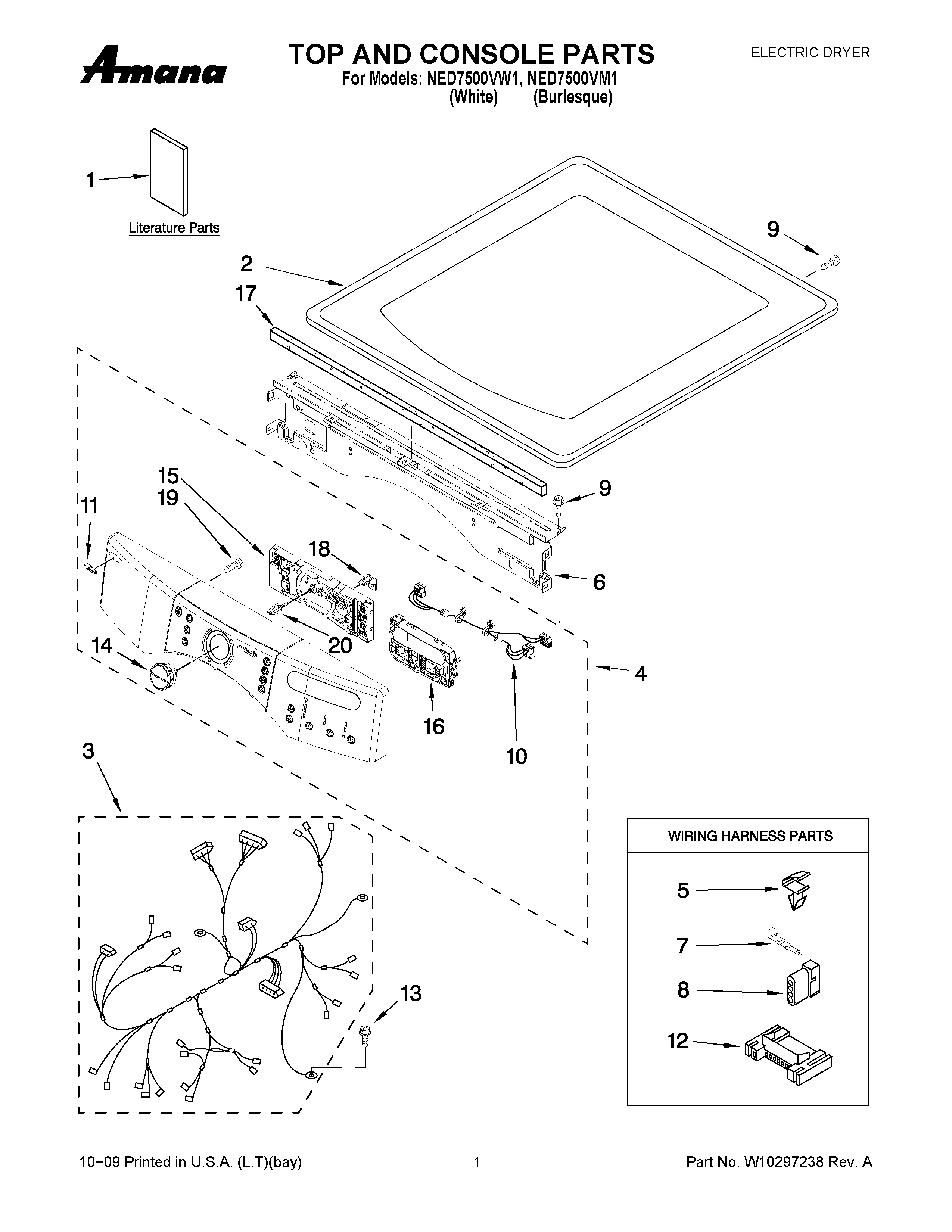

NED7500VM1 01 – TOP AND CONSOLE PARTS

NED7500VM1 01 – TOP AND CONSOLE PARTS

Written by

in

NED7500VM1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10258382
1INSTALLATION, DIAGNOSTIC GUIDE
1MAY W10239303
2MAY W10110661
2MAY 3980634
3MAY W10111063
4MAY W10246705
4PANEL, CONSOLE (INCLUDES BUTTONS, CONTROL BOARD & ITEM. 11 )
5CLIP, HARNESS
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7Terminal
8MAY 3936144
9SCREW
10MAY W10242905
11Medallion
12CONNECTOR (MOTOR)
13Screw
14MAY W10216296
14KNOB, ASSEMBLY
15USER-INTERFACE CENTER (INCLUDE, ITEM. 5 )
16MAY W10280652
17Seal, Foam Console Bracket
18Clip, Harness
19SCREW, TOP
20MAY W10023220
